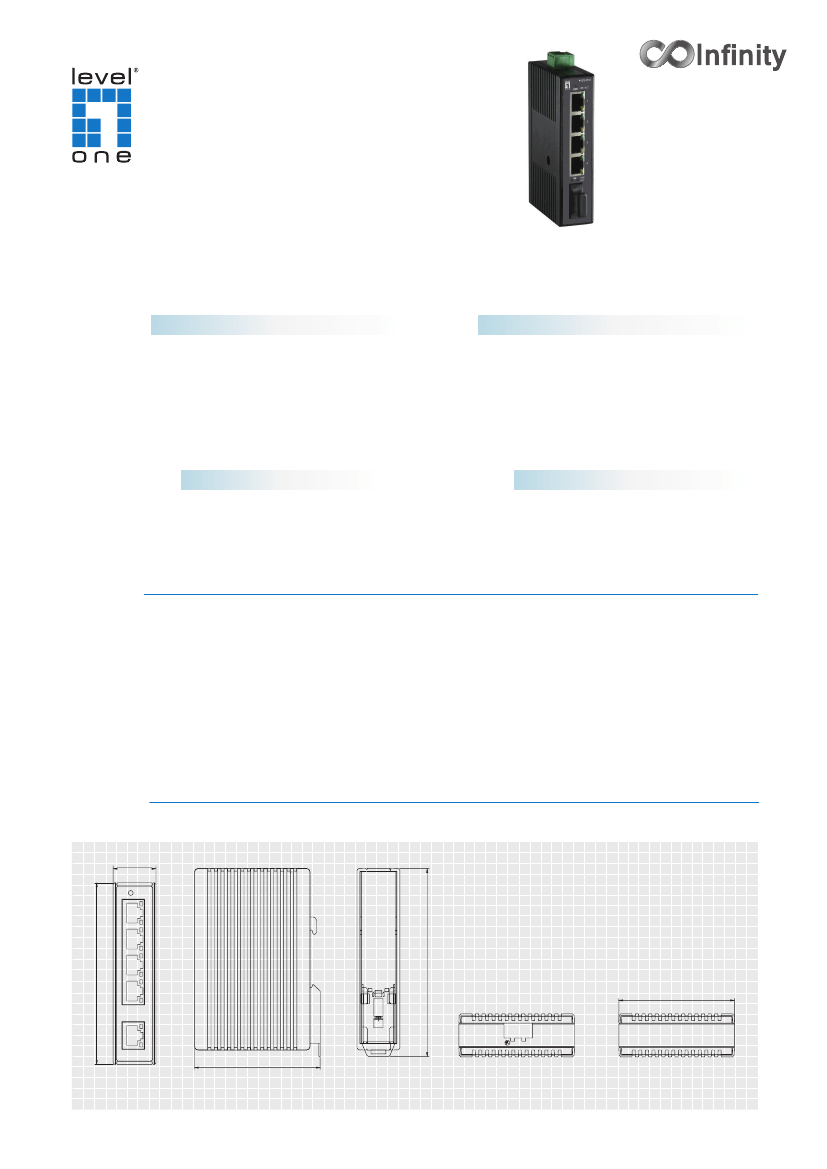

IES-0510
Overview
4 FE + 1 MM SC Unmanaged Switch -10 to 60, DIN-rail
Safety
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of
10/100Base-TX Ethernet plus 1 port 100FX Multimode SC ber to enable
high speed network at mission-critical environment. This device is
designed to be mounted on an industry standard DIN-rail, plus the
clearly visible status LEDs provide simple monitoring of port link activity.
With UL60950 standard complied that gives basic protection against
electric shock, re spread from within, ignition and burning, current
circuit hazardous under normal and fault condition. As well as set of
compliances to meet many EMC, isolation, vibration and shock
standards.
Cost E ective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that o ers optimal suitability for industrial applications at
low cost while maintaining all components built to withstand harsh
environment applications without compromise reliability and stability.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of instant
connectivity with no setup or con gure required, truly plug and play.
Features
- Provides 4-port 10/100BASE-TX plus 1-port 100BASE-FX
- The ber port is available with SC with a ber connection that
can reach up to 120Km (74.4miles)
- -10°C to 60°C (14°F to 140°F) and is tested for functional operation
@-20°C to 70°C (-4°F to 158°F)
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 12 to 48VDC Power inputs
- Complies with IEC61000-6-2 EMC Generic standard immunity for
Industrial environment
Diagrams
Unit: mm
26
110
113.64
70
PW
R
GN
D
76.5
Front
Side
Back
Top
Buttom
Technology
Standards
Environment
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/
100BASE-FX, IEEE802.3x, IEEE802.3az EEE(Energy
Efficient Ethernet), IEEE802.1p QoS with two priority
queues
14,880pps for 10Mbps
148,810pps for 100Mbps
384K bits
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex
flow control
2048 MAC addresses
Safety
Operating
Temperature
Storage
Temperature
Ambient
Relative
Humidity
MTBF
-10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)
-25°C to 85°C (-13°F to 185°F)
Forward and
Filtering Rate
Packet Buffer
Memory
Processing
Type
5% to 95% (non-condensing)
122.27 years
Regulatory Approvals
ISO
Manufactured in an ISO9001 facility
Address Table
Size
UL60950-1
Power
Input
Power
Consumption
Overload
Current
Protection
Reverse
Polarity
Protection
Input Voltage: 12 to 48VDC (Terminal Block)
4.3W Max. 0.3A @ 12VDC, 0.15A @ 24VDC,
0.07A @ 48VDC
Present
EMI
FCC Part 15, Class A, VCCI
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 6KV; Criteria B
Air: + / - 8KV; Criteria B
- EN61000-4-3 (Radiated RFI Standards)
10V/m, 80 to 1000MHz; 80% AM Criteria A
3V/m, 1400 to 2000MHz; 80% AM Criteria A
1V/m, 2000 to 3000MHz; 80% AM Criteria A
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4.4KV; Criteria B
D.C. Power Ports: + / - 4.4KV; Criteria B
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 1KV; Line-to-Line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-Earth; Criteria B
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM Criteria A
D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
Criteria A
- EN61000-4-8 (Magnetic Field Standards)
30A/m @ 50, 60Hz; Criteria A
IEC60068-2-6 Fc (Vibration Resistance)
5g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall)
1M (3.281ft.)
EMS
Present
Mechanical
Casing
Dimensions
Weight
Installation
Plastic case
IP30
26mm (W) x 70mm (D) x 110mm (H)
(1.02" (W) x 2.76" (D) x 4.33" (H))
0.2Kg (0.44lb.)
DIN-Rail (Top hat type 35mm)
Interface
Ethernet Port
LED Indicators
10/100BASE-TX: 5, 4 or 1 ports
100BASE-FX: 0 or 1 ports
Per Unit: Power Status (Power 1)
Per Port: 10/100TX, 100FX: Link/Activity (Green),
Speed (Yellow)
Environmental
Test
Compliance
Order Information
IES-0510
-
4 FE + 1 MM SC Unmanaged Switch -10 to 60, DIN-rail
Package Contents
IES-0510
Quick Installation Guide
