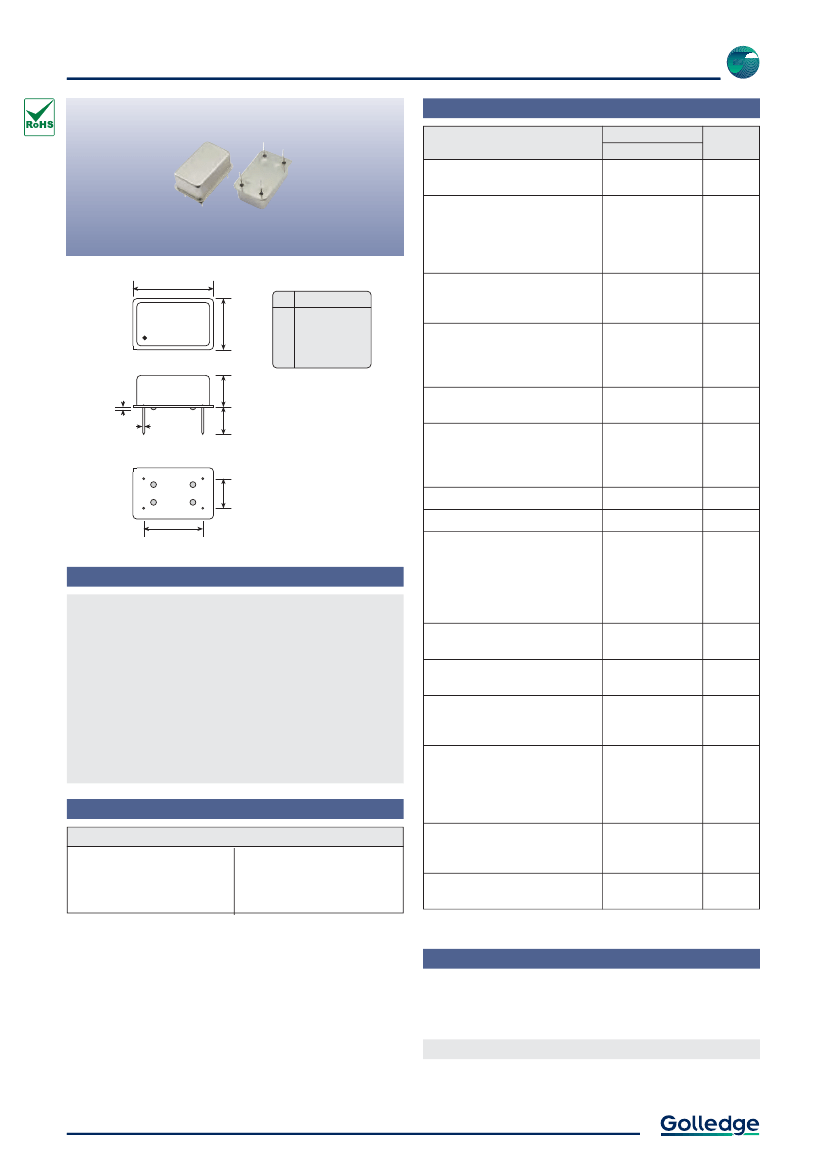

12V OCXO Sine Output
Specifications
2011/65/EU
MCOCXOS
Parameters
Frequency range:
10.0kHz ~ 54.0MHz
Frequency stability:
±0.5ppm max first year
±3.0ppm max in 10 years
±0.1ppm max vs V
DD
±10ppb max vs load ±10%
Product
MCOCXOS
10
30
specify
A
B
C
Option
Codes
20.14
±0.08
PIN
12.52
±0.08
1
7
8
14
7.80
±0.20
6.35
±0.50
CONNECTION
Freq adjustment
or Ground
Short term stability:
5x10
-10
,
τ
0.1 to 30s
5x10
-11
typ at 1s
Temperature stability:
±0.05ppm max, 0 to +60°C
±0.1ppm max, -20 to +70°C
±0.2ppm max, -40 to +85°C
Storage temperature range:
-55 to +125°C
Output waveform:
Clipped sine, 1V p-p min
Harmonics
-10dBc
Spurii < -70dBc
Ground
Output
Supply
0.80
0.46Ø
1
14
7
7.62
8
Test load:
Start up time:
1 kΩ // 5pF (±10%)
5ms max
15.24
Features
Compact 14-pin DIL package (SMD optional)
12.0V supply voltage
Sinewave output
Very fast warmup
Low power consumption
Wide temperature range available
Frequency adjustment:
±3.0ppm min
Control voltage 0.5~5.0V, pin 1
Variable resistor 0~10kΩ, pins 1 to 7
None (int accuracy ±1.0ppm)
None (int accuracy ±0.5ppm)
Supply voltage (V
DD
):
+12.0V (±0.5V)
V5
R1
A
B
Input current:
50mA max @ +25°C
80mA max @ -20°C
Warm up time (secs):
current 250mA max @ 25°C
to within ±0.1ppm @ 25°C
Phase noise (typ @ 10MHz):
-100dBc/Hz
@ 10Hz
-130dBc/Hz
@ 100Hz
-140dBc/Hz
@ 1kHz
-145dBc/Hz
@ 10kHz
Shock & vibration:
5,000G, 0.3ms ½-sine
10.0 ~ 2,000Hz, 20G
Package:
Through hole 14 pin DIL
SMD options 1 or 2
Standard Frequencies
Frequencies in MHz
10.00000
12.00000
12.80000
14.74600
16.00000
20.00000
26.00000
40.00000
52.00000
54.00000
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + option codes + frequency
eg:
MCOCXOS/AR1 12.80MHz
0.05ppm 0~60°C
MCOCXOS/BV5 19.44MHz
0.1ppm -20~70°C
Option code X (eg MCOCXOS/X) denotes a custom spec.
