1N4565 thru 1N4584A-1 DO-35
6.4 Volt Temperature Compensated Zener
Reference Diodes
SCOTTSDALE DIVISION
DESCRIPTION
The popular 1N4565 thru 1N4584A-1 series of Zero-TC Reference Diodes
provides a selection of both 6.4 V nominal voltages and temperature
coefficients to as low as 0.0005%/
o
C for minimal voltage change with
temperature. Four different operating currents are available for selection at
0.5 mA, 1.0 mA, 2.00 mA, and 4.00 mA. These glass axial-leaded DO-35
reference diodes are optionally available with an internal-metallurgical-bond
by adding a “-1” suffix. This same “-1” bonded Zener package construction
is also available in JAN, JANTX, and JANTXV military qualifications.
Microsemi also offers numerous other Zener Reference Diode products for a
variety of other voltages up to 200 V.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
WWW .
Microsemi
.C
OM
DO-35
(DO-204AH)
FEATURES
•
•
•
•
JEDEC registered 1N4565 thru 1N4584 series
Internal metallurgical bond option available by
adding a “-1” suffix
Zener reference voltage of 6.4 V +/- 5% with tighter
tolerance available at lower voltage
1N4565 thru 1N4584 also have qualification to MIL-
PRF-19500/452 by adding the JAN, JANTX, or
JANTXV prefixes to part numbers a well as the “-1”
suffix; e.g. JANTX1N4574A-1, etc.
Military surface mount equivalents also available in
DO-213AA by adding UR-1 suffix and the JAN,
JANTX, and JANTXV prefix, e.g.
JANTX1N4569AUR-1 (see separate data sheet)
Also available in DO-7 package including military
qualifications up to JANS (see separate data sheet)
JANS equivalent available in DO-35 via SCD
APPLICATIONS / BENEFITS
•
Provides minimal voltage changes over a broad
temperature range for instrumentation and other
circuit designs requiring a voltage reference
•
Temperature coefficient selections available from
0.01%/ºC to 0.0005%/ºC
•
Tight reference voltage tolerances available with
nominal value centered at 6.2 V by adding tolerance
1%, 2%, 3%, etc. after the part number for
identification, e.g. 1N4569-2%, 1N4579A-1%,
1N4574A-1-1%, etc.
•
Flexible axial-leaded mounting terminals
•
Nonsensitive to ESD per MIL-STD-750 Method 1020
•
Typical low capacitance of 100 pF or less
•
•
•
MAXIMUM RATINGS
•
Operating Temperatures: -65
o
C to +175
o
C
•
Storage Temperatures: -65
o
C to +175
o
C
•
DC Power Dissipation: 500 mW @ T
L
= 25
o
C with
maximum current I
ZM
70 mA. NOTE: For optimum
voltage-temperature stability, the operating test
current (I
ZT
) should be as specified in the Electrical
Characteristics Table (power less than 30 mW)
•
Solder Temperatures: 260
o
C for 10 s (max)
MECHANICAL AND PACKAGING
•
CASE: Hermetically sealed glass case. DO-35
(DO-204AH) package
•
TERMINALS: Leads, tin-lead plated solderable per
MIL-STD-750, Method 2026
•
MARKING: Part number and cathode band
•
POLARITY: Reference diode to be operated with
the banded end positive with respect to the
opposite end
•
TAPE & REEL option: Standard per EIA-296 (add
“TR” suffix to part number)
•
WEIGHT: 0.2 grams.
•

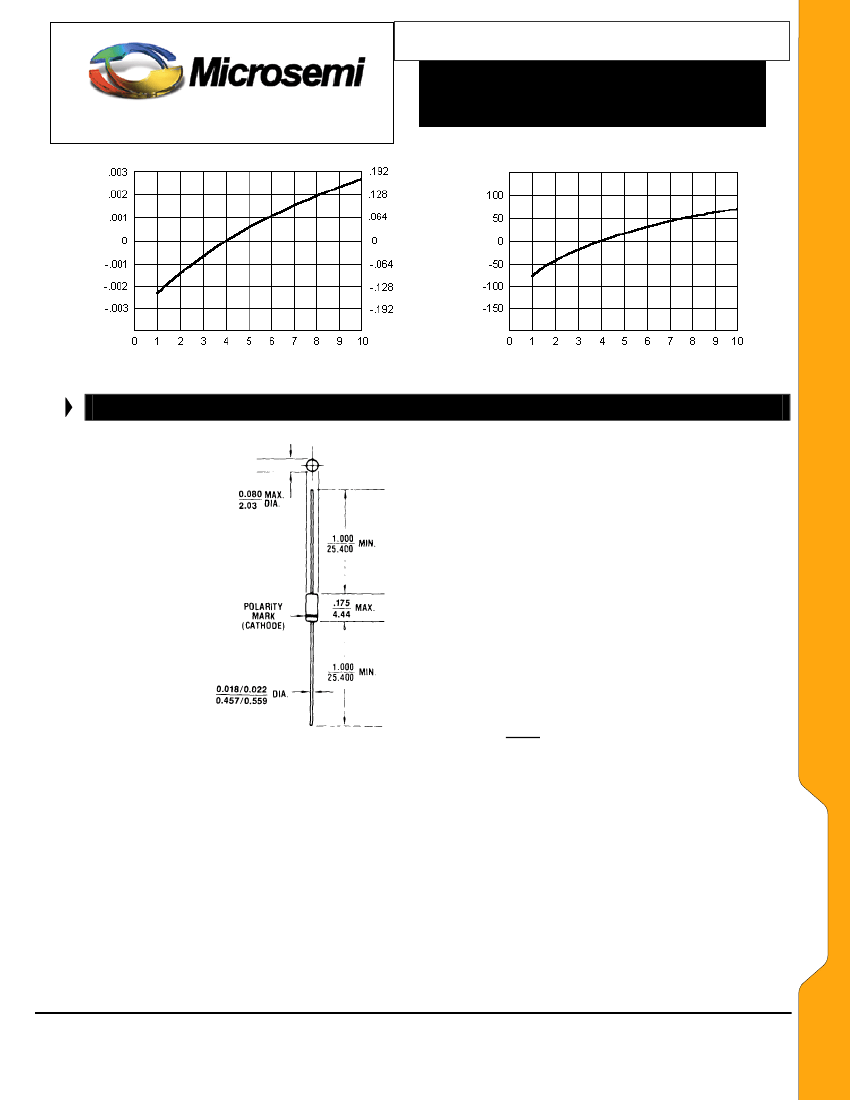

See package dimensions on last page
1N4565 —1N4584A-1
Copyright
2003
10-27-2003 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
1N4565 thru 1N4584A-1 DO-35
6.4 Volt Temperature Compensated Zener
Reference Diodes
SCOTTSDALE DIVISION
*ELECTRICAL CHARACTERISTICS @ 25
o
C, unless otherwise specified
JEDEC TYPE
Number
(Notes 1 & 4)
1N4565
1N4565A
1N4566
1N4566A
1N4567
1N4567A
1N4568
1N4568A
1N4569
1N4569A
1N4570
1N4570A
1N4571
1N4571A
1N4572
1N4572A
1N4573
1N4573A
1N4574
1N4574A
1N4575
1N4575A
1N4576
1N4576A
1N4577
1N4577A
1N4578
1N4578A
1N4579
1N4579A
1N4580
1N4580A
1N4581
1N4581A
1N4582
1N4582A
1N4583
1N4583A
1N4584
1N4584A
NOTES:
1.
2.
3.
4.
When ordering devices with tighter tolerances than specified for the V
Z
voltage nominal of 6.2V, add a hyphened suffix to the
part number for desired tolerance, e.g. 1N4569A-2%, 1N4574A-1-1%, 1N4579-1-2%, 1N4584A-1-3%, etc.
o
Zener impedance is measured by superimposing 0.75 mA ac rms on 7.5 mA dc @ 25 C.
Voltage measurements to be performed 15 seconds after application of dc current.
WWW .
Microsemi
.C
OM
ZENER TEST
CURRENT
(Note 3)
I
ZT
mA
.5
.5
.5
.5
.5
.5
.5
.5
.5
.5
.5
.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
MAXIMUM VOLTAGE TEMPERATURE
COEFFICIENT
α
VZ
+/- %/
o
C
.01
.01
.005
.005
.002
.002
.001
.001
.0005
.0005
.01
.01
.005
.005
.002
.002
.001
.001
.0005
.0005
.01
.01
.005
.005
.002
.002
.001
.001
.0005
.0005
.01
.01
.005
.005
.002
.002
.001
.001
.0005
.0005
+/- mV/
o
C
.64
.64
.32
.32
.13
.13
.06
.06
.03
.03
.64
.64
.32
.32
.13
.13
.06
.06
.03
.03
.64
.64
.32
.32
.13
.13
.06
.06
.03
.03
.64
.64
.32
.32
.13
.13
.06
.06
.03
.03
MAXIMUM
REVERSE
CURRENT
I
R
@ 3 V
Temp. Range
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
0 to +75
o
C
o
-55 to +100 C
o
0 to +75 C
o
-55 to +100 C
0 to +75
o
C
-55 to +100
o
C
µA
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
MAX. DYNAMIC
IMPEDANCE
(Note 2)
Z
ZT
@ I
ZT
OHMS
200
200
200
200
200
200
200
200
200
200
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
50
50
25
25
25
25
25
25
25
25
25
25
1N4565 —1N4584A-1
*JEDEC Registered Data.
1N4565A thru 1N4584A also have qualification to MIL-PRF-19500/452 by adding the JAN, JANTX, JANTXV, or
JANS prefixes to part numbers as well as the “-1” suffix; e.g. JANTX1N4569A-1, JANTXV1N4574A-1, etc.
Copyright
2003
10-27-2003 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
