All Other DC and Logic Pins (Supply Voltage Must Be
Applied Prior to Any Other Pin Voltages)
Maximum Input Power at RFIN Pin at 85°C Case
Temperature
Maximum Input Power at RFOUT Pin at 85°C Case
Temperature
Storage Temperature Range
ESD Rating - Human Body Model (HBM)
Moisture Sensitivity Level
Rating
-0.5 to +6.0
-0.5 to V
DD
+30
+27
-40 to +150
1000
MSL1
Unit
V
V
dBm
dBm
°C
V
Caution!
ESD sensitive device.
RFMD Green: RoHS status based on EU
Directive 2011/65/EU (at time of this
document revision), halogen free per IEC
61249-2-21, < 1000ppm each of
antimony trioxide in polymeric materials
and red phosphorus as a flame retardant,
and <2% antimony in solder.
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Recommended Operating Condition
Parameter
Operating Temperature Range
(RF Input power handling de-rates above 85°C)
Operating Junction Temperature
Supply Voltage
2.7
-40
Specification
Min
Typ
Max
+105
125
5.5
Unit
°C
°C
V
Nominal Operating Parameters
Specification
Parameter
Min
General Performance
Supply Current
Thermal Resistance
RF Input Power at RFIN Pin
RF Input Power at RFOUT PIN
180
55
27
20
µA
°C/W
dBm
Continuous operation at +85°C case temperature
dBm
Steady state operation, current draw during attenuation state transitions is
higher.
At maximum attenuation state with RF power applied to the RFIN pin.
Unit
Typ
Max
Condition
RF Performance
Frequency Range
Insertion Loss
Attenuation Range
Absolute Attenuation Error
Input IP3
Input P0.1dB
Return Loss
Input and Output Impedance
5
1.4
15
±(0.2 + 4%)
55
30
15
50
6000
MHz
dB
dB
dB
dBm
dBm
dB
Ω
2000MHz, 0dB attenuation
1.0dB step size
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150129
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
2 of 14
RFSA3413
Specification
Parameter
Min
RF Performance – Continued
Switching Speed
Successive Step Phase Delta
120
2
nsec
Deg
50% Control to 10%/90% RF
2000MHz
Unit
Typ
Max
Condition
Control
Digital Logic Low
Digital Logic High
-0.2
1.6
0.9
VDD
V
V
Note: Typical performance at these conditions: Temp = +25°C, 2000MHz, 5V Supply Voltage
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150129
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 14
RFSA3413

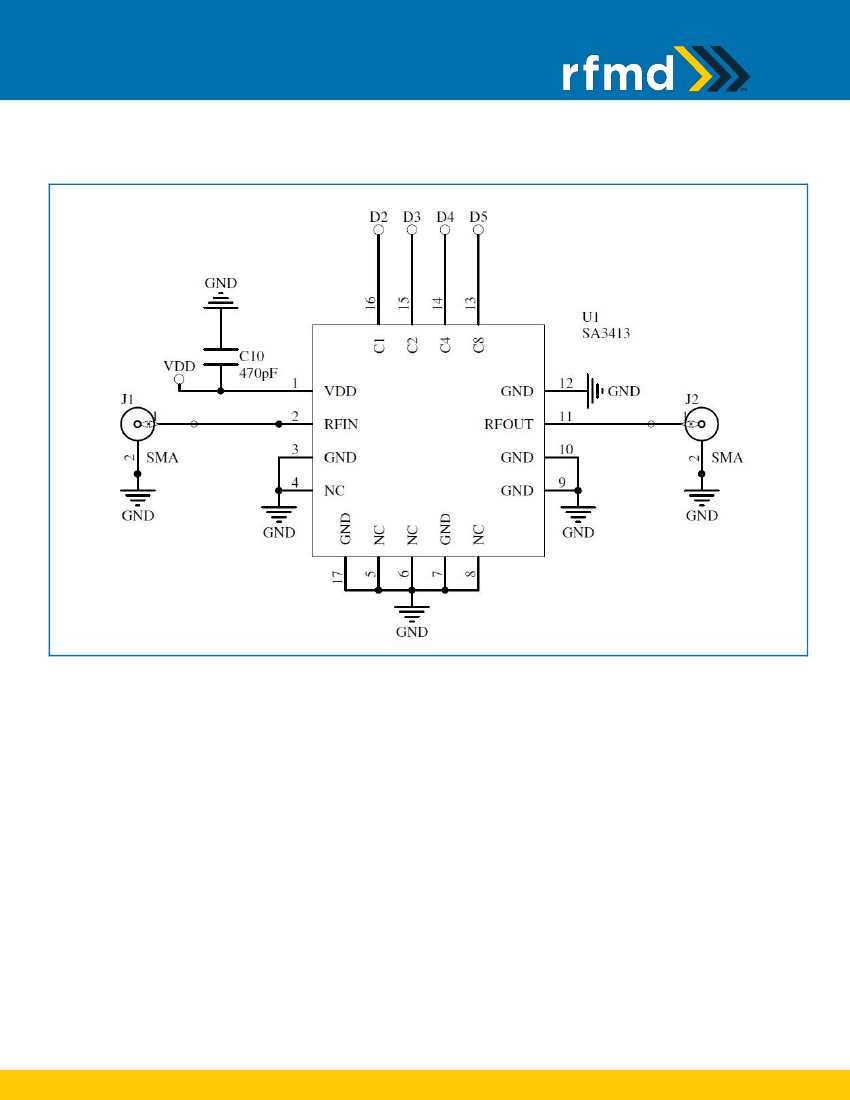

Typical Application Schematic
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150129
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 14
RFSA3413

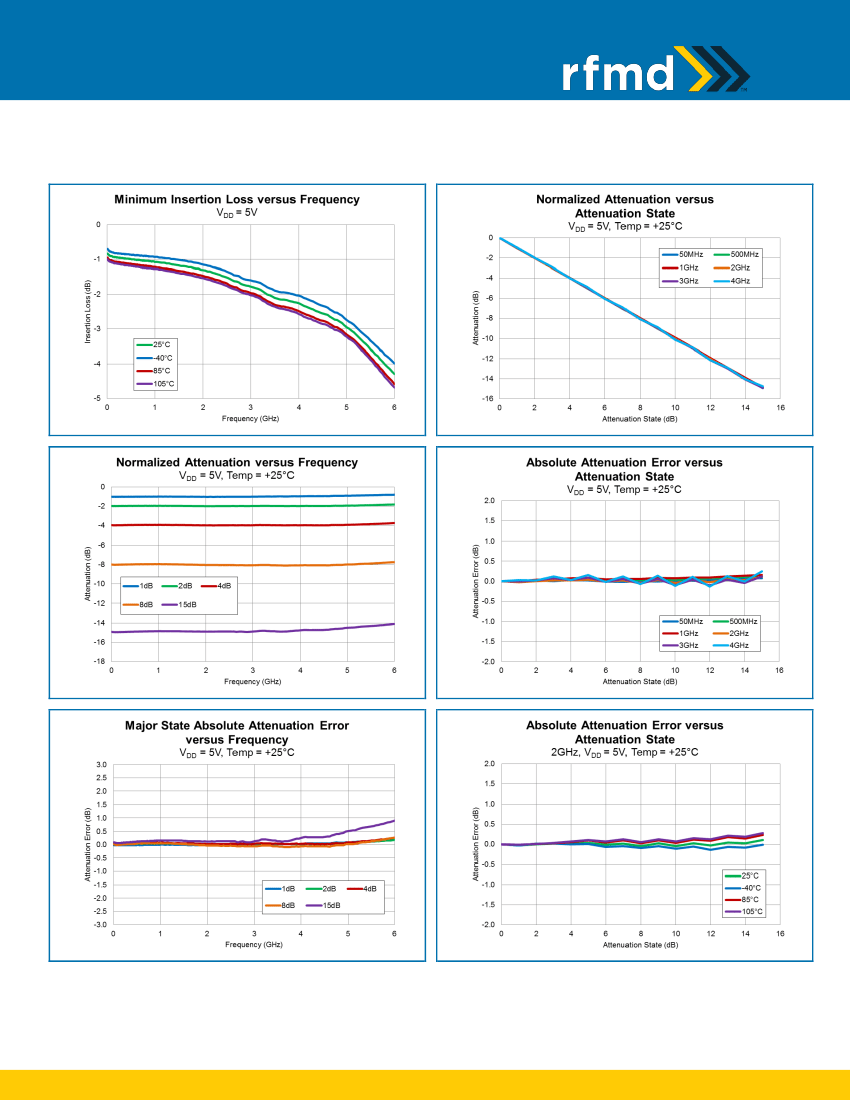

Typical Performance:
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150129
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
