655E12503A3T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 655E12503A3T

655E12503A3T: DescriptionLVPECL Output Clock Oscillator; CategoryPassive components oscillator; File Size777KB，7 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

655E12503A3T Overview

LVPECL Output Clock Oscillator

655E12503A3T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7075008084
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	125 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

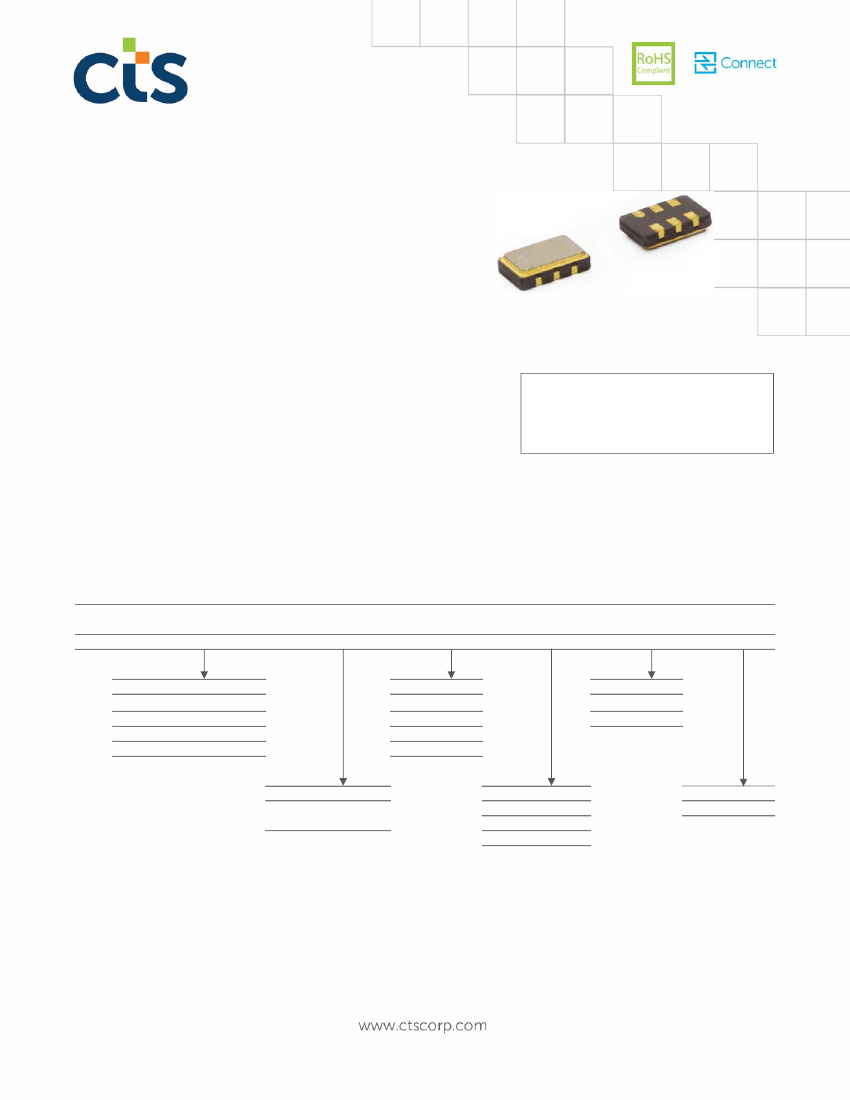

Model 655

Features



Ceramic Surface Mount Package

Ultra Low Phase Jitter Performance, 100fs Typical

Fundamental or 3

Overtone Crystal Design

Frequency Range 80 – 170MHz *

+2.5V or +3.3V Operation

Output Enable Standard

Tape and Reel Packaging, EIA‐418

Ultra Low Jitter LVPECL or LVDS Clock

Part Dimensions:

5.0 × 3.2 × 1.2mm • 62.00mg

Applications



SerDes

Storage Area Networking

Broadband Access

SONET/SDH/DWDM



PON

Ethernet/GbE/SyncE

Fiber Channel

Test and Measurement

Standard Frequencies, 100fs Maximum

‐ 125.00MHz

‐ 156.25MHz

‐ 155.52MHz

‐ 161.1328MHz

* Check with factory for availability.

Description

CTS Model 655 is a low cost, high performance clock oscillator supporting differential LVPECL or LVDS outputs.

Employing the latest IC technology, M655 has excellent stability and very low jitter/phase noise performance.

Ordering Information

Model

655

Output Type

Frequency Code

[MHz]

X X X or X X XX

Frequency

Stability

Temperature

Range

Supply

Voltage

Packaging

Code

Output

LVPECL ‐ Pin 1 Enable

LVDS ‐ Pin 1 Enable

LVPECL ‐ Pin 2 Enable

LVDS ‐ Pin 2 Enable

Code

Stability

±20ppm

±25ppm

±50ppm

±100ppm

Code

Voltage

+2.5Vdc

+3.3Vdc

Code

Frequency

Product Frequency Code

Code Temp. Range

‐10°C to +60°C

‐20°C to +70°C

‐40°C to +85°C

Packing

Code

1k pcs./reel

Notes:

1] Refer to document 016‐1454‐0, Frequency Code Tables. 3‐digits for frequencies <100MHz, 4‐digits for frequencies 100MHz or greater.

2] Consult factory for availability of 6I Stability/Temperature combination.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

DOC# 008‐0550‐0 Rev. A

Page 1 of 7

Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
