48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband
High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
TECHNICAL DATA SHEET
PE15A3505
PE15A3505 is a 1W wideband coaxial power amplifier operating in the 6 to 12 GHz frequency range. The amplifier offers 30
dBm min of P1db and high 48 dB typical small signal gain with the excellent gain flatness of ±1.0dB max and an outstanding
output IP3 performance of 39 dBm. This excellent technical performance is achieved through the use of hybrid MIC design and
advanced GaAs PHEMT devices. The amplifier requires typically a +12V DC power supply. The connectorized SMA module
is unconditionally stable and includes built-in voltage regulation, bias sequencing, and reverse bias protection for added
reliability. The amplifier operates over the temperature range of -55°C and +85°C.
Features
•
•
•
•
•
•
•
6 GHz to 12 GHz Frequency Range
P1dB: 30 dBm min
High Small Signal Gain: 48 dB typical
Gain Flatness: ±1.0 dB
High output IP3: 39 dBm
Noise Figure: 5 dB typical
Reverse Isolation: 50 dB
Electronic Warfare
Electronic Countermeasures
Radar Systems
Telecom Infrastructure
•
•
•
•
•
•
50 Ohms Input and Output Matched
-55 to +85°C Operating Temperature
Unconditionally Stable
Regulated Supply & Bias Sequencing
Hermetically Sealed Module
Overvoltage External Protection for Easy Repair
Applications
•
•
•
•
•
•
•
•
Test Instrumentation
Military & Space
Communication Systems
Satellite Communication
•
Microwave Radio Systems
•
Driver Amplifier
•
High Power Output Amplifier
Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 1,350mA)
Description
Frequency Range
Gain
Gain Flatness
Output at 1 dB Compression Point
Output 3
rd
Intercept Point
Reverse Isolation
Noise Figure
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range (OTR)
..
-55
11
12
1,350
+85
+30
+39
50
5
5.5
2:1
2:1
15
Volts
mA
°C
Minimum
6
Typical
48
±1
Maximum
12
Units
GHz
dB
dB
dBm
dBm
dB
dB
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF,
SMA
PE15A3505
PE15A3505 REV 1.0
1
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband
High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
TECHNICAL DATA SHEET
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Operating Temperature (base-plate)
Storage Temperature
PE15A3505
Rating
+16
+17
-55 to +85
-65 to +95
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF,
SMA
PE15A3505
PE15A3505 REV 1.0
2
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband
High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
TECHNICAL DATA SHEET

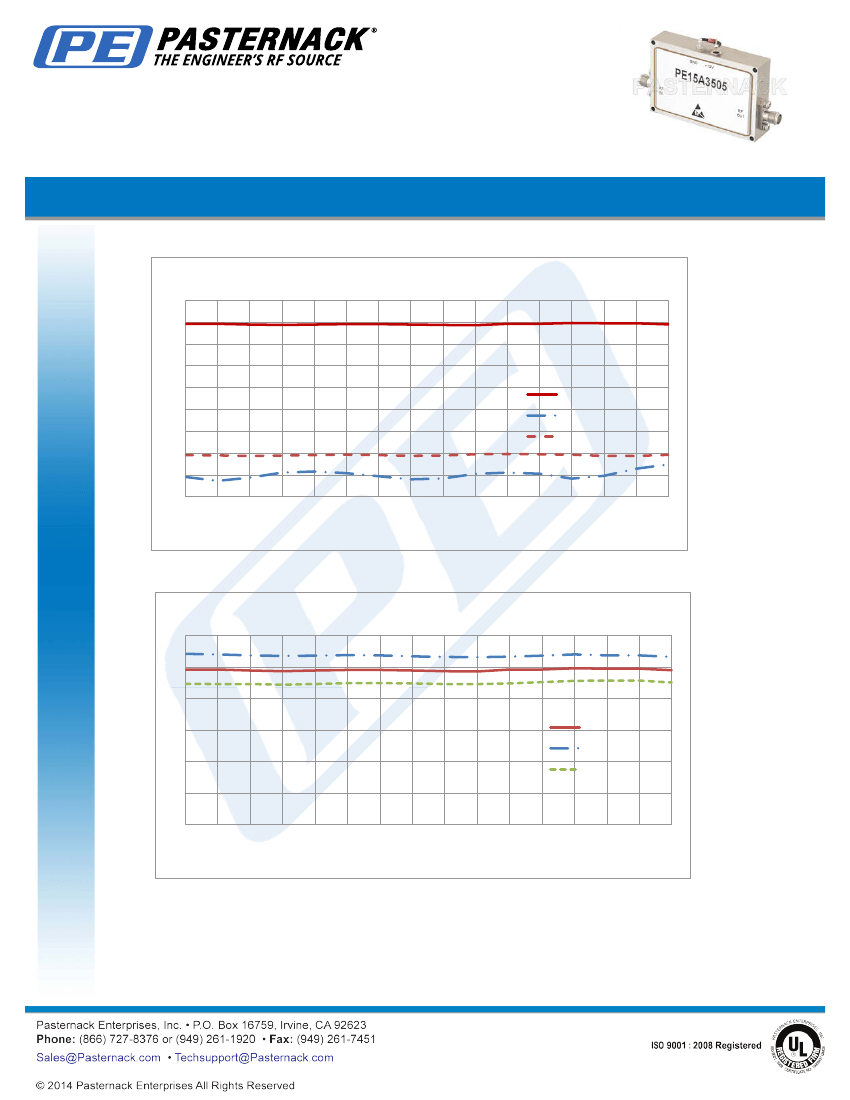

Power Data
PE15A3505
dB
60
50
40
Gain, Input Return Loss and Output Return Loss
30
20
10
0
-10
-20
-30
6
6.4
6.8
7.2
7.6
8
8.4
8.8
9.2
9.6
10
10.4 10.8 11.2 11.6
12
Freq.(GHz)
Gain(dB) @25 C
IN_Return Loss(dB)
OUT_Return Loss(dB)
dB
60
50
40
30
20
10
0
6
6.4
6.8
7.2
7.6
8
Gain vs Temperature
Gain(dB) @25 C
Gain@-55℃
Gain@85℃
8.4
8.8
9.2
9.6
10
10.4
10.8
11.2
11.6
12
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF,
SMA
PE15A3505
PE15A3505 REV 1.0
3
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband
High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
TECHNICAL DATA SHEET

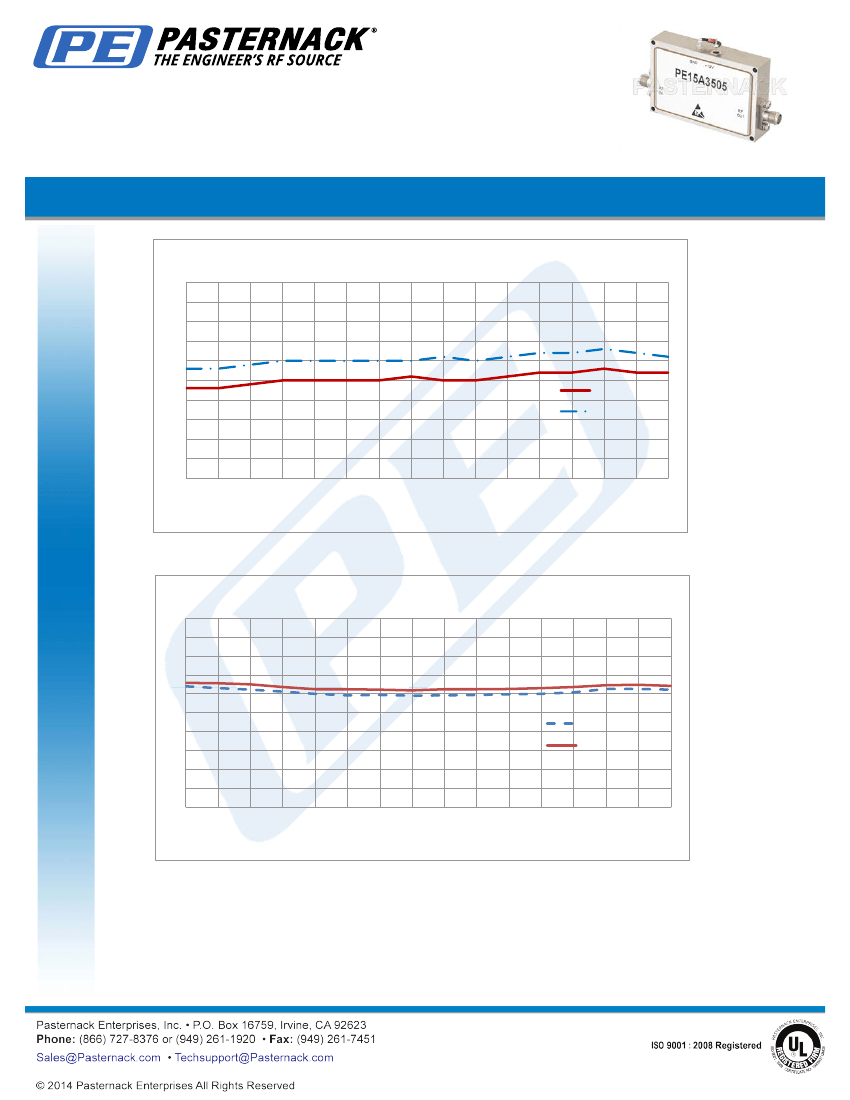

NF vs Temperature
PE15A3505
dB
5
4.5
4
3.5
3
2.5
2
NF(dB)@25℃
1.5
1
0.5
0
6
6.4
6.8
7.2
7.6
8
8.4
8.8
9.2
9.6
10
NF(dB)@85℃
10.4 10.8 11.2 11.6
12
Freq.(GHz)
dBm
50
45
40
35
30
25
20
15
10
5
0
6
6.4
6.8
7.2
7.6
P1dB vs Temperature
P1dB@85℃
P1dB(dBm)@25℃
8
8.4
8.8
9.2
9.6
10
10.4
10.8
11.2
11.6
12
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF,
SMA
PE15A3505
PE15A3505 REV 1.0
4
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband
High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
TECHNICAL DATA SHEET
PE15A3505
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA
PE15A3505
URL:
http://www.pasternack.com/48-db-gain-12-ghz-broadband-high-gain-amplifier-5-db-sma-pe15a3505-p.aspx
PE15A3505 REV 1.0
5
