SBL4030PT THRU SBL4040PT
SCHOTTKY RECTIFIER
Reverse Voltage -
30 to 40 Volts
TO-247AD
0.645 (16.4)
0.625 (15.9)
0.203 (5.16)
0.193 (4.90)
0.245 (6.2)
0.225 (5.7)
0.323 (8.2)
0.313 (7.9)
10
o
30
o
0.078 REF
(1.98)
Forward Current -
40.0 Amperes
FEATURES
0.170
(4.3)
0.840 (21.3)
0.820 (20.8)
10
o
TYP.
BOTH SIDES
0.142 (3.6)
0.138 (3.5)
1
2
3
0.086 (2.18)
0.076 (1.93)
1
o
REF.
BOTH SIDES
0.118 (3.0)
0.108 (2.7)
0.127 (3.22)
0.160 (4.1)
0.140 (3.5)
0.795 (20.2)
0.775 (19.6)
0.117 (2.97)
♦
Plastic package has Underwriters Laboratory
Flammability Classifications 94V-0
♦
Dual rectifier construction, positive center-tap
♦
Metal silicon rectifier,
majority carrier conduction
♦
Low power loss,
high efficiency
♦
High current capability, low forward voltage drop
♦
High surge capability
♦
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications
♦
Guardring for overvoltage protection
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.17" (4.3mm) from case
0.048 (1.22)
0.225 (5.7)
0.205 (5.2)
0.044 (1.12)
0.030 (0.76)
0.020 (0.51)
PIN 2
CASE
MECHANICAL DATA
Case:
JEDEC TO-247AD molded plastic body
Terminals:
Lead solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Mounting Torque:
10 in. - lbs. max.
Weight:
0.2 ounce, 5.6 grams
PIN 1
PIN 3
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
SBL4030PT
SBL4040PT
UNITS
Maximum repetitive peak reverse voltage
Maximum working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
C
=100°C
Peak repetitive forward current per leg at T
C
=95°C
(rated V
R
square wave, 20 KH
Z
)
Peak forward surge current, 8.3ms single half sine-
wave superimposed on rated load (JEDEC Method)
Peak repetitive reverse surge current
(NOTE1)
Maximum instantaneous forward voltage
per leg at
I
F
=20A, T
C
=25°C
I
F
=20A, T
C
=100°C
(NOTE 2)
Maximum instantaneous reverse current at T
C
=25°C
rated DC blocking voltage per leg
(NOTE 2)
T
C
=100°C
Typical thermal resistance per leg
(NOTE 3)
Voltage rate of change (rated V
R
)
Operating junction storage temperature range
NOTES:
(1) 2.0µs pulse width, f=1.0 KH
Z
(2) Pulse test: 300µs pulse width, 1% duty cycle
(3) Thermal resistance from junction to case per leg
V
RRM
V
RMS
V
DC
I
(AV)
I
FRM
I
FSM
I
RRM
V
F
30
21
30
40.0
40.0
400.0
2.0
0.58
0.50
10.0
100.0
1.2
1,000
-40 to +125
40
28
40
Volts
Volts
Volts
Amps
Amps
Amps
Amps
Volts
I
R
R
ΘJC
dv/dt
T
J
T
STG
mA
°C/W
V/µs
°C
4/98

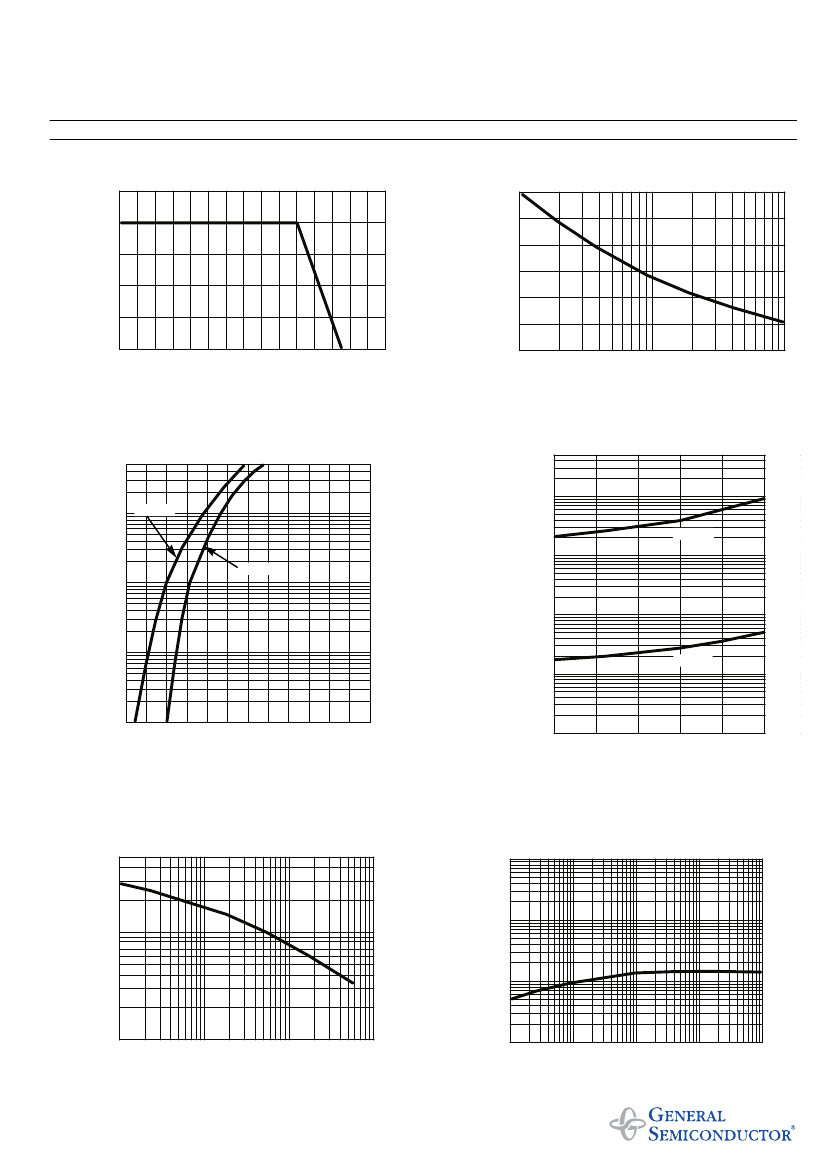

RATINGS AND CHARACTERISTIC CURVES SBL4030PT THRU SBL4040PT
FIG. 1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,
AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT PER LEG
PEAK FORWARD SURGE CURRENT,
AMPERES
50
40
30
20
10
0
400
300
200
0
50
100
150
100
1
10
NUMBER OF CYCLES AT 60 H
Z
100
CASE TEMPERATURE, °C
FIG. 3 - TYPICAL REVERSE CHARACTERISTICS
PER LEG
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
PER LEG
50
50
INSTANTANEOUS FORWARD CURRENT,
AMPERES
10
10
T
J
=100°C
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
T
J
=100°C
1
T
J
=25°C
1
0.1
0.1
T
J
=25°C
0.01
0.01
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
FIG. 5 - TYPICAL JUNCTION CAPACITANCE PER LEG
TRANSIENT THERMAL IMPEDANCE,
°C/W
FIG . 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
5,000
JUNCTION CAPACITANCE, pF
100
10
1,000
1
100
0.1
1
10
100
0.1
0.01
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
t, PULSE DURATION, sec.
