PS1S85-105GCB-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS1S85-105GCB-L

PS1S85-105GCB-L: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1S85-105GCB-L Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PS1S85-105GCB-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164390441
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.335 inch
body length	0.52 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	PS1S85
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

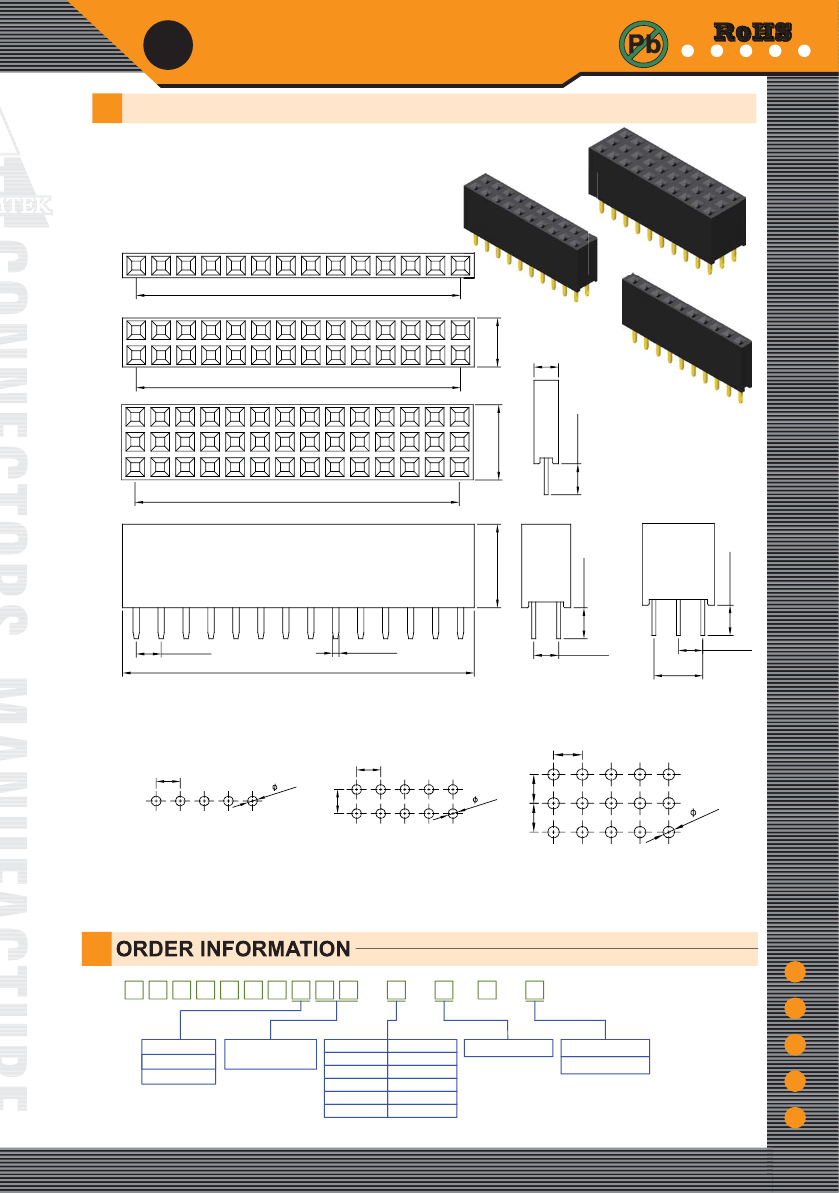

emale Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Termianl:Copper Alloy

Plating:Gold Plated

Female Header 2.54mm 1/2/3 Row H=8.5mm Straight Type

Specifitions

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Part No.:PS1S85-1/2/3XX-L/U

P S 1 S 8 5

- X X X

1:Single Row

2:Dual Row

3:Triple Row

No. of Contacts Per Row

(02~40)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

B:Black Insulator

L:RoHS + PBT

U:RoHS + Nylon 6T

Standard Recommended

www.amtek-co.com.tw

2-127
