PS3BM20-120GCBOPRA-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS3BM20-120GCBOPRA-U

PS3BM20-120GCBOPRA-U: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size292KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS3BM20-120GCBOPRA-U Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

PS3BM20-120GCBOPRA-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164490895
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.071 inch
subject depth	0.079 inch
body length	1.123 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS3BM20
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.5908 mm
Plating thickness	20u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

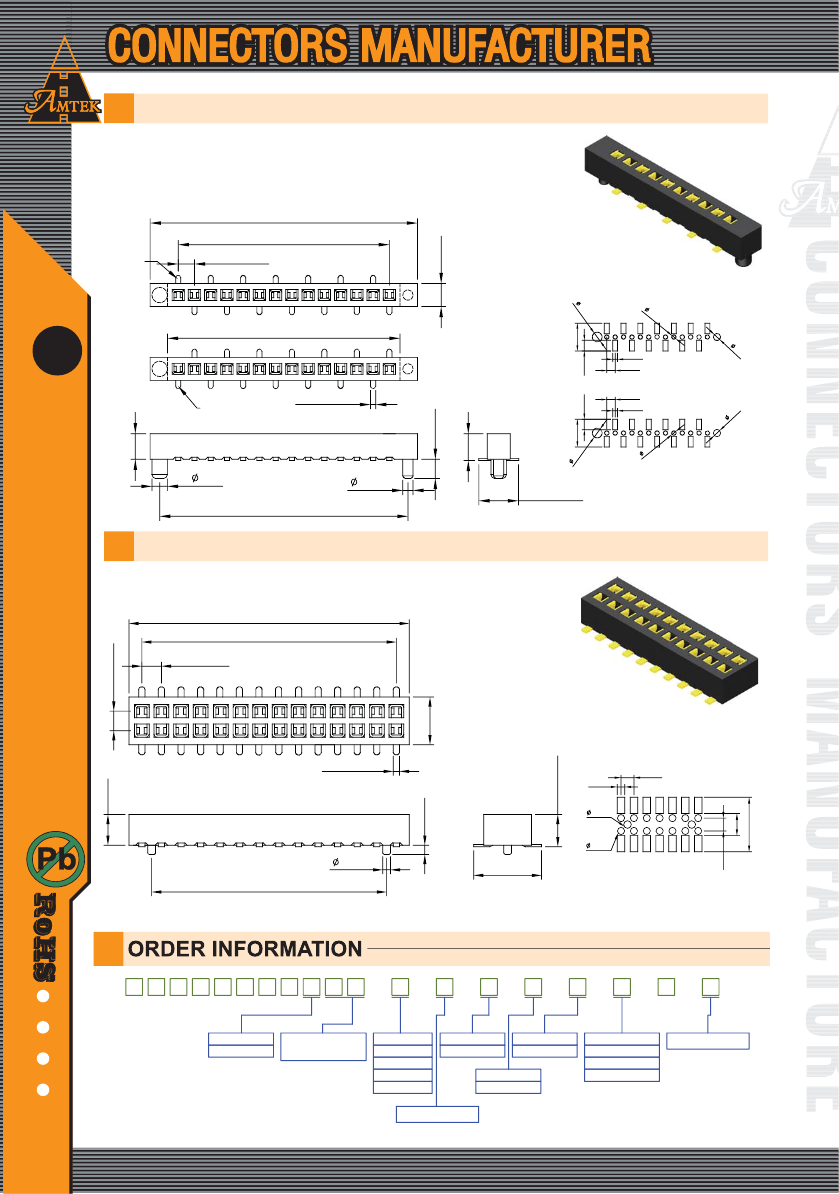

Female Header 1.27mm 1 Row H=2.0mm Bottom Entry SMT Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

emale Header 1.27mm

2-33

Part No.:PS3BM20-1XX-U

Female Header 1.27mm 2 Row H=2.0mm Bottom Entry SMT Type

Part No.:PS3BM20-2XX-U

P S 3 B M 2 0

- X X X

1:Single Row

2:Dual Row

No. of Contacts Per Row

(03~50)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

O:W/O Cap

T:Tube

R:Tape & Reel

PCB Layout

U:RoHS + Nylon 6T

C:With Cap

A:A Type

B:B Type

(For Single Row Only)

O:W/O Peg

P:With Peg

B:Black Insulator

Standard Recommended

www.amtek-co.com.tw
