HI-1585
December 2015
MIL-STD-1553 / 1760
3.3V Dual Transceiver with Tail-Off Control
PIN CONFIGURATION
48 TOC2B
47 BUSBOUT
46 BUSBOUT
45 VDDB
44 BUSBOUT
43 BUSBOUT
42 BUSAOUT
41 BUSAOUT
40 VDDA
39 BUSAOUT
38 BUSAOUT
37 TOC2A
GND 1
VDDB 2
TXB 3
TXB 4
TXINHB 5
RXENB 6
RXB 7
RXB 8
GND 9
ENPEXTB 10
VDDB 11
BUSBIN 12
DESCRIPTION
The HI-1585 is an ultra-low power CMOS dual transceiver
designed to meet the requirements of the MIL-STD-1553
and MIL-STD-1760 specifications.
The transmitter section of each bus takes complementary
CMOS / TTL Manchester II bi-phase data and converts it to
differential voltages suitable for driving the bus isolation
transformer. Separate transmitter inhibit control signals are
provided for each transmitter.
The receiver section of the each bus converts the 1553 bus
bi-phase analog signals to complementary CMOS / TTL
data suitable for input to a Manchester decoder. Each bus
has its own Receive Enable input, which forces both
receive output signals to the bus idle state (logic "0") when
disabled.
To reduce end-of-transmission residual voltage offset
(”tail-off”), logic-level transmit signal inputs can be clocked-
in to synchronize their rise/fall transitions. This
compensates for timing mismatch or transmit signal path
propagation differences caused by board layout.
When sub-optimal board design consistently presents tail-
off magnitudes close to or exceeding mandatory limits,
another unique option lets the user select a bus-specific
level of digital tail-off compensation.
The HI-1585 also provides optional Receive output pulse
extension. With traditional MIL-STD-1553 transceivers,
low amplitude receive signals can result in RX/nRX pulses
less than 100ns wide. When this feature is enabled,
RX/nRX output pulse widths do not drop below 300ns,
greatly simplifying decoder design and enhancing noise
performance.
1585PCI
1585PCT
1585PCM
36 GND
35 VDDA
34 TXA
33 TXA
32 TXINHA
31 RXENA
30 RXA
29 RXA
28 GND
27 ENPEXTA
26 VDDA
25 BUSAIN
48 Pin Plastic 6mm x 6mm
Chip-Scale Package (QFN)
FEATURES
·
Compliant to MIL-STD-1553A and B,
MIL-STD-1760 and ARINC 708A
·
3.3V single supply operation
·
Smallest transceiver footprint available in
6mm x 6mm 48-pin plastic chip-scale
package (QFN)
·
Input data synchronization.
·
Tail-off compensation control.
·
Receiver output pulse-width extension
control.
APPLICATIONS
·
MIL-STD-1553 Terminals
·
Flight Control and Monitoring
·
Radar Systems
·
ECCM Interfaces
·
Stores Management
·
Test Equipment
·
Sensor Interfaces
·
Instrumentation
(DS1585 Rev. New)
HOLT INTEGRATED CIRCUITS
www.holtic.com
BUSBIN
VDDB
ENCLKB
CLKB
TOC1B
TOC0B
TOC0A
TOC1A
CLKA
ENCLKA
VDDA
BUSAIN
13
14
15
16
17
18
19
20
21
22
23
24
12/15
HI-1585
PIN DESCRIPTIONS
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
SYMBOL
GND
VDDB
TXB
TXB
TXINHB
RXENB
RXB
RXB
GND
ENPEXTB
VDDB
BUSBIN
BUSBIN
VDDB
ENCLKB
CLKB
TOC1B
TOC0B
TOC0A
TOC1A
CLKA
ENCLKA
VDDA
BUSAIN
BUSAIN
VDDA
ENPEXTA
GND
RXA
RXA
RXENA
TXINHA
TXA
TXA
VDDA
GND
TOC2A
BUSAOUT
BUSAOUT
VDDA
BUSAOUT
BUSAOUT
BUSBOUT
BUSBOUT
VDDB
BUSBOUT
BUSBOUT
TOC2B
FUNCTION
power supply
power supply
digital input
digital input
digital input
digital input
digital output
digital output
power supply
digital Input
power supply
analog input
analog input
power supply
digital input
digital input
digital input
digital input
digital input
digital input
digital input
digital input
power supply
analog input
analog input
power supply
digital Input
power supply
digital output
digital output
digital input
digital input
digital input
digital input
power supply
power supply
digital input
analog output
analog output
power supply
analog output
analog output
analog output
analog output
power supply
analog output
analog output
digital input
Ground
DESCRIPTION
+3.3 volt power for transceiver B
Transmitter B digital data input, non-inverted
Transmitter B digital data input, inverted
Receiver B enable. If low, forces RXB and RXB low
Receiver B output, non-inverted
Receiver B output, inverted
Ground
Enable pulse extension for receiver B
+3.3 volt power for transceiver B
MIL-STD-1553 bus input B, negative signal
MIL-STD-1553 bus input B, positive signal
+3.3 volt power for transceiver B
Enable input synchronization for transmitter B
Synchronization clock input for transmitter B
Tail-off adjust transmitter B. (See Table 2)
Tail-off adjust transmitter B. (See Table 2)
Tail-off adjust transmitter A. (See Table 2)
Tail-off adjust transmitter A. (See Table 2)
Synchronization clock input for transmitter A
Enable input synchronization for transmitter A
+3.3 volt power for transceiver A
MIL-STD-1553 bus input A, negative signal
MIL-STD-1553 bus input A, positive signal
+3.3 volt power for transceiver A
Enable pulse extension for receiver A
Ground
Receiver A output, inverted
Receiver A output, non-inverted
Receiver A enable. If low, forces RXA and RXA low
Transmitter A digital data input, non-inverted
Transmitter A digital data input, inverted
+3.3 volt power for transceiver A
Ground
Tail-off adjust transmitter A. (See Table 2)
MIL-STD-1553 bus driver A, positive signal
MIL-STD-1553 bus driver A, positive signal
+3.3 volt power for transceiver A
MIL-STD-1553 bus driver A, negative signal
MIL-STD-1553 bus driver A, negative signal
MIL-STD-1553 bus driver B, positive signal
MIL-STD-1553 bus driver B, positive signal
+3.3 volt power for transceiver B
MIL-STD-1553 bus driver B, negative signal
MIL-STD-1553 bus driver B, negative signal
Tail-off adjust transmitter B. (See Table 2)
Internal pull-down resistor
Internal pull-down resistor
Internal pull-up resistor
Internal pull-down resistor
Internal pull-down resistor
Transmit inhibit, bus A. If high BUSAOUT, BUSAOUT disabled Internal pull-down resistor
Internal pull-up resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-up resistor
Internal pull-down resistor
Internal pull-down resistor
Internal pull-up resistor
Transmit inhibit, bus B. If high BUSBOUT, BUSBOUT disabled Internal pull-down resistor
Table 1. Pin Descriptions
HOLT INTEGRATED CIRCUITS
2
HI-1585
Each Bus (Bus A shown)
TRANSMITTER
TXINHA
TXA
BUSAOUT
CLKA
Data Bus
Isolation
Transformer
Slope
Control
BUSAOUT
Coupler
Network
Direct or
Transformer
TXA
ENCLKA
TOC2A
TOC1A
TOC0A
Offset
Adjust
RECEIVER
BUSAIN
RXA
Pulse
Extend
RXA
RXENA
ENPEXTA
Input
Filter
BUSAIN
Comparator
Figure 1. Block Diagram
HOLT INTEGRATED CIRCUITS
3
HI-1585
FUNCTIONAL DESCRIPTION
The HI-1585 dual MIL-STD-1553 bus transceiver contains
a differential voltage source driver and a differential analog
bus receiver for each bus. It is designed for applications us-
ing a MIL-STD-1553B communications bus. The device
generates a trapezoidal output waveform during transmis-
sion.
●
●
●
●
mismatched conductor length or impedance between en-
coder and transceiver drive signal inputs for TX and TX
mismatched positive/negative drive voltage in the
transceiver
mismatched positive/negative rise and fall times in the
transceiver
poor signal path impedance matching between trans-
ceiver positive/negative drive output pins and the iso-
lation transformer
imbalance between positive/negative half-windings in
the center-tapped isolation transformer.
TRANSMITTER
For each bus, data input to the HI-1585 transmitter is a pair
of complementary CMOS inputs TXA and TXA for Bus A,
with a corresponding signal pair for Bus B. The transmitter
accepts Manchester II bi-phase data and converts it to dif-
ferential analog voltages on BUSAOUT and BUSAOUT, or
BUSBOUT and BUSBOUT. The transceiver outputs are ei-
ther direct- or transformer-coupled to the MIL-STD-1553
data bus. Both coupling methods produce a nominal volt-
age on the bus of 7.5 Volts peak to peak.
The transmitter is automatically inhibited and placed in the
high impedance state when TXA and TXA (or TXB and
TXB) are both driven to the same logic state. A bus transmit-
ter is also forced to the high impedance state when logic “1”
is applied at the TXINHA (or TXINHB) transmit inhibit input,
regardless of the TXA and TXA (or TXB and TXB) input con-
dition.

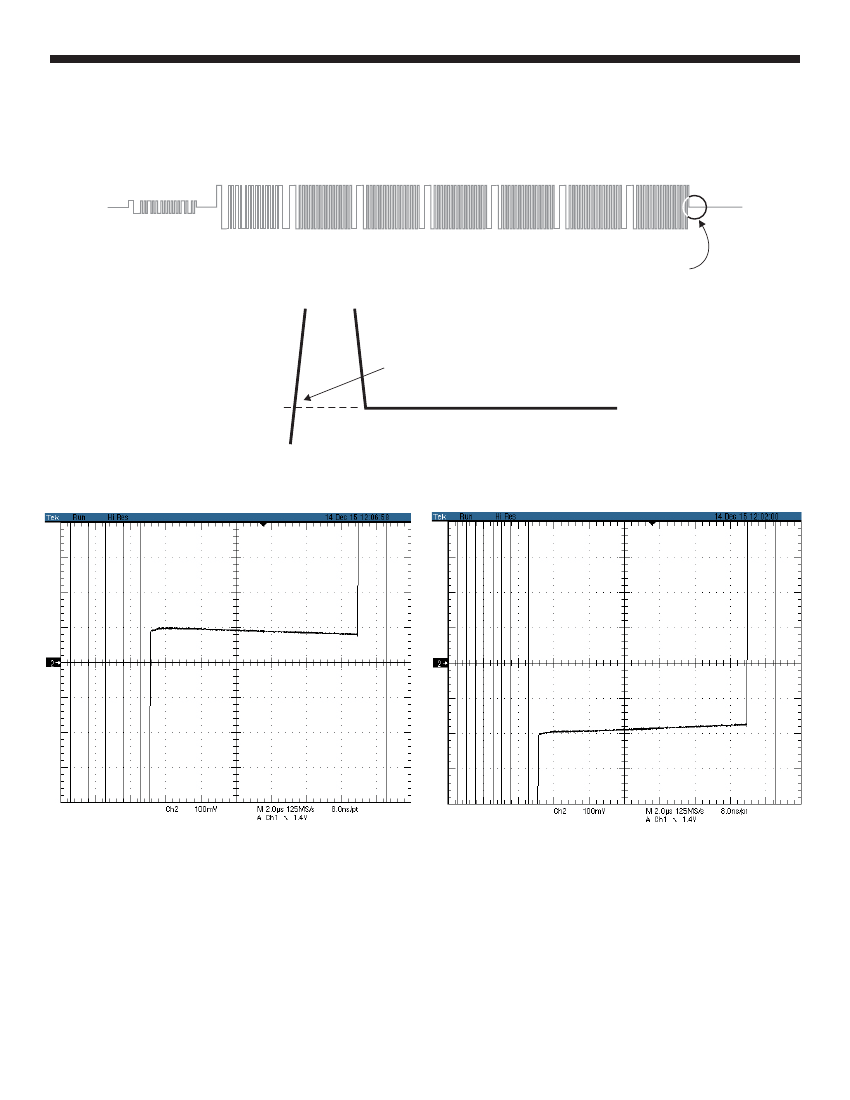

TRANSMIT-INDUCED TAIL-OFF (OFFSET)
A prevalent concern when designing MIL-STD-1553 termi-
nals goes by a number of names, including transmit "output
symmetry", "tail-off" and "offset". This is a transmit-induced
phenomenon that occurs on the bus following long trans-
missions, when one or more design or operating factors are
less than ideal. Slight imbalances in the transmitted analog
signal voltage cause accumulation of energy in the termi-
nal's isolation transformer. When transmission ends and
the transceiver bus interface goes to the Standby or receive
mode, a temporary DC voltage is expressed on the bus.
This "tail-off" voltage can have positive or negative polarity;
it decays exponentially, often persisting for 10 to 20μs de-
pending on magnitude. See Figure 2. Good posi-
tive/negative signal matching (or short message transmis-
sions) result in low tail-off magnitude, while serious mis-
match problems combined with long transmissions can
cause the DC stub voltage to approach or exceed 0.25 V
peak-peak.
Design and product use factors that influence tail-off in-
clude:
●
Holt carefully designs its MIL-STD-1553 transceivers for sym-
metry and matched positive/negative drive characteristics to
minimize transceiver contribution to tail-off. We strongly urge
designers to prioritize system topology and layout so that MIL-
STD-1553 bus interface characteristics are considered first. All
too often, it seems like 1553 bus interface is a late consider-
ation, resulting in marginal performance (or worse) and consid-
erable time wasted on redesign.
Ideally, the isolation transformer is located close to the 1553
bus cable termination connector. The transceiver should be
close to the transformer with matched signal path conductors.
The Manchester II encoder (often implemented in FPGA or
CPLD) should be close to the transceiver and uses Hardware
Description Language (HDL) that carefully matches posi-
tive/negative time intervals and uses synchronous switching.
A design may deviate from ideal characteristics when circum-
stances prevail. Mismatch caused by layout deficiency often re-
sults in a consistent tail-off range for each bus, with message-
to-message tail-off magnitude changes caused by message
length and data differences. Bus A tail-off rarely matches Bus
B. Sometimes the contribution from various factors cancels
out, moving the tail-off voltage range for that bus closer to zero.
Sometimes the various contributions conspire to raise average
tail-off magnitude away from zero. Until now, designers had
few options other than redesign when unacceptable tail-off oc-
curred. The HI-1585 offers two optional provisions to minimize
systemic tail-off occurrence, namely Input Data Synchroniza-
tion and Bus Tail-off Adjustment. These are both described in
the following sections.
●
the data patterns being transmitted. Some repeating
data word values cause greater tail-off magnitude
than random data or other repeating data patterns.
For Holt transceivers, 32-word transmissions using
repeating 0x0000 data usually give worst case tail-off
magnitude
timing skew for TX and TX input signals generated by
the encoder
HOLT INTEGRATED CIRCUITS
4
●
HI-1585
FUNCTIONAL DESCRIPTION
Valid Transmit
Command From
Bus Controller
to Terminal
The Remote Terminal Transmits Response:
Status Word and Data Words
This Area of Interest is Magnified Below
Last midbit zero crossing
0 Volts
a) Ideal Waveform Has No Tail-off or Ringing
b) Exponentially-Decaying Positive Tail-off
c) Exponentially-Decaying Negative Tail-off
Figure 2. Transmit-induced Tail-off (Offset)
HOLT INTEGRATED CIRCUITS
5
京公网安备 11010802033920号
EEWORLD
