5271-09B Overview

D Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Locking, Receptacle

5271-09B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307113353
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.783 inch
subject depth	0.575 inch
body length	1.216 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5271
Plug contact pitch	0.108 inch
Match contact row spacing	0.11 inch
Installation option 1	LOCKING
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal length	0.105 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

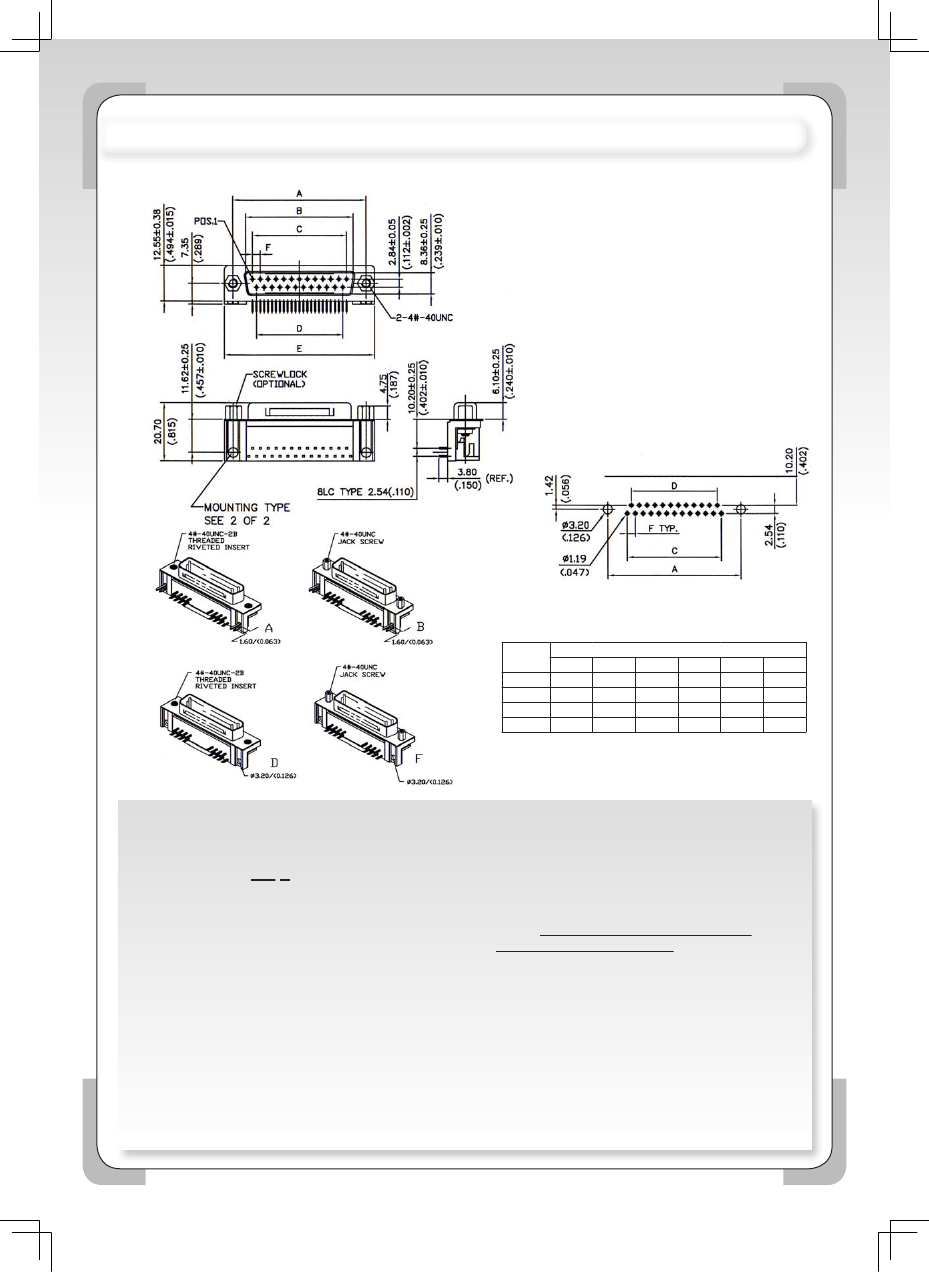

EUROPEAN STANDARD D-SUB. MALE CONNECTOR RIGHT ANGLE TYPE (9.4MM)

SPECIFICATIONS

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout

A MOUNTING TYPE

B MOUNTING TYPE

No. of

Contacts

A±0.13

24.99

33.32

47.04

63.50

Dimensions(mm)

B±0.25 C±0.13 D±0.13

16.92 10.96

8.22

25.25 19.19 16.44

38.96 33.24 30.47

55.42 49.86 47.09

E±0.38 F±0.05

30.89

2.74

39.10

2.74

53.09

2.77

69.40

2.77

D MOUNTING TYPE

F MOUNTING TYPE

ORDERING INFORMATION:

P/N 5 2 7 1 - x x x

1 2

1. NO. OF CONTACTS:

09, 15, 25, 37

2. MOUNTING TYPE:

"A" WITH BOARDLOCK GROUNDING

BRACKET & WITH UNC4-40

THREADED RIVETED INSERT

"B" WITH BOARDLOCK GROUNDING

BRACKET & SCREW LOCK

"D" WITH Ø3.2MM MOUNTING HOLE

& UNC4-40 THREADED

RIVETED INSERT

"F" WITH Ø3.2MM MOUNTING HOLE

& WITH SCREW LOCK

NOTE: THE SPECIFICATION CONFORMS

TO EUROPEAN STANDARD:

* CONTACT EXTENTION: 9.4MM

* CONTACT CENTER SPACING: 2.54MM

C0057
