1279MTMJQHV datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1279MTMJQHV

Preview

1279MTMJQHV: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279MTMJQHV Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279MTMJQHV Parametric

Parameter Name	Attribute value
Objectid	303535521
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/O LOGO, RIGHT EJECT BAR,3.3V
Board mount options	M2 THREADED HOLES
body width	0.583 inch
subject depth	4.434 inch
body length	2.642 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	15u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

REV. ECO. NO.

CHG

APPD.

A

PIN TYPE

DETECT

GENERAL

POWER

59.8

2.354

(2)

A

2.6

.102

B-#01

B-#35

B#-2

B#-33

0.79± 0.05

.031± .002

45.4

1.787

(2.7)

(.106)

5.00(.197)

1,17,34,35,51,68

DIM. L ± 0.10(.004)

3.50(.138)

4.25(.167)

PIN NUMBER

36, 67

ALL OTHER PINS

A

DWG REL.

Features:

B-#34

B-#68

* Material:

1. Insulator: UL 94V-0 LCP,PBT

2. Contact: Copper Alloy

* Color : Black

* With 4 PCS M2x DIM C mm screws

* Accept PCMCIA Type I,

A

Type II or Type III card

Ordering Information:

0.70± 0.10

.028± .004

1.905

.075

B

B-#36

1.27± 0.05

.050± .002

41.91 ±

1.650 ±

52.07 ±

2.050 ±

B-#67

2x 2.30± 0.05

2x .091± .002

0.08

.003

0.10

.004

5.00

.197

1279

1

*

2

T

3

M

4

*

5

* H *

6 7 8

B

112.62

４．４３４

2-M2 NUTS

C

7.00

.276

EMI,ESD PAD

64.50± 0.10

2.539± .004

2-M2 NUTS

51.6

2.031

．６５５５

16.65

13.25

2x 3.20± 0.05

2x .126± .002

59.00 ± 0.10

2.323 ± .004

A

(G)

(F )

(H)

( J)

(S)

(M)

( N)

(P)

( Q)

( R)

．５２２

1. Series No.

2. S = Single stack(with logo)

M = Single stack(without logo)

3. T = Through hole

4. M = Right foldable ejection bar (big shell)

5. Contact plating

F = Selective gold flash over 50u" nickel overall

S = Selective gold flash over 40u" PdNi

K= Selective 30u" gold over 50u" nickel

J = Selective 15u" gold over 50u" nickel

6. An attached table (1) A

7. Special options

8. An attached table (1) B

1.905± 0.05

.075± .002

85.5

3.366

L (2)

C

7.4

.291

B

D

RECOMMENDED HOLE PATTERN

67.1

2.642

C

1.3

#34

A = 2.2 mm

A = 3.0 mm

A = 4.0 mm

A = 5.0 mm

A = 5.5 mm

A = 6.0 mm

A = 7.0 mm

A = 8.0mm

A = 9.0 mm

A = 10.0 mm

#1

B

DIM B = 1.1mm

(0) Voltage 5V

1279*TM*GH0

1279*TM*FH0

1279*TM*HH0

1279*TM*JH0

1279*TM*SH0

1279*TM*MH0

1279*TM*NH0

1279*TM*PH0

1279*TM*QH0

1279*TM*RH0

(1)

DIM B = 2.2mm

(V) Voltage 3.3V

1279*TM*GHV

1279*TM*FHV

1279*TM*HHV

1279*TM*JHV

1279*TM*SHV

1279*TM*MHV

1279*TM*NHV

1279*TM*PHV

1279*TM*QHV

1279*TM*RHV

DIM C =

mm

10.3

11.3

12.3

13.3

14.3

15.3

16.3

17.3

18.3

D

E

APPROVED:

LEOCO CORPORATION

PART NO.:

5.8

.228

DATE:

1279*TM**H*

．１７７２

E

#35

1.27 ± 0.05

.050 ± .002

41.91± 0.08

1.650± .003

#68

GENERAL TOLERANCE

X

±

X

XX ±

XXX ±

±

0.30

.012

0.20

.008

0.10

.004

CHECKED:

X

±

2°

DATE:

TITLE:

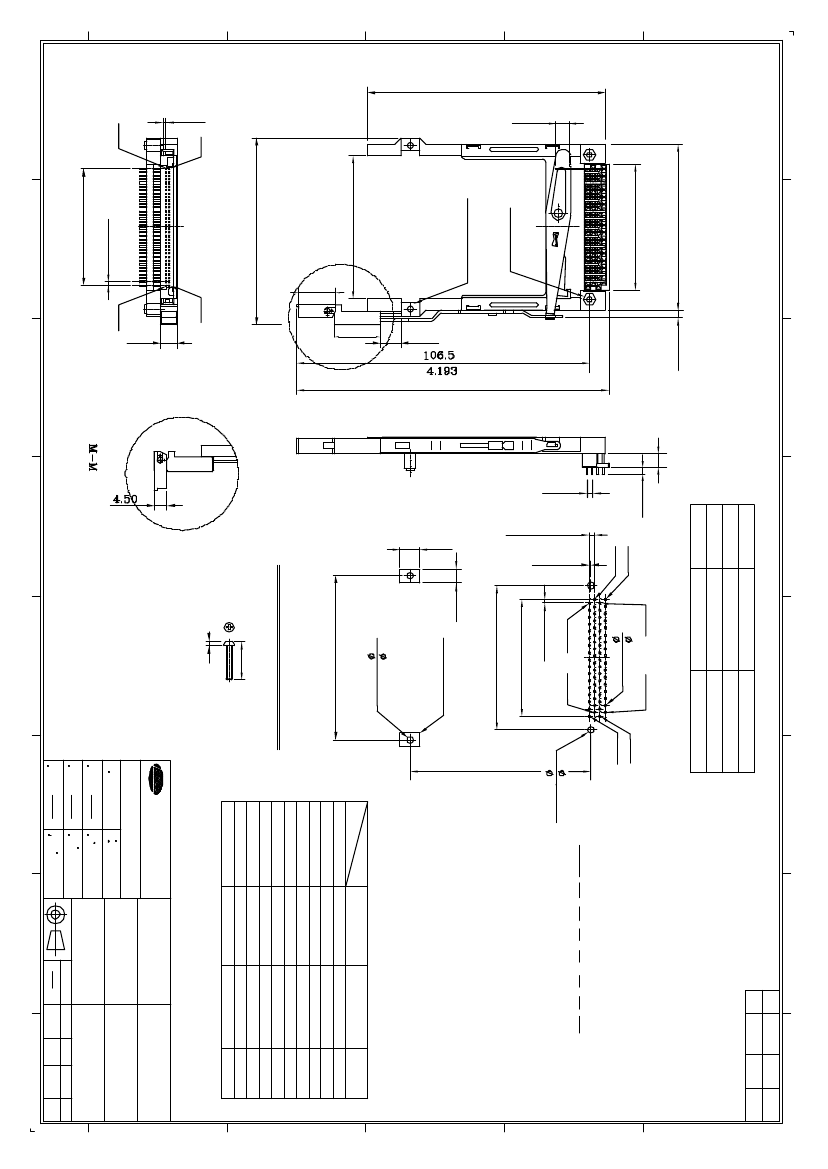

SINGLE STACK PC CARD PLUG

AND RIGHT METAL EJECTOR

DRAWN:

X

±

1°

DRAWING NO.:

XX

±

0.5°

DATE:

1279N8S

UNITS

SCALE

SIZE

SHEET

REV.

XXX ±

0.1°

mm

inch

~

1

2

3

4

5

6

A3

1/1

A

7

8
