1279STLKP00

Description
PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size29KB,1 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw
Download Datasheet Parametric View All

1279STLKP00 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279STLKP00 Parametric

Parameter NameAttribute value
Objectid303535740
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLEFT EJECT, W/ LOGO, 5V
Board mount optionsM2 THREADED HOLES
body width0.543 inch
subject depth3.882 inch
body length2.756 inch
Body/casing typeRECEPTACLE
Connector typePCMCIA CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
maximum insertion forceLIF N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number1279
Plug contact pitch0.05 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of ports1
Number of rows loaded2
Maximum operating temperature60 °C
Minimum operating temperature-20 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness30u inch
Rated current (signal)0.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts68
1
2
3
4
5
6
7
8
REV. ECO. NO.
CHG
APPD.
A
PIN TYPE
DETECT
36, 67
ALL OTHER PINS
1, 17, 34, 35, 51, 68
(2)
59.8
2.354
45.4
1.787
#1
#35
0.79±0.05
.031±.002
A
DWG REL.
DIM. L ±
0.10
3.50
4.25
5.00
PIN NUMBER
GENERAL
POWER
A
A
2.6
.102
B
#34
#68
Features:
* Material:
1. Insulator: UL 94V-0 LCP, PBT
2. Contact: Copper alloy
* Color : Black
* With 4 PCS M2 screws
* Accept PCMCIA Type I,
Type II or Type III card
1.905±
0.05
.075±.002
#36
0.70±0.10
.028±.004
1.27±0.05
.050±.002
41.91±
0.08
1.650±
.003
52.07±
0.10
2.050±
.004
#67
C
2-M2 NUTS
A
5.00
.197
7.00
.276
EMI,ESD PAD
Ordering Information:
1279 * T L * * 0 *
1
2 3 4
5 6 7
8
1. Series No.
2. M = Single stack(without logo)
S = Single stack(with logo)
3. T = Through hole
4. L = Left ejection bar
5. Contact plating
F = Selective gold flash 50μ" nickel overall
J = Selective 15u" gold over 50u" nickel overall
S = Selective gold flash over 40μ" PdNi
K = Selective 30μ" gold over 50μ" nickel
6. An attached table (1) A;
7. Special options
8. An attached table (1) B;
L(2)
64.50±
0.10
2.539±
.004
85.5
3.366
4X
4X
2.30±
0.05
.091±
.002
A
B
1.905
.075
98.6
3.882
7.40
.291
C
B
59.00±
0.10
2.323±
.004
D
51.6
2.031
70.0
2.756
#1
B
#34
RECOMMENDED HOLE PATTERN
(H)A=4.0mm
(J)A=5.0mm
(S)A=5.5mm
(M)A=6.0mm
(N)A=7.0mm
(P)A=8.0mm
(Q)A=9.0mm
(R)A=10.0mm
DIMB=1.1mm
Voltage 5V
1279*TL*H00
1279*TL*J00
1279*TL*S00
1279*TL*M00
1279*TL*N00
1279*TL*P00
1279*TL*Q00
1279*TL*R00
DIMB=2.2mm
Voltage 3.3V
1279*TL*H0V
1279*TL*J0V
1279*TL*S0V
1279*TL*M0V
1279*TL*N0V
1279*TL*P0V
1279*TL*Q0V
1279*TL*R0V
DIM"C"
12.3
13.3
13.3
14.3
15.3
16.3
17.3
18.3
D
(1)
E
APPROVED:
5.80
1.3
C
#35
1.27±0.05
.050±.002
41.91±
0.08
1.650±
.003
#68
1.3
5.0
X
LEOCO CORPORATION
PART NO.:
DATE:
1279*TL**0*
±
E
GENERAL TOLERANCE
CHECKED:
TITLE:
X
±
0.30
X
±
.012
0.20
XX ±
.008
0.10
.004
XXX ±
DATE:

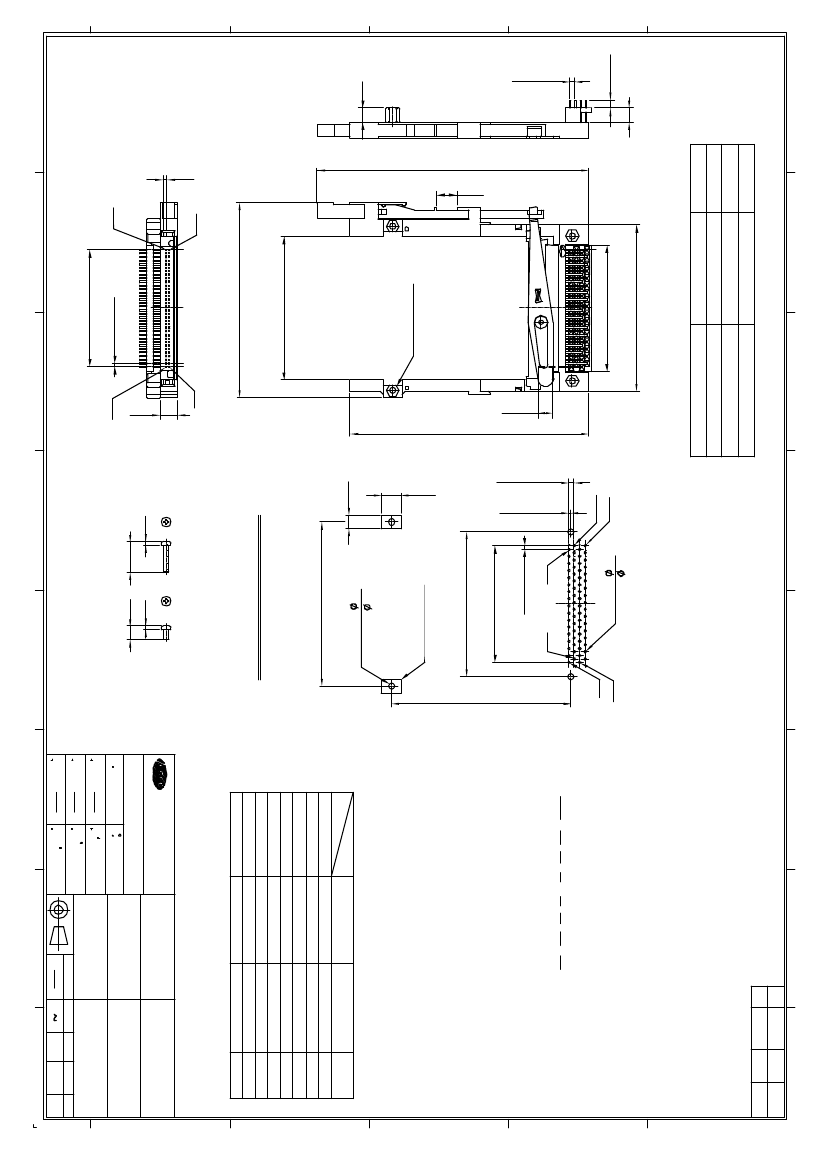

PC CARD PLUG AND
LEFT EJECTOR BAR
X
±
DRAWN:
DRAWING NO.:
XX ±
0.5°
DATE:
1279CKS
UNITS
SCALE
SIZE
SHEET
REV.
XXX ±
0.1°
mm
inch
A3
1
2
3
4
5
6
1/1
A
7
8
