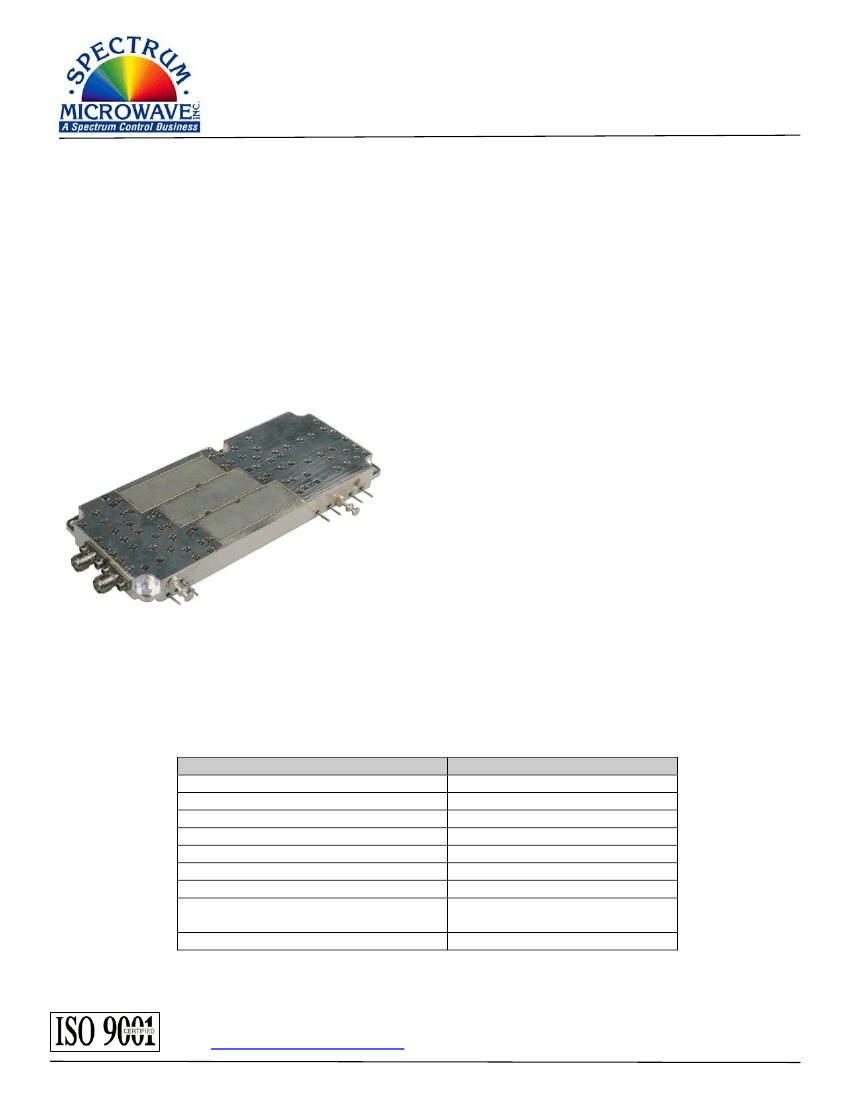

Local Oscillator Doubler
4500-9000 MHz
Model 310-027004-006
Typical Applications
Synthesizer Building Block
EW
ELINT
SIGINT
Features
Low Spurious less than -60 dBc
Fast 120 ns switching speed
High Output +7 dBm drive Level
3-Band Functionality
Null Output Mode
All Aluminum Housing
General Description
The 310-027004-006 Doubler provides the system
designer with a compact, fast-switching building block
for LO multiplication applications. An internal solid-
state multiplier provides frequency multiplication by a
factor of 2.
Three selective internal bandpass filters offers
superior spurious response. Operating band is
selected using two band select control pins. Solid
State PIN Diode switches provide high-speed
selection of the desired operating band. An internal
2-port isolator maintains the output VSWR over the
wide operating frequency range. A NULL mode is
also available to disable the module’s output.
Typical Performance
Parameter
Input Frequency
Input Level
Output Frequency
Output Level
Switching Speed
VSWR (Input)
Phase Noise Degradation
DC Power
Temperature
Typical Specifications
4500 to 9000 MHz
+10 dBm ± 2 dB
9.0 to 18.0 GHz
+7 dBm ± 2 dB
120 ns
1.5:1
7 dB
+5 volts / 180 mA
-5 volts / 45 mA
0 to +75 °C
All specifications above measured at +25 °C
Spectrum Microwave
38166 Old Stage Road
Delmar, Delaware 19940
Phone: 302-846-2750
Fax: 302-846-3888
Page 1 of 1
Web:
www.SpectrumMicrowave.com
Last Revision: 2010-10-13
