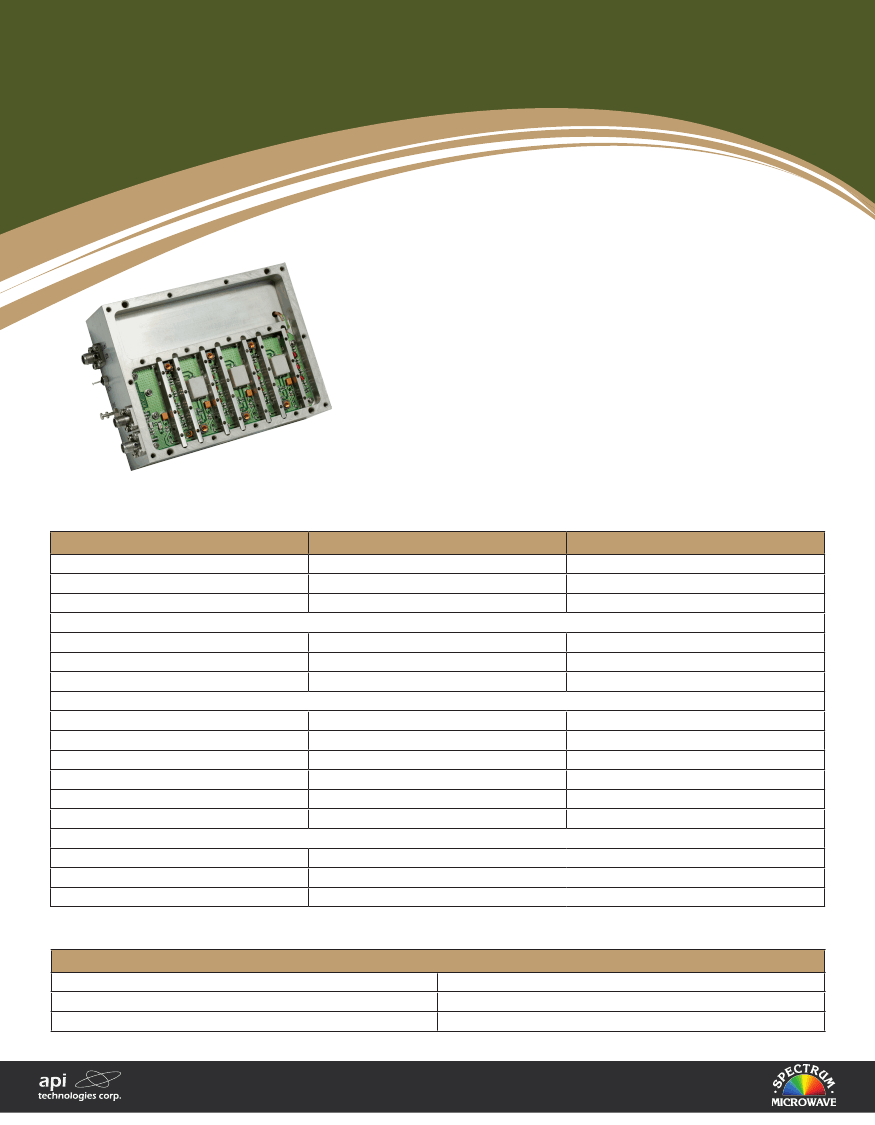

Multiplied Phase Locked Oscillator
400 MHz
Model BXMF1028
FEATURES
• Ultra Low Phase Noise: -163 dBc/Hz
• Multiple RF Outputs
• Automatic Reference Sensing
• DC Voltage Regulation
• Low Current Consumption
• Fully Customizable
These low-phase noise Multiplied PLOs provide the flexibility in the
desired output frequency by utilizing a series of x2 multipliers. With an
output range of 80 to 1600 MHz, these passive multiplier designs can
be configured for most military airborne and ground based applications.
With unparalleled phase noise performance of -163 dBc/Hz (at 100 kHz
offset), the model BXMF1028 is capable of utilizing either its internal
or an external 10 MHz reference. These Multiplied PLOs incorporate
unique features including: DC Voltage Regulation, Automatic Reference
Sensing, Low Current Consumption and Multiple RF Outputs.
Parameter
Output Frequency
Output Power Level
External Reference
Phase Noise at 1 kHz Offset
Phase Noise at 10 kHz Offset
Phase Noise at 100 kHz Offset
Harmonics
Spurious
Input VSWR
Output VSWR
Supply Voltage
Supply Current

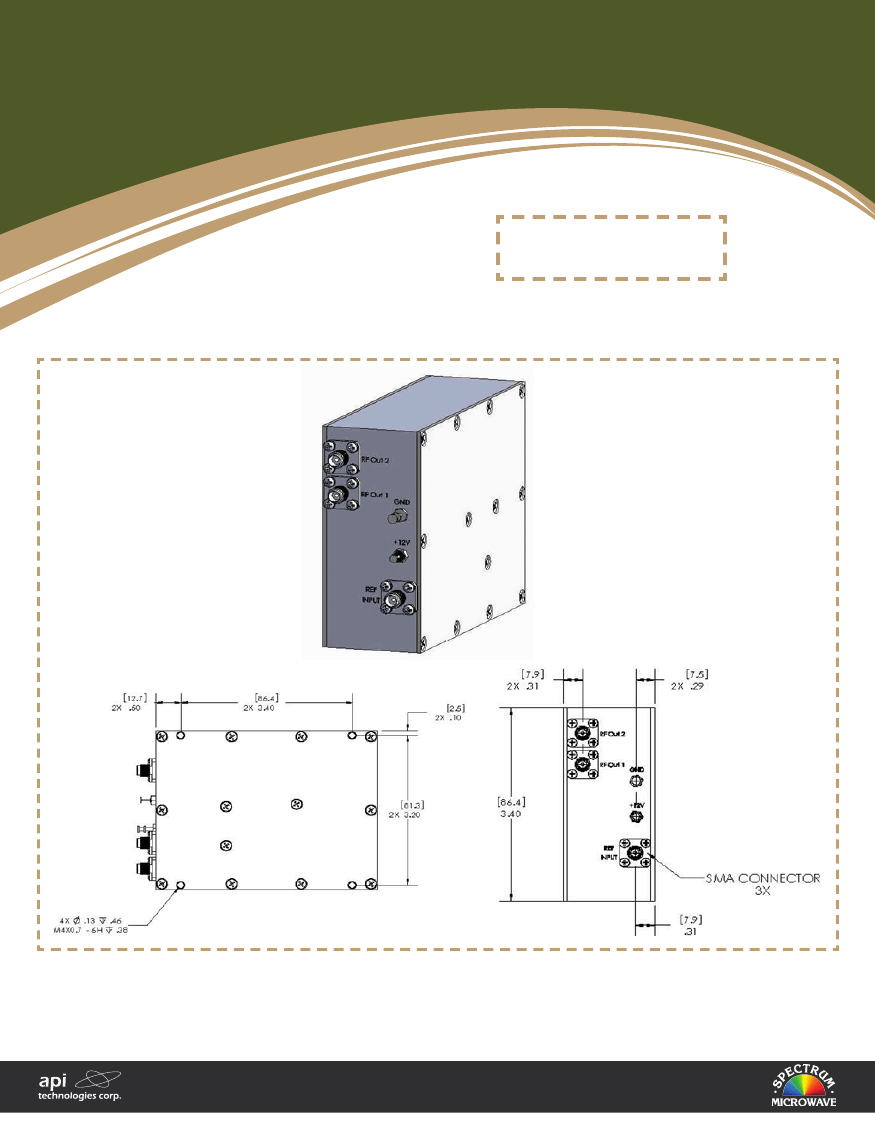

Housing Size
RF Connectors
Operating Case Temp. (Min./Max. Values)
Typical
400 MHz
+6 dBm
10 MHz
-143 dBc/Hz
-161 dBc/Hz
-163 dBc/Hz
-60 dB
-70 dBc
1.75:1
1.75:1
+12 volts
210 mA
5.20" L x 4.00" W x 1.00" H
SMA Female
0°C to +70°C
Min. / Max.
400 MHz
+6 dBm
10 MHz
—
—
—
—
—
2.0:1
2.0:1
+12 volts
210 mA
(typical values measured at +25°C)
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature (Case)
DC Voltage @ 25°C
Rev 3.28.12
-65°C to +125°C
-55°C to +85°C
+18 VDC
apitech.com
• 888.553.7531 •
spectrummicrowave.com
