Photoelectric sensors

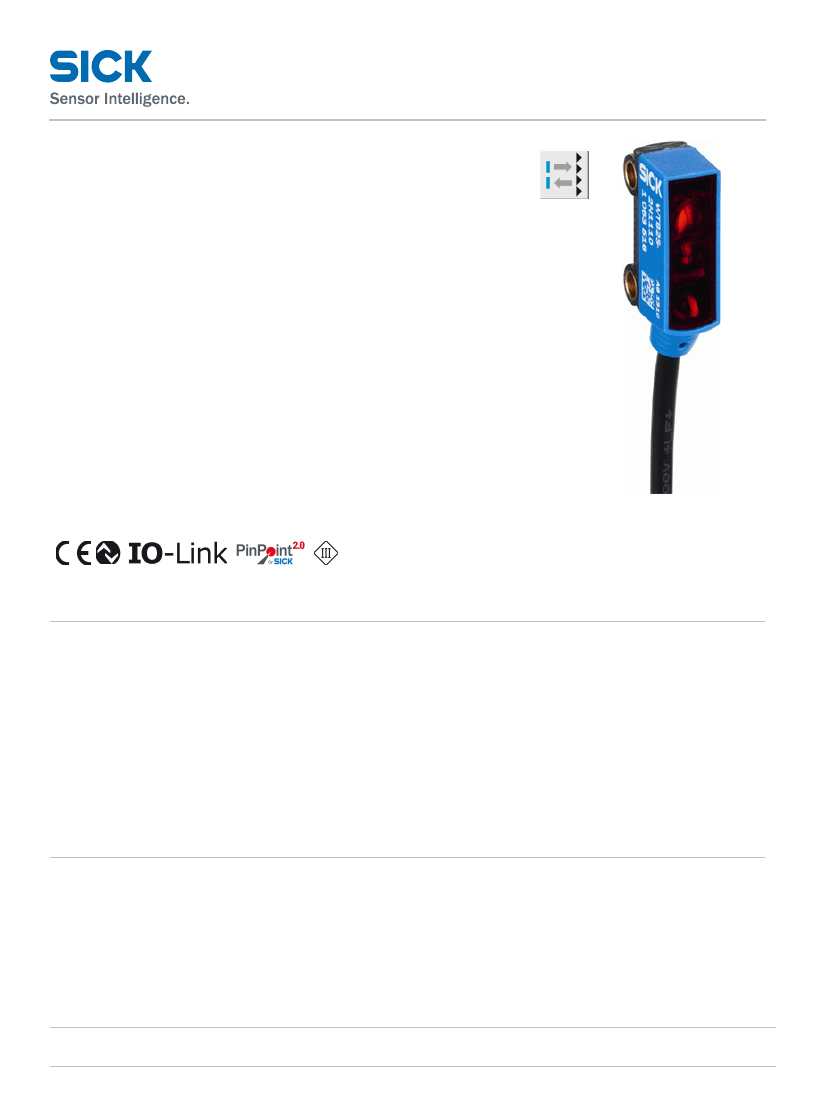

W2S-2, Photoelectric retro-reflective sensor, autocollimation
Type
Part No.
> WL2S-2N1330
> 1064595
At a glance
• Sensing ranges of up to 1.2 m
• Reliable use on reflective tape with a high operating reserve
• No blind spots even at short distances thanks to autocollimation
• Reliable, universal object detection thanks to polarization filter
• Immune to optical interference
Your benefits
• Space-saving integration and extremely small reflectors in rails, joints and gaps
• Increased productivity due to highly repeatable switching points
• PinPoint 2.0 technology for a bright, small, and precise light spot, enabling quick
and easy sensor alignment
• Simple and cost-effective machine design since the sensor can see through small
drill holes and reflective tape can be used
• High reliability and long-term use in machines thanks to a rugged housing and a
45° cable outlet
Illustration may differ
Features
Sensor/detection principle:
Dimensions (W x H x D):
Housing design (light emission):
Sensing range max.:
Sensing range:
Type of light:
Light source:
Wave length:

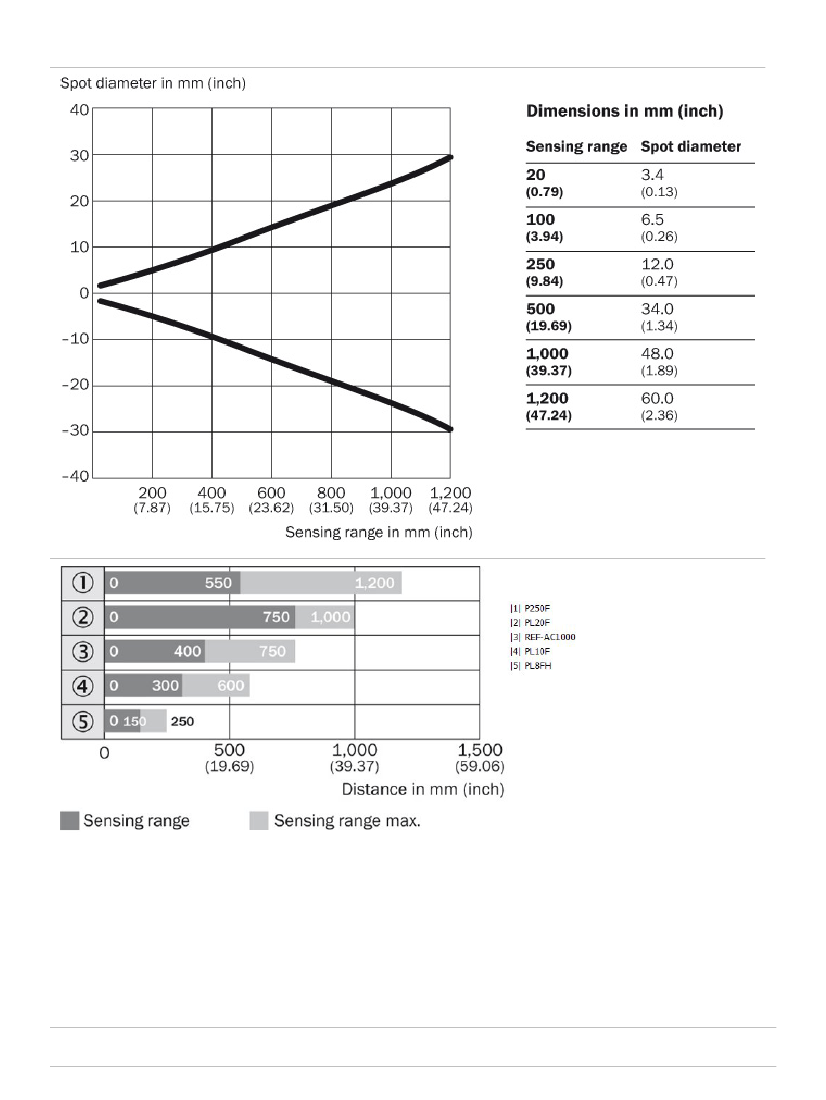

Light spot size (distance):
1) 2)
P250F
3)
Average service life: 100,000 h at T = +25 °C
U
Photoelectric retro-reflective sensor, autocollimation
7.7 mm x 21.8 mm x 13.5 mm
Rectangular
1)
0 m ... 1.2 m
2)
0 m ... 0.55 m
Visible red light
3)
PinPoint LED
640 nm
X Ø 12 mm (250 mm)
Mechanics/electronics
Supply voltage:
Ripple:
Current consumption:
Output type:
Switching mode:
Output current Imax.:
10 V DC ... 30 V DC
2)
≤ 5 Vpp
3)
≤ 20 mA
NPN
Light switching
< 50 mA
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA1/29/2016 4:57:52 AM
Response time:
Switching frequency:
Connection type:
Cable material:
Cable diameter:
Circuit protection:::
Polarisation filter:
Special device:
Optics material:
Enclosure rating:
Ambient operating temperature:
Ambient storage temperature:
UL File No.:
Housing material:
1)
< 0.5 ms
5)
1,000 Hz
6)
Cable, 3-wire, 2 m
PVC
Ø 3 mm
7) 8) 9)
A, B, D
ü
-
PMMA
IP 67
-25 °C ... +50 °C
-40 °C ... +75 °C
NRKH.E181493
ABS/PC, Plastic
4)
2)
3)
4)
5)
6)
Limit values
May not exceed or fall below U tolerances
Without load
Signal transit time with resistive load
With light/dark ratio 1:1
Do not bend below
v
7)
8)
9)
0 °C
A = V connections reverse-polarity protected
B = output reverse-polarity protected
D = outputs overcurrent and short-circuit protected
S

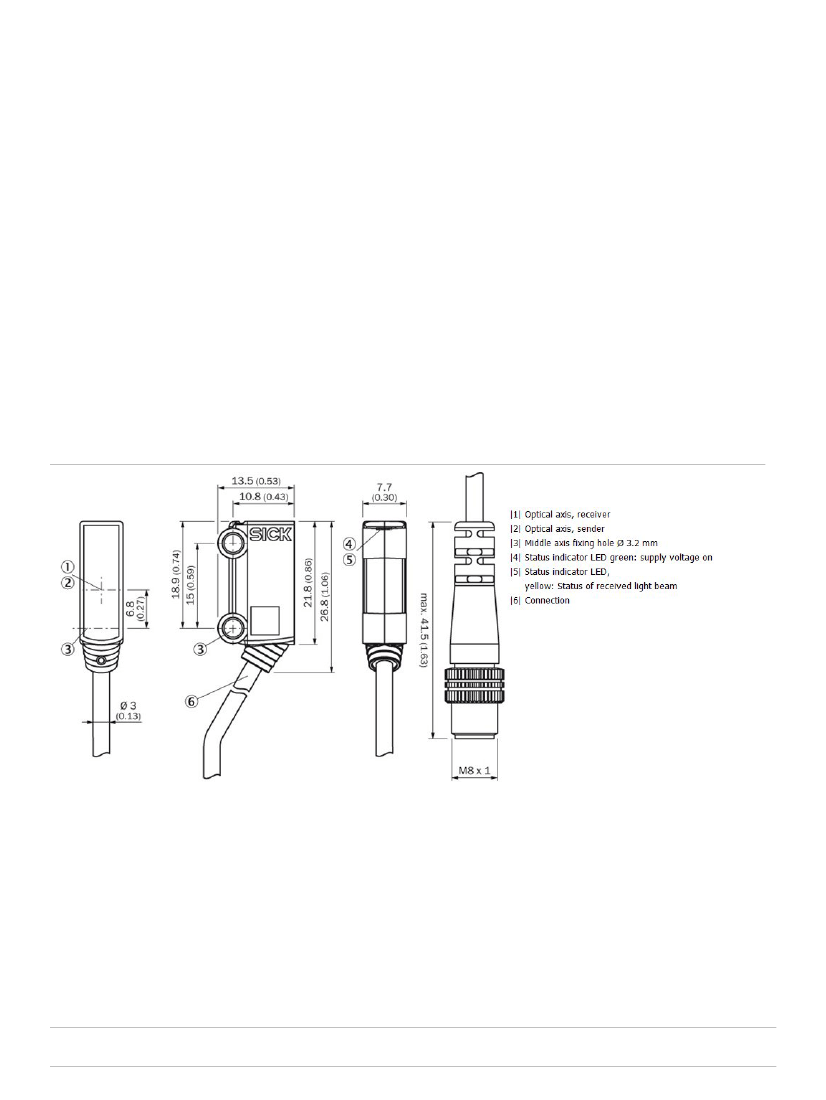

Dimensional drawing
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA1/29/2016 4:57:52 AM
