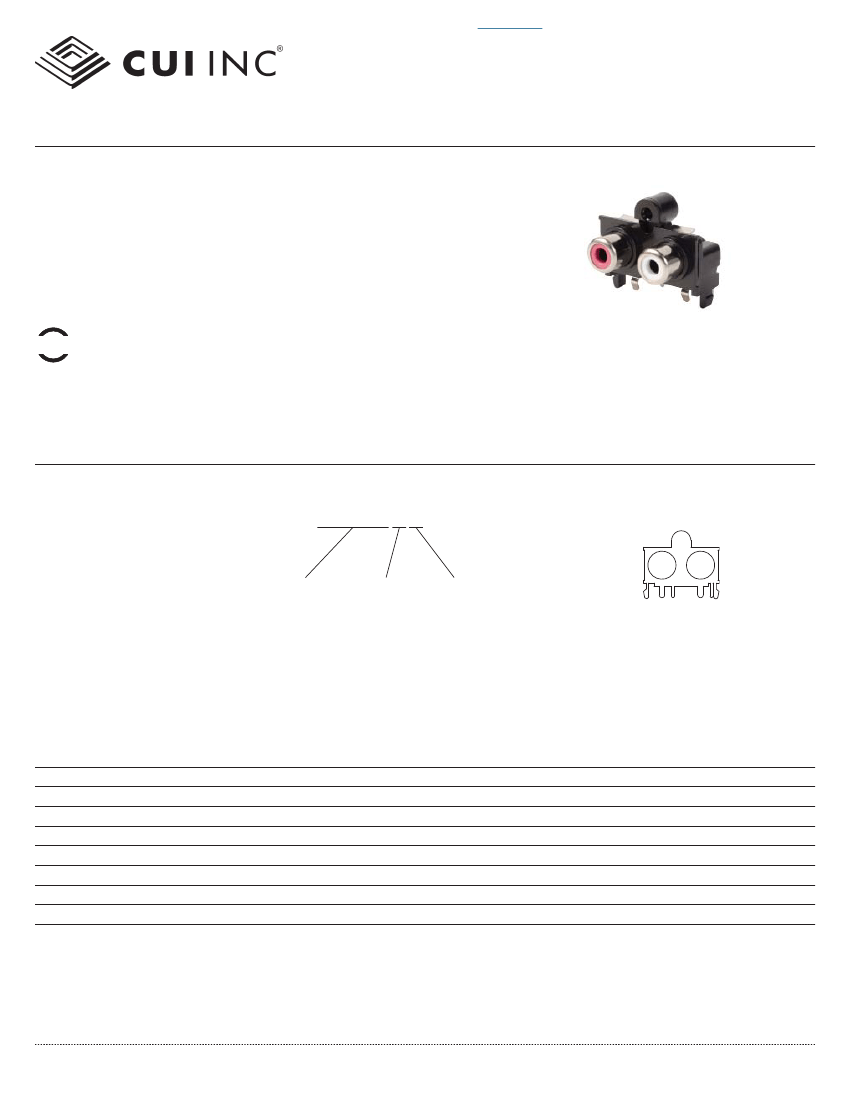

CUI Inc
│
SERIES:
RCJ-21XX
│
DESCRIPTION:
RCA JACK
date
06/07/2012
│
page
2 of 3

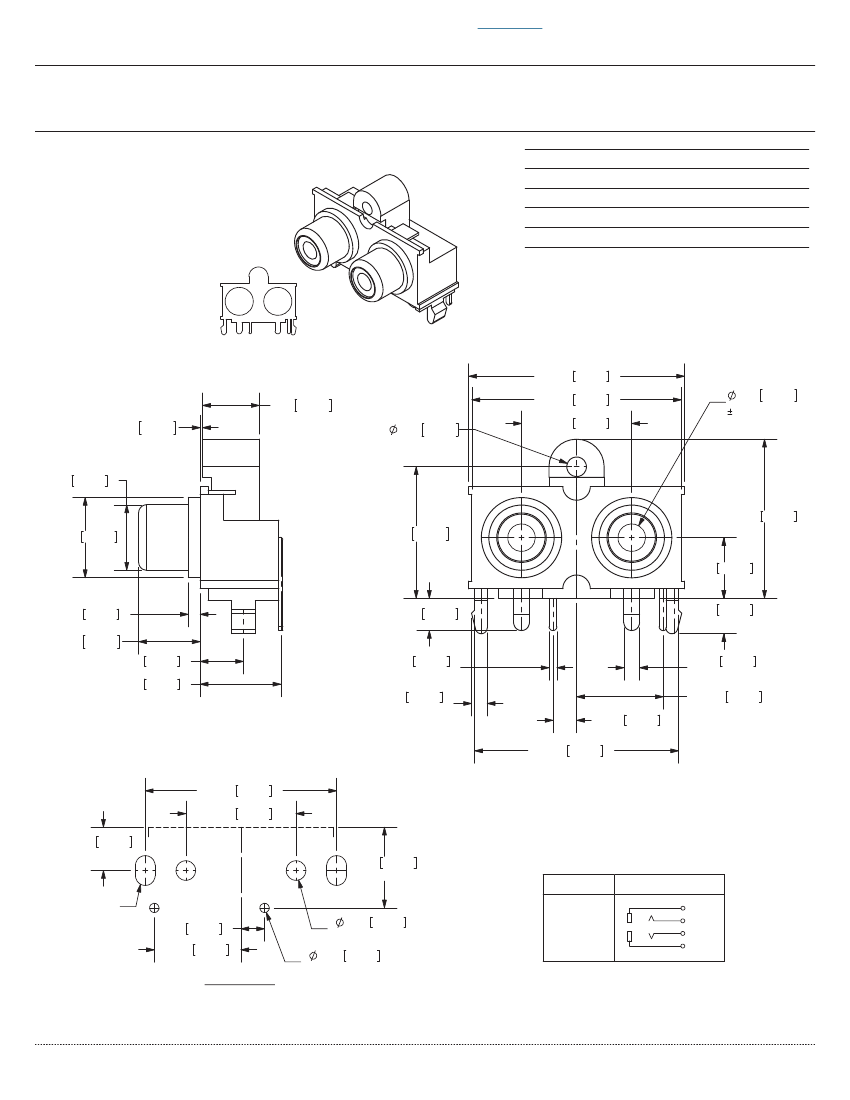

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
±0.3mm (unless otherwise specified)
barrel terminal (1, 3)
center terminal (2, 4)
insulator (X1, X2)
housing
MATERIAL
bronze
bronze
PBT
ABS
PLATING
nickel
tin
X1
X2
27.40 1.079
7.20 0.283
0.30 0.012
2.50 0.098
26.60 1.047
14.00 0.551
3.50 0.138
0.10 (2 PLCS)
8.30 0.327
20.20 0.795
10.20 0.402
16.70 0.657
7.70 0.303
4.50 0.177
(2 PLCS)
2.00 0.079
(2 PLCS)
11.00 0.433
3.00 0.118
25.90 1.020
24.30 0.957
14.00 0.551
5.50 0.217
(4 PLCS)
4
3.00 0.118
11.00 0.433
PCB LAYOUT
TOP VIEW
1.50 0.059
7.80 0.307
5.50 0.217
10.25 0.404
4.10 0.161
1.00 0.039
(2 PLCS)
2.00 0.079
(2 PLCS)
3
2
1
10.25 0.404
(2 PLCS)
Model No.
RCJ-21XX
1
2 X1
4
X2
3
2.50X4.20
(2 PLCS)
2.50 0.098
(2 PLCS)
1.20 0.047
(2 PLCS)
Schematic
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
RCJ-21XX
│
DESCRIPTION:
RCA JACK
date
06/07/2012
│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
description
initial release
new template applied
date
06/13/2007
06/07/2012
The revision history provided is for informational purposes only and is believed to be accurate.
