PACKAGE MECHANICAL INFORMATION
8-SOIC

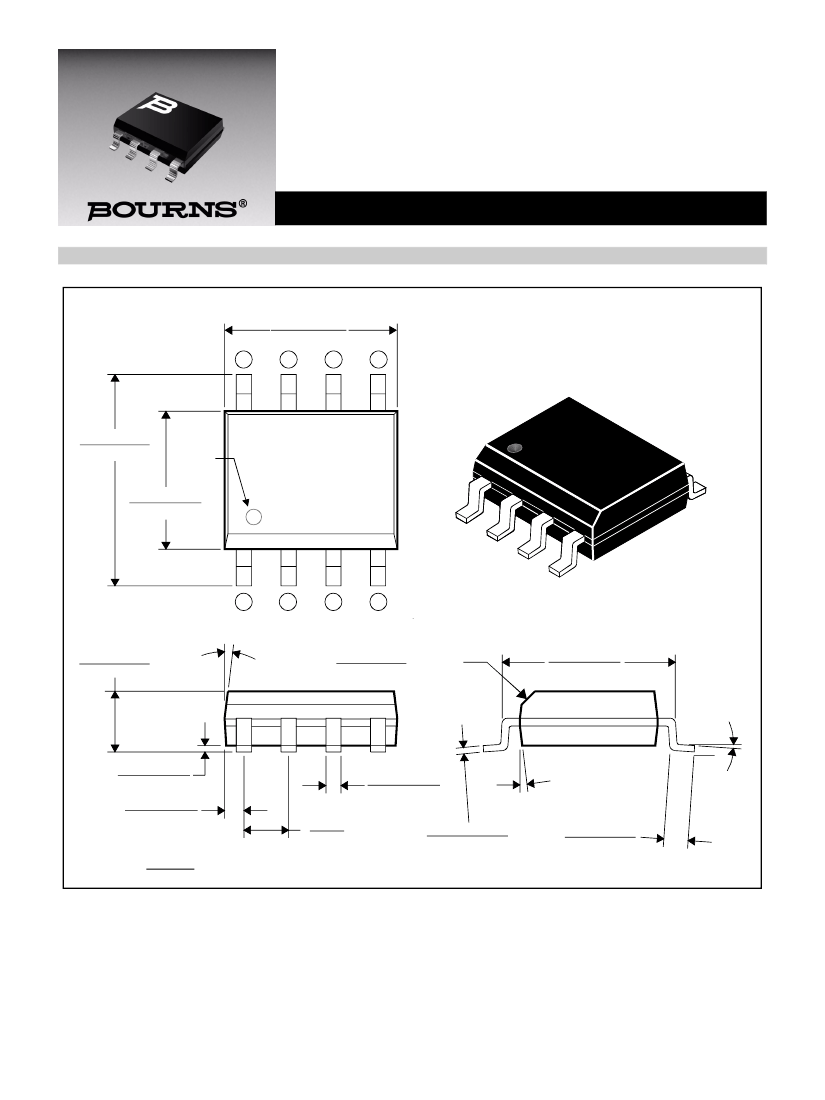

Package Outline Dimensions
8-Pin Plastic Small Outline Surface Mount
4.80 - 5.00
(0.189 - 0.197)
8
7
6
5
MS-012AA, JEDEC Publication 95
5.80 - 6.20
(0.228 - 0.244)
INDEX
3.81 - 4.00
(0.150 - 0.157)
1
2
3
4
1.35 - 1.75
(0.053 - 0.069)
7° NOM
3 Places
0.25 - 0.50 x 45° NOM
(0.010 - 0.020)
4.60 - 5.21
(0.181 - 0.205)
0.102 - 0.203
(0.004 - 0.008)
0.28 - 0.79
(0.011 - 0.031)
Pin Spacing
1.27
(0.050)
(see Note A)
6 Places
0.36 - 0.51
(0.014 - 0.020)
8 Places
0.190 - 0.229
(0.0075 - 0.0090)
7° NOM
4 Places
4° ±4°
0.51 - 1.12
(0.020 - 0.044)
DIMENSIONS ARE : MILLIMETERS
(INCHES)
NOTES: A.
B.
C.
D.
Leads are within 0.25 (0.010) radius of true position at maximum material condition.
Body dimensions do not include mold flash or protrusion.
Mold flash or protrusion shall not exceed 0.15 (0.006).
Lead tips to be planar within ±0.051 (0.002).
MD-8SOIC-001-b
MAY 2004 — REVISED JANUARY 2006
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
1
8-SOIC
Tape Dimensions
8-Pin Plastic Small Outline Surface Mount Single-Sprocket Tape
3.90 - 4.10
(0.154 - 0.161)
7.90 - 8.10
(0.311-0.319)
1.95 - 2.05
(0.077 - 0.081)
1.50 - 1.60
ø
(0.059 - 0.063)
0.40
(0.016)
0.80
MIN.
(0.031)
5.40 - 5.60
(0.213 - 0.220)
5.10 - 5.30
(0.201 - 0.209)
11.70 - 12.30
(0.461 - 0.484)
6.30 - 6.50
(0.248 - 0.256)
Carrier Tape
Embossment
1.50
ø
(0.059) MIN.
Direction of Feed
0 MIN.
2.00 - 2.20
(0.079 - 0.087)
Cover
Tape
DIMENSIONS ARE : MILLIMETERS
(INCHES)
MD-8SOIC-002-b
2
MAY 2004 — REVISED JANUARY 2006
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
8-SOIC
Reel Dimensions
8-Pin Plastic Small Outline Surface Mount Reel
18.40
MAX.
(0.724)
328.0 - 332.0
(12.91 - 13.07)
176.0 - 180.0
(6.93 - 7.08)
ø
20.20
MIN.
(0.795)
12.8
ø
(0.504 -- 13.5
0.531)
12.40 - 14.40
(0.488 - 0.567)
DIMENSIONS ARE :
MILLIMETERS
(INCHES)
NOTE:
2500 devices per reel.
MD-8SOIC-003-a
MAY 2004 — REVISED JANUARY 2006
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
3
8-SOIC
Recommended Printed Wiring Land Pattern Dimensions
8-Pin Plastic Small Outline Surface Mount Printed Wiring Land Pattern
3.81
(0.150)
5.20
(0.204)
3.00
(0.118)
7.40
(0.291)
1.27
(0.050)
0.60
(0.024)
2.20
(0.086)
DIMENSIONS ARE :
MILLIMETERS
(INCHES)
MD-8SOIC-004-a
4
MAY 2004 — REVISED JANUARY 2006
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
