AP.25F.07.0078A
Specification
Part No.
Product Name
AP.25F.07.0078A

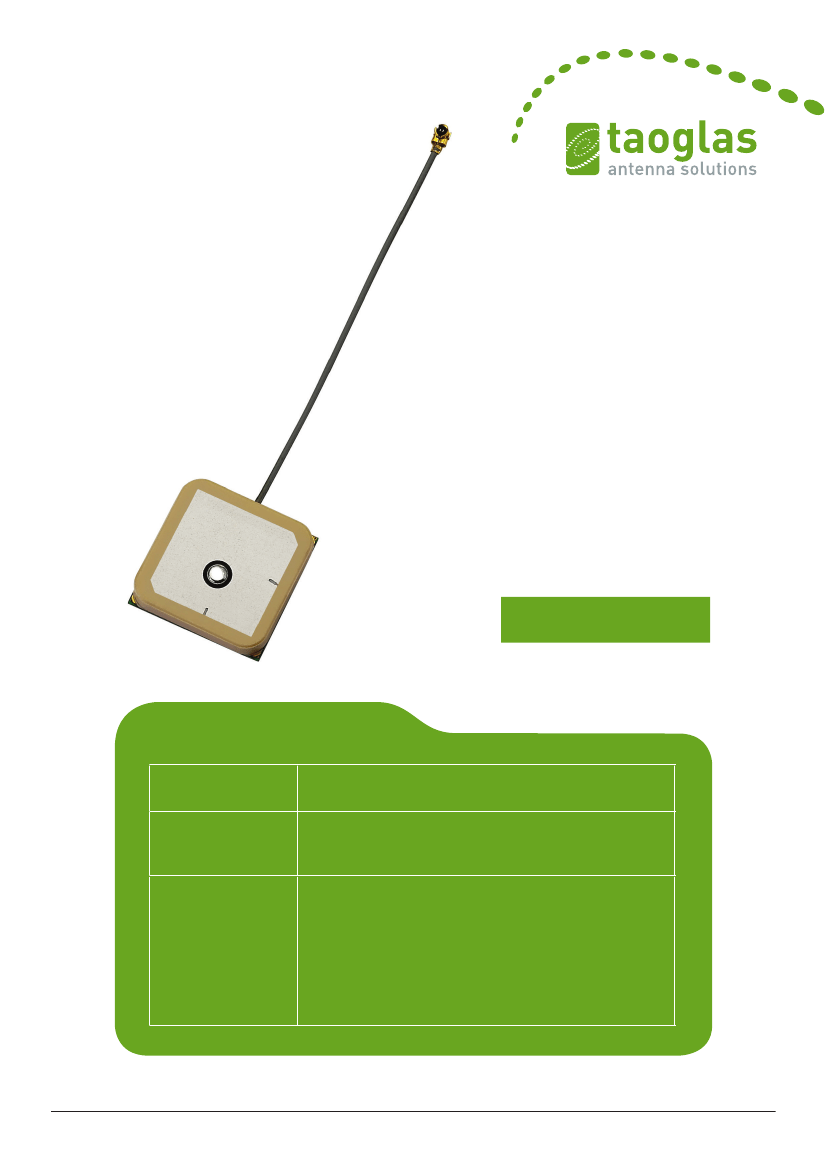

25mm Two Stage GPS Active Patch Antenna Module with
front-end Saw Filter
Industry leading GPS antenna performance
25mm*25mm*8mm (Ground Plane)
78mm Ø1.13 I-PEX MHFI (U.FL)
28dB LNA
Wide Input Voltage 1.8V to 5.5V
Low Power Consumption
ROHS Compliant
Feature
SPE-11-8-030/A
|
page 1 of 11
1. Introduction
The AP.25F has been designed specifically
for embedded (inside device) integration
with GPS receiver modules where there is a
GSM transmitter nearby and risk of
interference and saturation.
The AP.25F combines a 25*25*4mm
advanced low profile ceramic patch
antenna with a two stage LNA and a
front-end SAW filter, with ultra thin
coaxial cable.
Taoglas active antenna modules utilise
XtremeGainTM technology for the highest
sensitivity in the industry. The AP.25F
consists of 2 functional blocks – the LNA
and also the patch antenna.
ANTENNA
SAW Filter
LNA
LNA
I-PEX + cable
The AP.25F has a SAW filter on the front of
it. The main use of the AP.25F would be for
small devices where the GSM transmitter
is close to the GPS antenna, it helps avoid
burn-out of the LNA or the module due to
interference from the GSM transmitter at out
band frequencies.
SPE-11-8-030/A
|
page 2 of 11
2. Specification
2.1 Patch Antenna
Parameter
Frequency
Gain @ Zenith
Polarization
Axial Ratio
Patch Dimension
Specification
1575.42 ± 1.023MHz
+2.0 dBic Typ. @ Zenith
RHCP
3.0dB max. @ Zenith
25*25*4mm
2.2 LNA
Parameter
Frequency
Outer Band Attenuation
Specification
1575.42 ± 1.023MHz
F0=1575.42MHz
F0±30MHz
F0±50MHz
F0±100MHz
Output Impedance
Output VSWR
Pout at 1dB Gain
Compression point
50Ω
2.0 Max
Typ. -2dBm
Min. -6dBm
5dB min.
20dB min.
25dB min.
LNA Gain, Power Consumption and Noise Figure
Voltage
Min. 1.8V
Typ. 3.0V
Max. 5.5V
LNA Gain (Typ)
23dB
28dB
30dB
Power Consumption(mA) Typ
Min. 3mA - Max. 10mA
Min. 8mA – Max. 20mA
Min. 30mA – Max. 40mA
Noise Figure Typ
2.7dB
3.0dB
3.7dB
2.3 Cable* & Connector
Parameter
RF Cable
Connector
Specification
Coaxial Cable Ø1.13 ± 0.1mm, length 80 ± 2.0mm
IPEX MHFI (U.FL)
SPE-11-8-030/A
|
page 3 of 11
3. LNA Gain and Out Band Rejection @3.0V
Tr1
S21 Log Mag 10.00dB/ Ref -40.00dB (F2)
>1 1.5754200 GHz 30.649 dB
60.00
50.00
40.00
1
30.00
20.00
10.00
0.000
-10.00
-20.00
-30.00
-40.00
3
5
7
2
4
6
1
1 Center 1.57542 GHz
IFBW 70 Hz
Span 400 MHz 18/20 Cor
Cg1 Tr1 S21
Cg1 Tr1 S21
Cg1 Tr1 S21
Cg1 Tr1 S21
Cg1 Tr1 S21
Cg1 Tr1 S21
Cg1 Tr1 S21
>1
2
3
4
5
6
7
1.5754200 GHz
1.6054200 GHz
1.5454200 GHz
1.6254200 GHz
1.5254200 GHz
1.6754200 GHz
1.4754200 GHz
30.649
-6.7098
24.584
-5.6354
8.0734
-15.436
1.5714
dB
dB
dB
dB
dB
dB
dB
SPE-11-8-030/A
|
page 4 of 11
4. LNA Noise Figure @3.0V
Mkr1
1.5754 GHz
2.909 dB
30.298 dB
9.000
NFIG
Scale/
1.000
dB
-1.000
40.00
GAIN
Scale/
5.000
dB
-10.00
1
1
Center 1.57542 GHz BW 4 MHz
Tcold 296.50 K
Avgs 16
Points 11
Att 0/ - - dB
Span 3.00 MHz
Loss Off
Corr
5. Total Specification
(through Antenna, LNA, Cable and Connector)
Parameter
Frequency
Gain
Output Impedance
Polarization
Output VSWR
Operation Temperature
Storage Temperature
Relative Humidity
Input Voltage
Antenna
Specification
1575.42 ± 1.023MHz
At 3V: 30 ± 3dBic @ 90°
50Ω
RHCP
Max 2.0
-40°C to + 85°C
-40°C to + 85°C
40% to 95%
Min. 1.8V, Typ. 3.0V, Max. 5V
25*25*8mm
SPE-11-8-030/A
|
page 5 of 11
