ECS-800-10-48B-CGM-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-800-10-48B-CGM-TR

ECS-800-10-48B-CGM-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size515KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-800-10-48B-CGM-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-800-10-48B-CGM-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7191644264
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR, 7 INCH
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.2XB1.0XH0.33 (mm)/L0.047XB0.039XH0.013 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

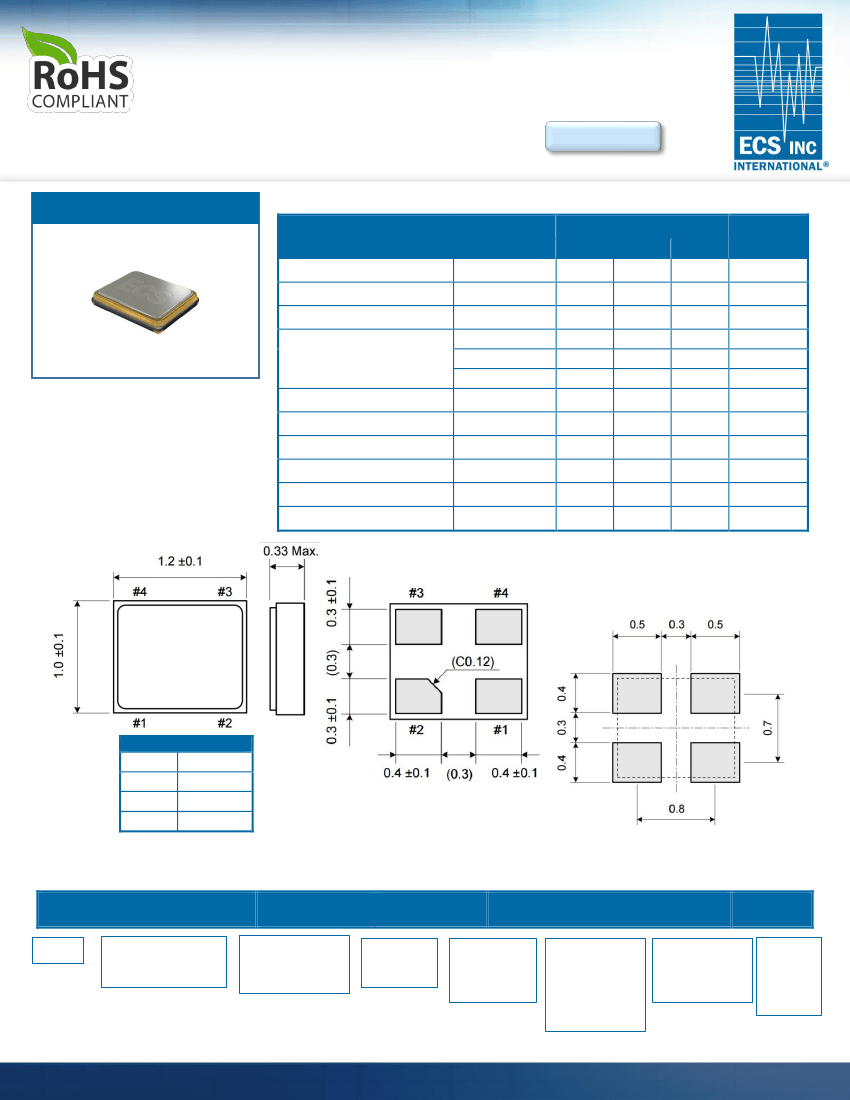

ECX-1048B

SMD CRYSTAL

The ultra-miniature ECX-1048B is a our smallest compact Crystal.

The 1.2 x 1.0 x 0.33 mm ceramic package is ideal

for today’s

SMD manufacturing environment.

ECX-1048B SMD CRYSTAL

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability

Equivalent Series

Resistance (ESR)

@ +25°C (R)

-40 ~ +85°C (TN)

32 ~ 33.0 MHz

33.1 ~ 37.0 MHz

37.1 ~ 80.0 MHz

CONDITIONS

MIN

ECX-1048B

TYP

MAX

UNITS

80.000

± 15

± 20

100

MHz

ppm

100

+85

+105

±2

μW

°C

ppm

32.000

•

Low Profile

1.2 x 1.0 mm Footprint

Extended Temp. Range

RoHS Compliant

IOT/Wearable Applications

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

Specify in P/N

opr

stg

@ +25°C ±3°C

-40

DIMENSIONS (mm)

PAD CONNECTIONS

In/Out

Gnd & Lid

Out/In

Figure 2)

Suggested Land Pattern

Figure 1)

Top, Side, and Bottom views

PART NUMBERING GUIDE: Example ECS-480-10-48B-RTN-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

7 = 7 pF

Other CL’s

available

PACKAGE

Tolerance

-48B =

ECX-1048B

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

CUSTOM OPTIOND

* Stability

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

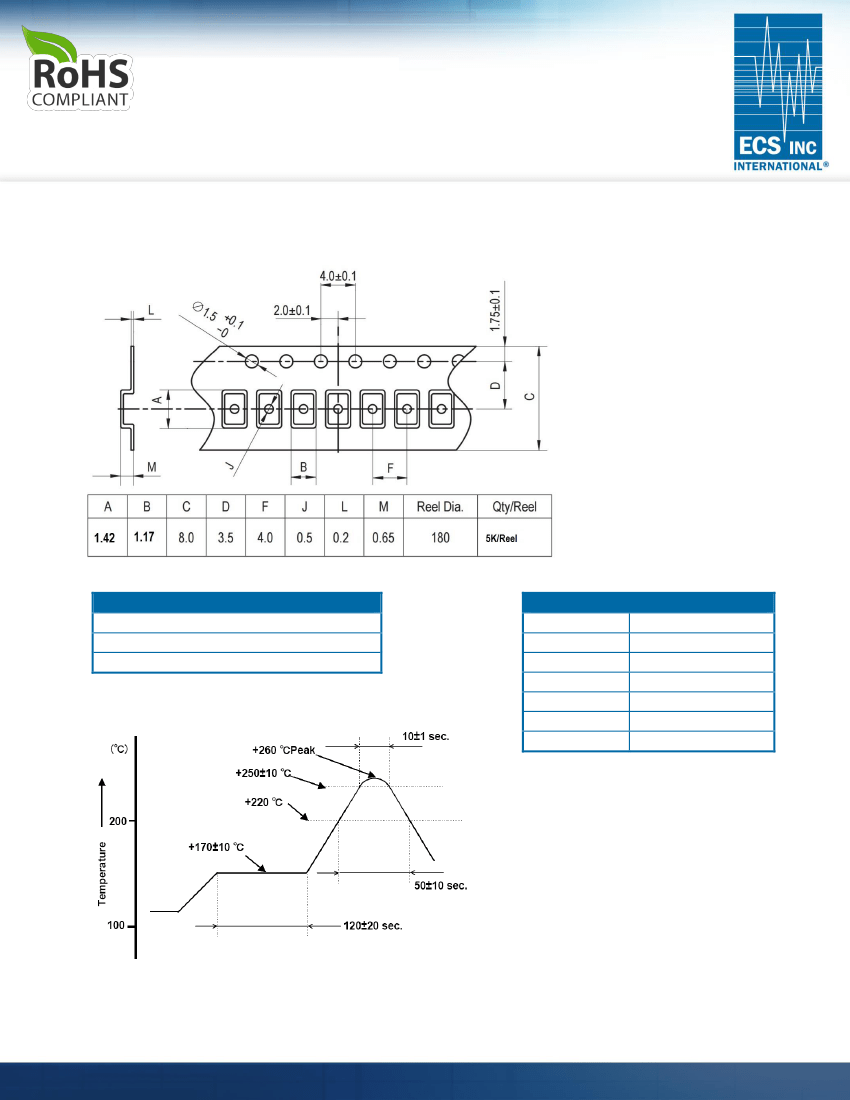

PACKAGING

Temp Range

TR =

Tape

& Reel

5K/Reel

ECS

480 = 48.000 MHz

See P/N Guide

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

*Contact ECS for availability

Rev.2017

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
