853104 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 853104

853104: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

853104 Overview

Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,

853104 Parametric

Parameter Name	Attribute value
Objectid	2004903607
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	50 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Board mount options	PEG
body width	0.606 inch
subject depth	0.53 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7228 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

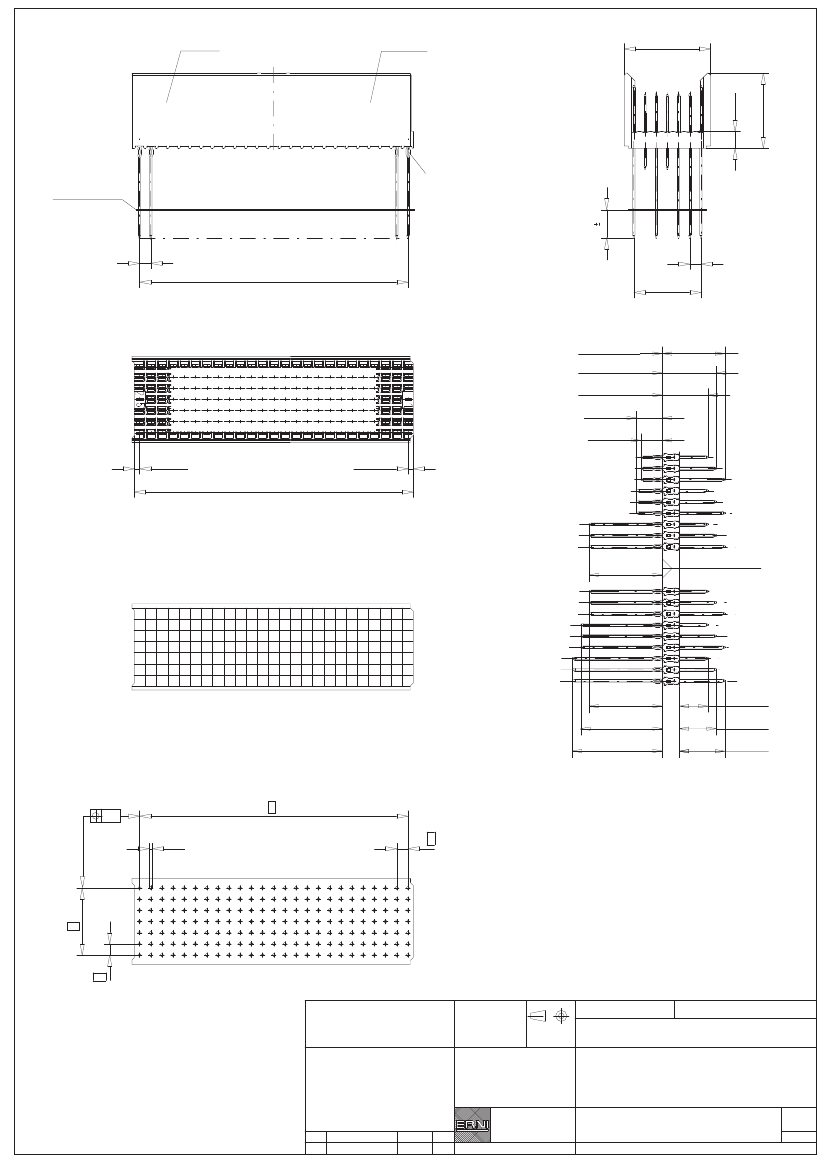

Ident-Nr.

Date Code

15,4

EE Zone für durchkontaktierte

Löcher ø0.6

±0.05

Ausrichtstreifen

Alignment strip

compliant zone for thru hole

ø 0.6±0.05

24 x 2 =

6x2=

0,5

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

1 max.

50 max.

1 max.

Bestückungsplan -

contact layout

±0.3

Bezugsebene Tiefe

Datum plane depth

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

±0.2

14.5

±0.2

5.3

±0.1

6.8

8.3

±0.1

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side)

0.1

alle Löcher

all holes

24 x 2 = ( 48 )

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

±0,05

Diameter of finished plated-through hole

ø 0,7

±0,02

Bohrungsdurchmesser des Loches

ø 0,7

±0,02

Diameter of drilled hole

6 x 2 = ( 12 )

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 1076-4-101

Missing information and dimensionsper IEC 1076-4-101

Information: P2, R1 Level 2, 3

siehe Bestückungsplan/

see contact layout

Anforderungsstufe 2 /

Consider protection memo from DIN 34

Tolerances

All Dimensions

in mm

Scale

2:1

class 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet Messerleiste B

ERmet Male Wide Type B

www.ERNI.com

Index

Date

H:00038335.SZN

853104

ERM

13,45

-0,1

XXXXXXX

ERNI

853104
