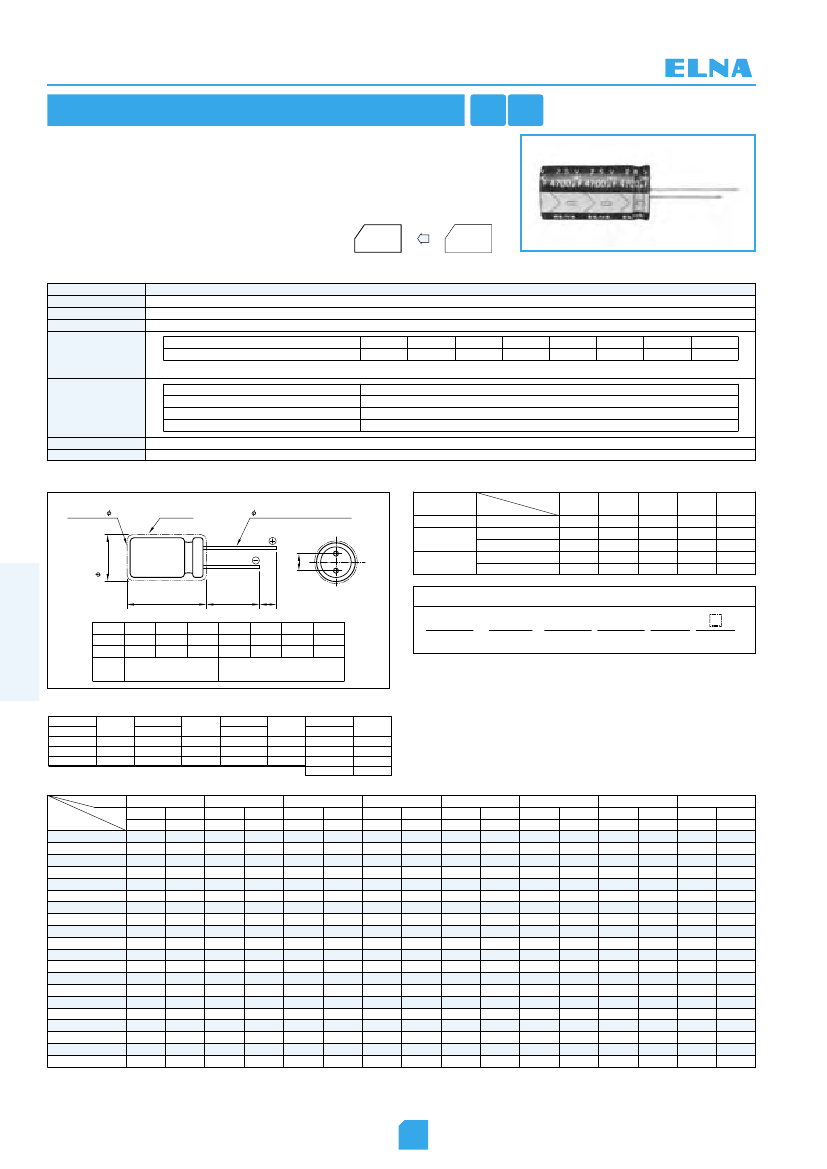

R2O-25V101MF3: DescriptionMINIATURE ALUMINUM ELECTROLYTIC CAPACITORS FOR AUDIO; File Size174KB，2 Pages; ManufacturerETC2

Download Datasheet View All

R2O-25V101MF3 Overview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS FOR AUDIO

Preview

Download Datasheet

View All

R2O

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS FOR AUDIO

GREEN

CAP

For

audio

®

Miniature Standard Capacitors for Audio (PURECAP)

• A standard grade capacitor for excellent sound quality.

• A new foil and refined electrolyte allow improved tone quality.

• New type standard miniaturized capacitor for audio,

using synthetic mica paper for the separator.

Miniaturized

R2O

ROB

Specifications

Item

Category temperature range (˚C)

Tolerance at rated capacitance (%)

Performance

40 to 85

20

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C: Rated capacitance(µF); V: Rated voltage(V)

Rated voltage (V)

tan (max.)

0.02 is added to every 1000µF increase over 1000µF

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

1000 hours

The initial specified value or less

Within 20% of initial value

200% or less of the initial specified value

6.3

0.30

10

0.25

16

0.19

25

0.16

35

0.14

50

0.12

63

0.10

(20˚C,120Hz)

(20˚C)

100

0.10

(20˚C,120Hz)

Leakage current (µA)

Tangent of loss angle

(tan )

Endurance (85˚C)

(Applied ripple current)

Shelf life (85˚C)

Applicable standards

Test time : 500 hours. Other have same as endurance. Voltage application treatment

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Outline Drawing

Vent(except 5)

Sleeve

d 0.05 clad steel wire(tinned)

Unit: mm

Coefficient of Frequency for Rated Ripple Current

Rated voltage(V)

6.3 to 16

Frequency(Hz)

CV(µFxWV)

50 . 60

0.80

120

1

1k

1.1

1.5

1.2

1.6

1.2

10k

1.2

1.7

1.3

1.9

1.3

100k

1.2

1.7

1.3

1.9

1.3

D 0.5max.

25 to 35

F 0.5

50 to 100

All CV value

1000

Aluminum Electolytic Capacitors

for Audio

Case

ø DxL(mm)

L

max.

15min.

5

min.

Part numbering system (example: 25V100µF)

18

7.5

0.8

øD

F

ød

5

2.0

0.5

6.3

2.5

0.5

1.5

8

3.5

0.6

10

5.0

0.6

12.5

16

5.0

7.5

0.6

0.8

1.5 for L16 max.

2.0 for L20 min.

R2O

Series code

—

25

Rated voltage

symbol

V

101

M

F3

Casing

symbol

Additional

symbol

#

Rated capacitance

Capacitance

symbol

tolerance symbol

Case symbol

5x11

6.3x11

8x11.5

Casing

Symbol

E3

F3

G3

Case

ø DxL(mm)

10x12.5

10x16

10x20

Casing

Symbol

H3

H4

H5

Case

ø DxL(mm)

12.5x20

12.5x25

16x25

Casing

Symbol

I5

I6

J6

Case

ø DxL(mm)

16x31.5

16x35.5

18x35.5

18x40

Casing

Symbol

J7

J8

K8

K9

Standard Ratings

Rated voltage(V)

6.3

Case

ø DxL(mm)

Rated ripple

current

10

Case

ø DxL(mm)

Rated ripple

current

16

Case

ø DxL(mm)

Rated ripple

current

25

Case

ø DxL(mm)

Rated ripple

current

35

Case

ø DxL(mm)

Rated ripple

current

50

Case

ø DxL(mm)

Rated ripple

current

63

Case

ø DxL(mm)

Rated ripple

current

100

Case

ø DxL(mm)

Rated ripple

current

Rated

capacitance(µF)

Item

0.47

1

2.2

3.3

4.7

10

22

33

47

100

220

330

470

1000

2200

3300

4700

6800

10000

15000

—

5x11

6.3x11

8x11.5

10x12.5

12.5x20

16x25

16x31.5

18x35.5

mArms

—

85

150

180

260

450

890

1050

1550

1750

2150

2700

—

5x11

6.3x11

8x11.5

10x16

12.5x20

12.5x25

16x25

16x31.5

18x35.5

—

mArms

—

55

65

95

165

240

280

540

970

1250

1650

2050

2550

—

5x11

6.3x11

8x11.5

10x12.5

10x20

12.5x25

16x25

16x31.5

18x35.5

—

mArms

—

50

60

75

120

220

270

390

680

1200

1600

2050

2550

—

5x11

6.3x11

8x11.5

10x12.5

10x16

12.5x20

16x25

16x31.5

18x35.5

—

mArms

—

55

70

80

140

240

350

460

850

1500

1900

2450

—

5x11

6.3x11

8x11.5

10x12.5

10x16

10x20

12.5x25

16x31.5

18x35.5

—

mArms

—

25

40

60

75

100

170

310

420

540

1750

2250

—

5x11

6.3x11

8x11.5

10x16

10x20

12.5x20

16x25

16x35.5

—

mArms

9

14

20

25

30

40

65

90

110

190

370

490

670

1250

2100

—

5x11

6.3x11

8x11.5

10x12.5

10x20

12.5x20

12.5x25

16x31.5

—

mArms

—

30

45

80

100

140

250

440

620

810

1500

—

5x11

6.3x11

8x11.5

10x12.5

10x16

12.5x20

16x25

16x31.5

—

mArms

10

15

20

25

30

55

95

140

180

340

640

780

1000

—

(Note) Rated ripple current : 85˚C, 120Hz

CAT.No.2007/2008E(2007.10.1)

104

NOTE

Design, Specifications are subject to change without notice.

Ask factory for technical specifications before purchase and/or use.
