Features
■
Maximum height of 2.0 mm
■
Current up to 3.6 A
■
RoHS compliant*
Applications
■
Input/output of DC/DC converters
■
Power supplies for:
*R
oH
S
CO
M
100
LE
AD
FR
EE
• Portable communication equipment
• Camcorders
• LCD TVs

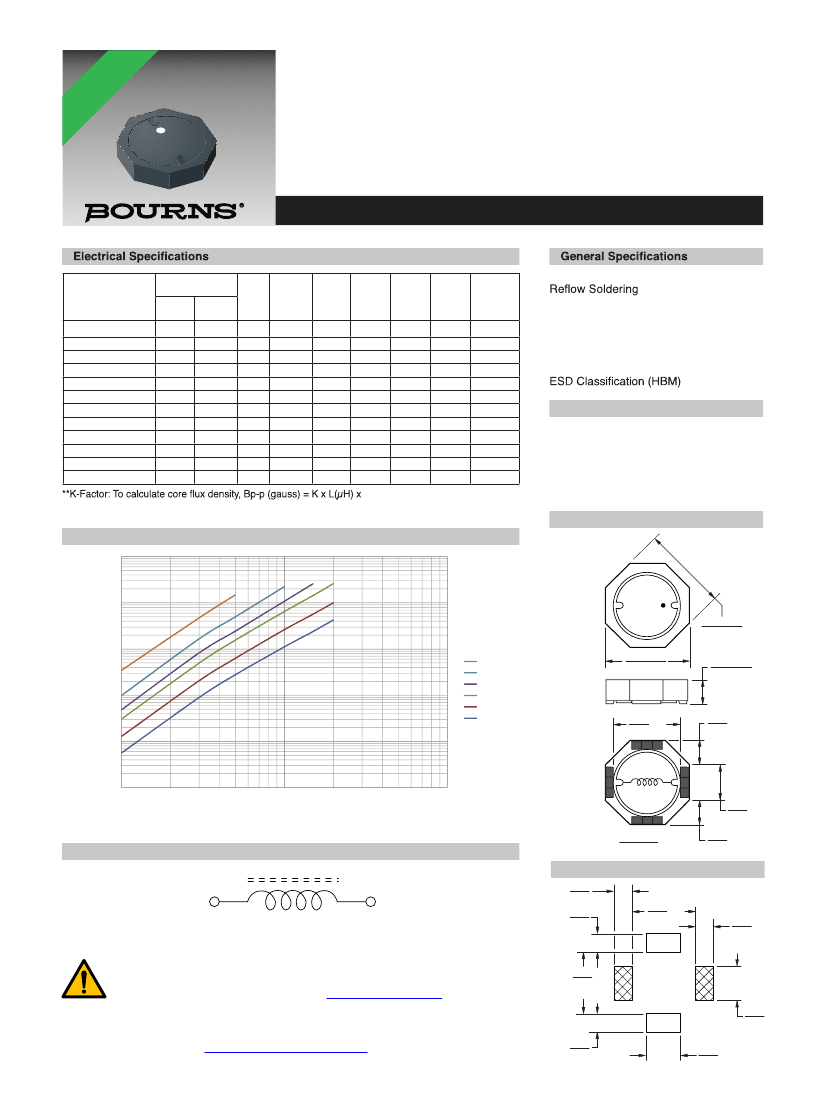

SRU6018 Series - Shielded SMD Power Inductors
Test Voltage ....................................0.1 V
.. 230 °C, 50 sec. max.
Operating Temp. .........-40 °C to +125 °C
(Temperature rise included)
Storage Temp. ............-40 °C to +125 °C
Resistance to Soldering Heat
............................... 260 °C for 10 sec.
Moisture Sensitivity Level ...................... 1
.................. N/A
Materials
Core ....................Ferrite DR and RI core
Wire ............................Enameled copper
Terminal ....................................Ag/Ni/Sn
Rated Current..Ind. drop 35 % typ. at Isat
Temp. Rise.......30 °C max. at rated Irms

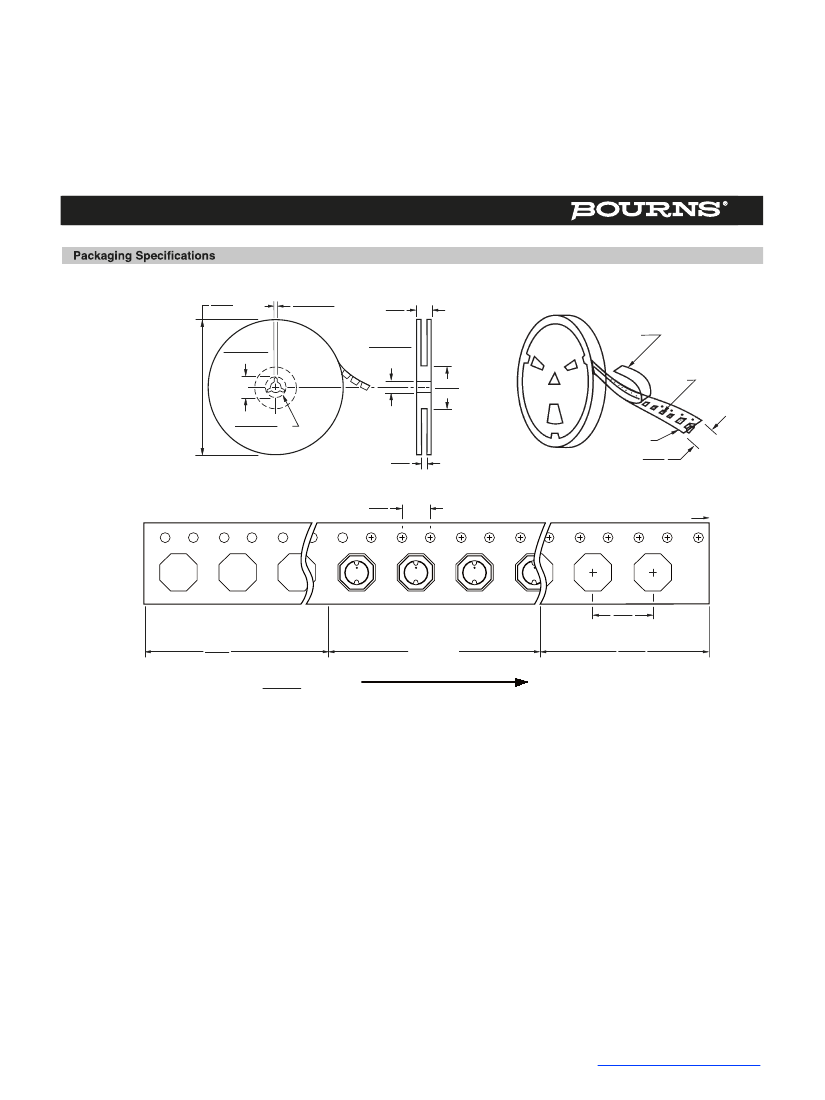

Packaging .................... 800 pcs. per reel
Product Dimensions
Ro VE LEA
HS RS D
CO ION FRE
M SA E
PL R
IA E
NT
*
SRU6018-1R2Y
SRU6018-1R8Y
SRU6018-3R3Y
SRU6018-4R7Y
SRU6018-6R8Y
SRU6018-100Y
SRU6018-150Y
SRU6018-220Y
SRU6018-330Y
SRU6018-470Y
SRU6018-680Y
SRU6018-101Y
Bourns
Part Number
Inductance
@ 100 KHz
L
Tol.
(µH)
(%)
Δ
I (peak-to-peak ripple current, A),
determine core loss from
Core Loss vs. Flux Density
plot.
1.2
1.8
3.3
4.7
6.8
10
15
22
33
47
68
100
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
Q
Ref.
8
8
8
8
8
12
12
14
10
12
12
20
Test
Freq.
(MHz)
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
SRF
Typ.
(MHz)
130
90
60
50
40
30
24
18
16
14
12
9
RDC
Max.
(mΩ)
25
28
36
52
60
88
130
190
255
410
600
715
I rms
Max.
(A)
3.60
3.00
2.50
2.20
1.90
1.70
1.50
1.20
1.00
0.80
0.62
0.50
2.80
2.30
1.70
1.40
1.20
1.00
0.80
0.65
0.58
0.46
0.36
0.34
I sat
Typ.
(A)
**K-
Factor
707
579
424
374
303
236
193
163
130
108
90
77
Core Loss vs. Flux Density
1000
SRU6018
100
100
6.20 ± 0.30
(.244 ± .012)
1.80 ± 0.20
(.071 ± .008)
Core Loss (mW)
10
1 MHz
500 KHz
300 KHz
200 KHz
100 KHz
50 KHz
6.50 ± 0.30
(.256 ± .012)
1
4.90
TYP.
(.193)
0.1
2.15
(.085)
TYP.
0.01
100
1000
10000
Flux Density Bp-p (gauss)
2.20
(.087)
TYP.
Electrical Schematic
DIMENSIONS:
MM
(INCHES)
2.15
TYP.
(.085)
Recommended Layout
REF.
1.10
(.043)
1.10
(.043)
REF.
4.90
REF.
(.193)
1.10
(.043)
REF.
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on
the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf
4.90
(.193)
REF.
2.40
(.094)
REF.
1.10
(.043)
REF.
2.40
REF.
(.094)
