THUNDER Overview

Interface Base Board for TAO-3530 Series

Preview

Download Datasheet

View All

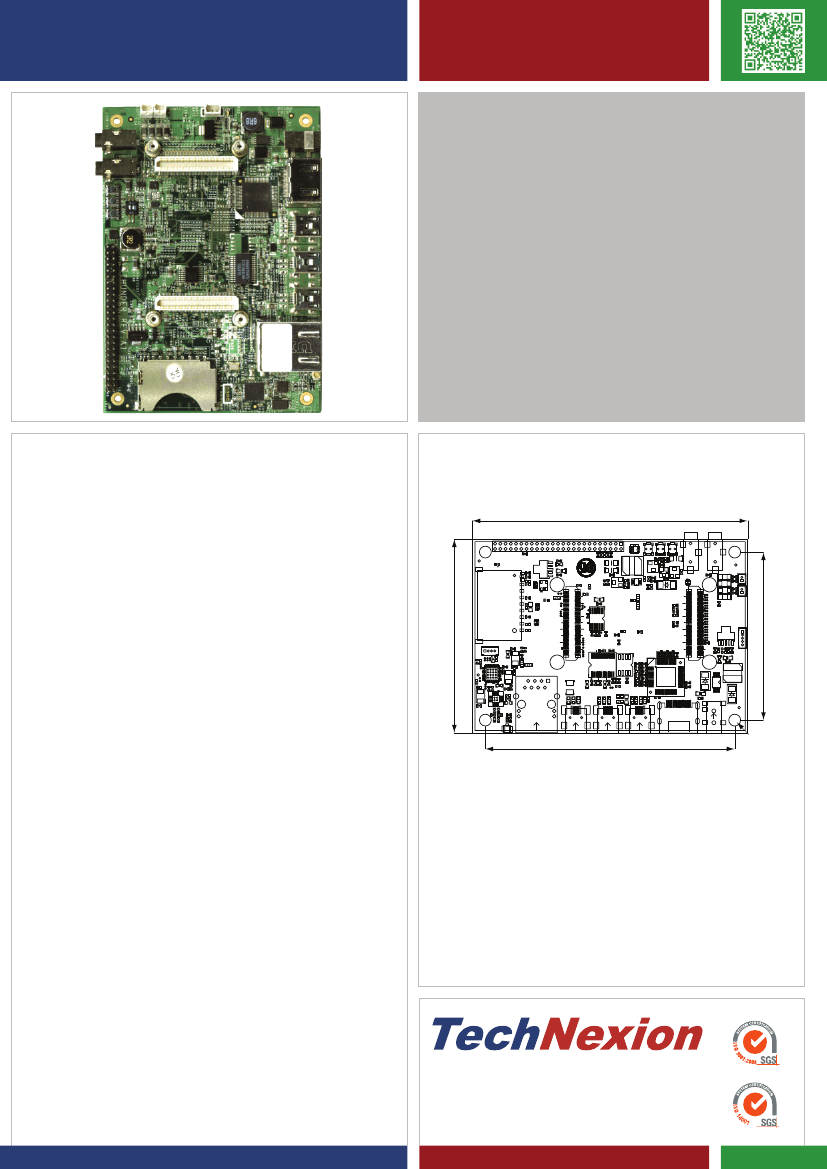

Thunder

Interface Base Board

for TAO-3530 Series

Make TAO-3530 mobile by using the onboard

battery interface.

Connect a 4.3” LCD Flatpanel display with

touchscreen interface.

Create your own multimedia application by

using the SD cardreader, audio, speakers and

HDMI/DVI interface.

System

System on module

Compatible with TAO-3530 by two

100 pin NAIS connectors (B1,

B2)

Dimensions

units in mm

105

Interfaces

Connectors

Input power

5VDC

Environmental and Mechanical

Temperature

Humidity

Dimensions

Weight

Shock

Vibration

Thunder

Base board for TAO series

Development kits available

Phone: +886-2-8227-3585

E-mail: sales@technexion.com

Web:

http://www.technexion.com

2012-01. All specifications are subject to change without notice.

Commercial: 0° to 50° C

10-90%

105 x 74 mm

4⅛ x 2⅞ inch

42 grams

50G / 25ms

20G / 0-600 Hz

Order Information

Power

Expansion header

B50

A50

1 G 3

G 1

WPCD

B50

A50

2 mini-USB hosts (13)

1 mini-USB device/ OTG (12)

LAN connector (14) by SMSC 9500

SD card slot (17)

stereo audio in/out, 3.5 mm (5,

2W amplified speaker (7,

battery interface (9)

TTL LCD & touchpanel for 4.3” LCD

DVI-D signal by HDMI connector(11)

SPI, RS-232, UART, I

C, GPIO (1)
