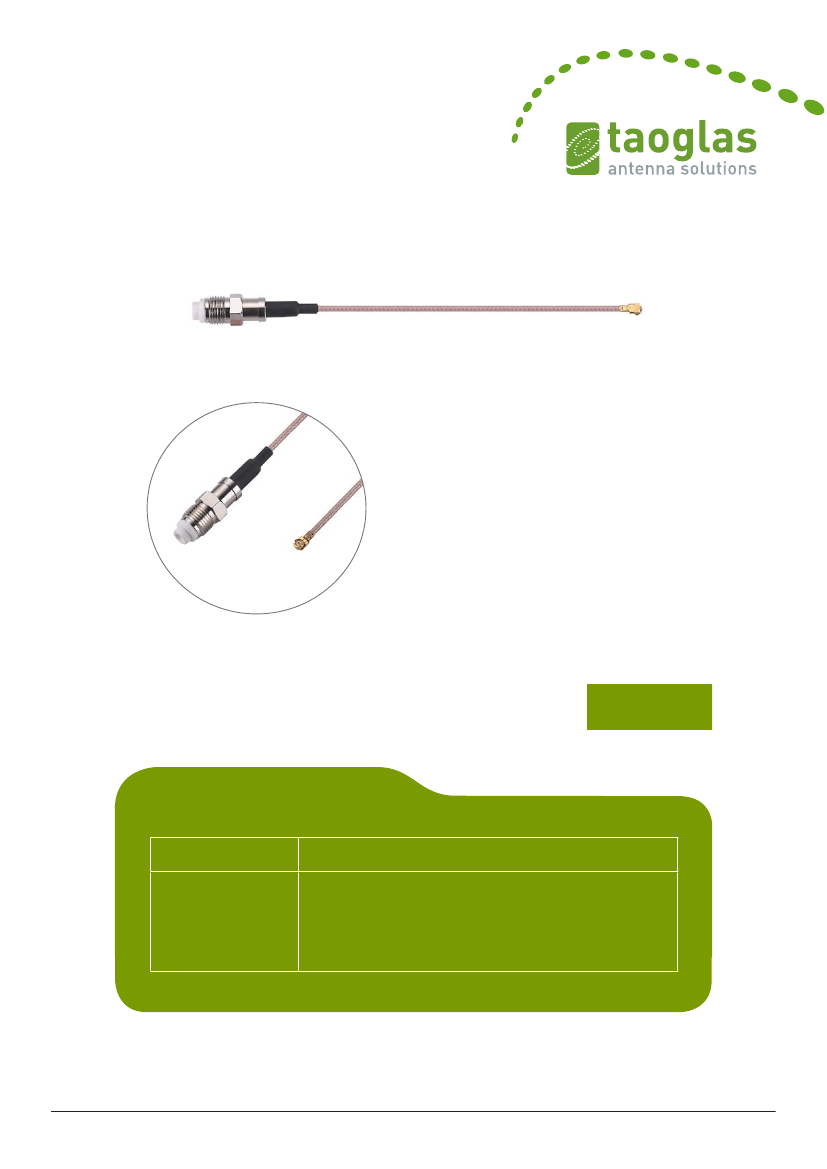

Close-up of CAB.695
CAB.695
Specification
Part No.
Product Name
CAB.695
CAB.695
Taoglas Cable Assembly
IPEX MHFI to FME Bulkhead Straight Jack
RG-178 100mm DC-200MHz
SPE-13-8-084/A/WY
|
page 1 of 6
1. Cable Insertion Loss
0
-1
-2
(dB)
-3
CAB.695
-4
-5
500
1000
1500
2000
2500
3000 (MHz)
(Note: FME connector operation frequency range:DC-200MHz)
SPE-13-8-084/A/WY
|
page 2 of 6
2. RG.178 Cable Specification

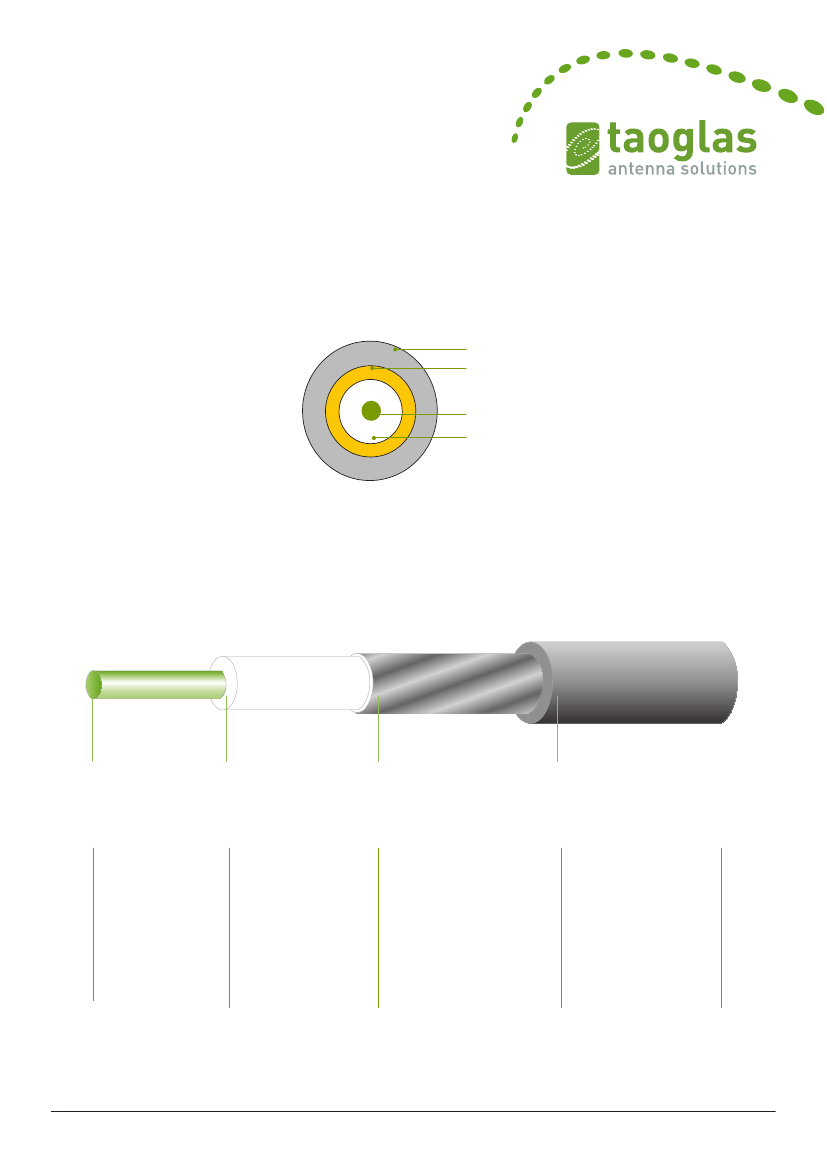

2.1 Drawing - Cross Section
Jacket
Braid Shield
Conductor
Insulation
2.2 Structure and Dimensions
Conductor
Insulation
Braid Shield
Jacket
Conductor
• Material - Silver
Coated Copper
• 30AWG(7/0.102mm)
• Diameter - 0.31mm
Insulation
• Material - FEP
• Avg. Thickness -
0.28mm
• Diameter - 0.86 ±
0.03mm
• Colour - Clear
Braid Shield
• Material - Silver
Coated Copper
• Structure -
16/6/0.050mm ± 0.003
• Coverage - 95%
• Diameter - 1.30 ± 0.04mm
Jacket
• Material - FEP
• Avg. Thickness - 0.25mm
• Diameter - 1.80 ± 0.06mm
• Color - Brown
SPE-13-8-084/A/WY
|
page 3 of 6
2.3 Electrical & Physical Specification
Specification
Item
Rating Temp Voltage
Insulation Resistance
Conductor Resistance
Dielectric Strength
Spark test
Insulation
30 AWG
105°C 30V UL 1979
3000 MEGA OHM-KM Min.
838 OHM/KM/20°C Max.
AC 1.0 KV/minute
2.5 KV
Unaged
Aged
Jacket
Unaged
Aged
Tensile Strength
Elongation
Tensile Strength
Elongation
Tensile Strength
Elongation
Tensile Strength
Elongation
Nom. Impedance
Nom. Capacitance
Nom. Vel. Of Prop.
VSWR (0-6GHz)
Attenuation (dB/1M)
50 ± 3 Ohms
95.8 ± 3 pF/m
69.5%
Max 1.3
1.0GHz
2.0GHz
3.0GHz
4.0GHz
5.0GHz
6.0GHz
1.70
2.50
3.20
3.60
3.95
4.80
2500 PSI Min. (1.76Kg/mm²)
200% min.
Unaged Min 75% (168HRS*232°C)
Unaged Min 75% (168HRS*232°C)
2500 PSI Min. (1.76Kg/mm²)
200% min.
Unaged Min 75% (168HRS*232°C)
Unaged Min 75% (168HRS*232°C)
SPE-13-8-084/A/WY
|
page 4 of 6
3. Technical Drawing
3.1 CAB.695
Name
1
2
3
4
FME (F)
RG178
IPEX MHFI
Heat Shrink Tube
Material
Brass
FEP
Brass
PE
Finish
Ni Plate
Brown
Gold
Black
QTY
1
1
1
1
SPE-13-8-084/A/WY
|
