054993 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 054993

Preview

054993: DescriptionTMC-P 5W5-EP36-6,3-5; File Size226KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

054993 Overview

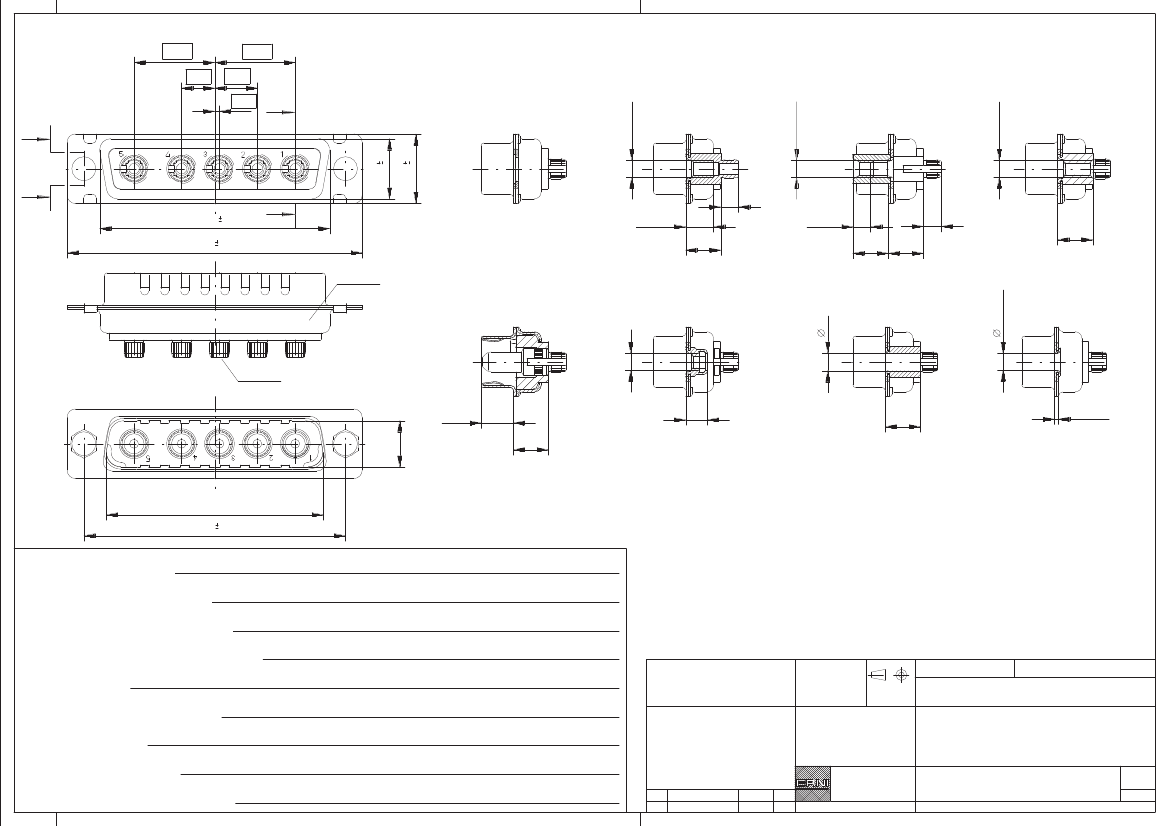

TMC-P 5W5-EP36-6,3-5

Preview

Download Datasheet

View All

14,48

5,94

14,48

7,67

M3 oder/ or

0,86

Einpressbolzen

press-fit bolt :

Schnitt A-A /

cross section A-A

Nietmutter /

M3 oder/ or

riveted nut :

l=3.7/5.6/6.0/6.3

M3 oder/ or

Einpressbolzen / Gewindehülse

press-fit bolt / threaded sleeve :

0,2

41,3

0,3

10,8

12,5

0,3

#4-40

3,2

min. 4,5

6,3

114181

min. 3

(min. 2.5)

6,4

(5.9)

+0,13

#4-40

3,2

6,3

#4-40

Gehäuse genietet

riveted housing :

Nietmutter mit Klemmteil

clamping thread :

Abstandshülse /

3,2

standoff :

124642

5,8

+0,2

+0,3

3,9

6,3

3,05

6,3

max 1,5

38,9

+0,2

0,2

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

Pressfit

6.3 mm

Information:

Tolerances

All Dimensions

in mm

Consider protection memo from DIN 34

8,3

No. of contacts :

Terminal Type :

Leiterplattenbohrbild 144059 /

Board hole pattern 144059

metal plating of plated-through hole

for press-fit contact drawing 114110

for press-fit bolt drawing 114109

2:1

Schichtaufbau im metallisierten Loch /

für Einpresskontakt Zeichnung 114110 /

für Einpressbolzen Zeichnung 114109 /

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Terminal Length :

5W5

Class :

ERNI

Scale

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

201=0.8µm (30

µin)

Au CONTACT, GOLD/LEAD TERMINAL

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 5W5-EP36-6,3-5

www.ERNI.com

Index

Sonderausführung /

054993

TMCP

Date

M:00022982.SZN
