P-8630 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> P-8630

P-8630: DescriptionWHITE RODGERS - P-8631 - AUTO TRANSFORMER; CategoryPower/power management; File Size66KB，2 Pages; ManufacturerETC2

Download Datasheet View All

P-8630 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P-8630	-	-	View	Buy Now

P-8630 Overview

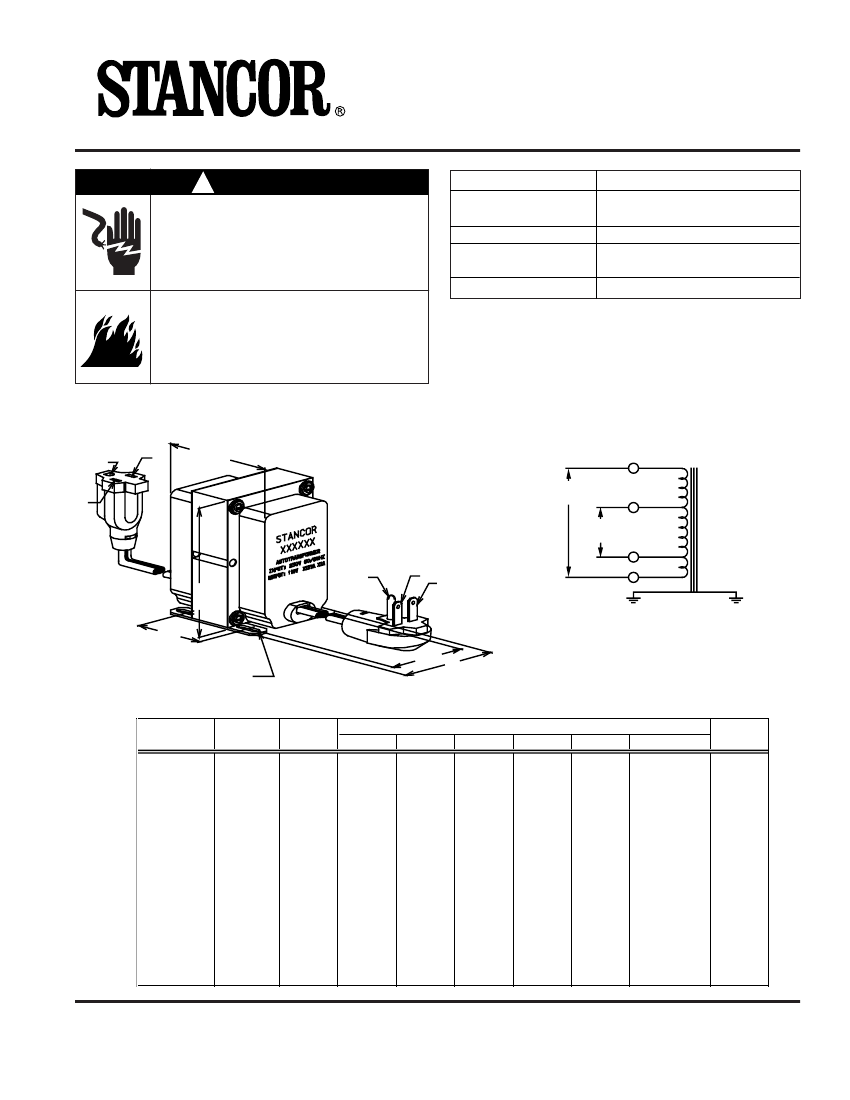

WHITE RODGERS - P-8631 - AUTO TRANSFORMER

Preview

Download Datasheet

View All

Step-Down

Auto Transformers

230 to 115 Volts

WARNING

ELECTROCUTION HAZARD

Disconnect electric power to system at

main fuse or circuit breaker box before

servicing. Failure to do so could result

in death or serious injury.

FIRE HAZARD

Do not exceed transformer ratings.

Higher voltage may damage control

and could cause personal injury or

property damage.

230VAC, 50/60Hz

OUTPUT:

115 VAC (See Output Amp rating &

VA Capacity in table below)

INSULATION RATING:

Class A (105˚C)

TEMPERATURE RISE:

65˚C Max. rise over

40˚C Max. ambient

INPUT:

DIELECTRIC STRENGTH:

1500 VRMS

NOTES:

All dimensions in inches, unless otherwise specified.

All dimensions ±.062, unless otherwise specified.

Plug cord 5

1/2

feet long min.

Receptacle cord 8 inches long min.

RECEPTACLE

NEMA 5-15R

GND.

MAX.

230V

VIN CORD &

PLUG SET

115V

INPUT PLUG

NEMA 6-15P

GND.

MAX.

±.031

(4 PLACES)

VOUT CORD &

RECEPTACLE SET

COM

INPUT LINE CORD

GROUND

OUTPUT LINE CORD

GROUND

SCHEMATIC DIAGRAM

MW W

MAX.

STANCOR

Part No.

P-6287

GSD-75

P-8630

GSD-100

P-8631

GSD-150

P-8632

GSD-250

GSD-300

GSD-350

P-8634

GSD-500

GSD-750

GSD-1000

GSD-1500

Output

Amps

0.35

0.65

0.74

0.87

1.10

1.30

1.74

2.20

2.60

3.00

3.50

4.30

6.50

8.70

13.0

V.A.

Cap.

100

125

150

200

250

300

350

400

500

750

1000

1500

3.19

3.94

4.69

5.44

2.56

3.19

3.81

4.44

Dimensions - Inches

2.75

2.00

1.75

2.88

2.00

1.75

2.88

2.00

1.75

3.25

2.00

2.06

3.13

2.00

2.06

3.25

2.50

2.22

3.25

2.50

2.25

3.63

2.50

2.22

3.63

2.50

2.22

4.31

2.50

2.72

4.25

2.50

2.72

4.44

3.00

3.19

5.38

3.00

3.94

6.06

3.00

4.69

6.00

3.50

4.00

.203 X .687

.203 X .750

.203 X .500

.203 X .750

Wt.

Lbs.

2.20

3.00

2.50

3.70

3.00

4.40

4.20

5.80

7.30

7.00

10.6

14.4

17.0

20.0

PART NO. 37-6200C

www.stancor.com

Replaces 37-6200B

0837
