RT360
RT Series
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
™
Circular Connectors

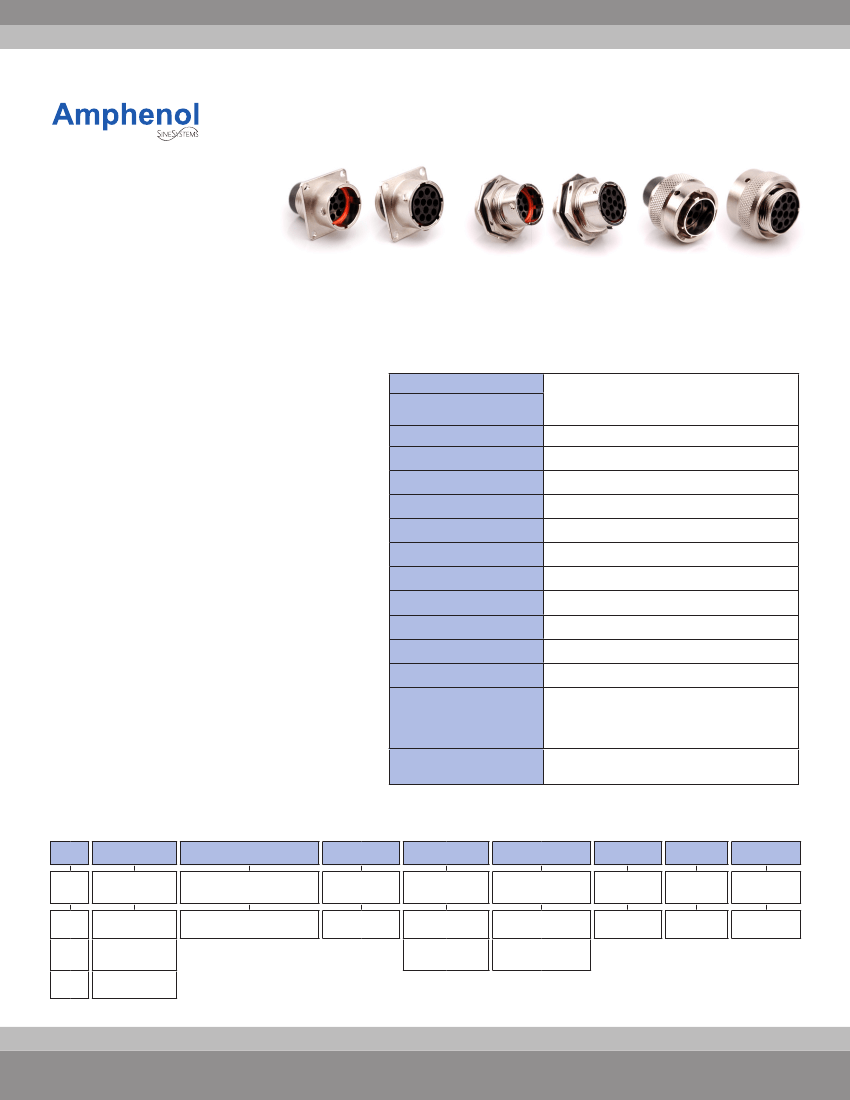

RT360™ industrial circular connectors are multiway connector available in 6 shell sizes and 22 insert
arrangements with a variety of wire gauge options. RT360 industrial circular connectors were designed to be
intermateable with other industry standard connectors, such as the Souriau TRIM TRIO UTG and UTP industrial
connector families and Cannon Trident series.
Features & Benefits
6 shell sizes and 11 insert configurations
Offer standard insert arrangements from 4-28 contacts,
mixed Power and Signal arrangements
Operating voltage of 300V
Current rating: 13A(signal contacts)
Alternate keying positions available
Plastic inserts with flammability rating of UL94-VO
RoHS compliant
6 shell sizes and 5 insert configurations
Mating with MIL-C-24682 series connectors
High density arrangements from 6-32 contacts
Operating voltage of 150V
Current rating of 7.5A with machined contacts
and 5A with stamped and formed contacts
Alternate keying positions available
Plastic inserts with flammability rating of UL94-VO
RoHS compliant
4 shell sizes and 5 insert configurations
Single pole High Power arrangements
3.6mm-10mm contact sizes
Operating voltage of 630V
Current rating: 56A-455A (see page 5)
Plastic inserts with flammability rating of UL94-VO
RoHS compliant
Shells
Backshells and
Cable Glands
Coupling Ring
Coupling Spring
Interfacial Seal
Insert
Finish
RoHS Compliant
Operating Temp
Insulation Resistance
Durability
Vibration Resistance
Thermal Shock
Corrosion
Zinc Alloy
Aluminum
Spring Stainless Steel
Silicone
Glass-filled Thermoplast UL94-V0
Nickel
Yes
-40°C to +105°C
5000 MΩ min.
500 matings and unmatings
per MIL-STD202 method 204
per MIL-STD202 method 207
Salt spray per MIL-STD 202, method 101; 48h
(standard version), 96h (black anodised
coupling ring)
*Higher salt spray resistance
(200/500h) upon request.
Dynamic IP67 / IP68 in mated condition and
in combination with sealed back shell.
RTOW Series
RTHP Series
Degree of Water
Protection per DIN 40050
Part Ordering Guide : RT/RTOW/RTHP Series Plugs & Receptacles
Reference RT360™ Circular Connector Catalog.
RT
SERIES
O
SHELL TYPE
O:
Standard
6:
High Density
7:
Jam Nut Recep.
16
SHELL SIZE
19
INSERT
ARRANGEMENT
See Catalog
P
TYPE OF
CONTACTS
P:
Pin Contacts
S:
Socket Contacts
N
INSERT
POLARIZATION
N:
Standard
*W, X, Y, Z:
Custom orientation
*RT/RTOW Only
*
APPLICATION
*
PLATING
*
DESIGN
VARIATION
See Catalog
RT
RTOW
RTHP
10, *12, *14, *16, 18, *20
*RTHP Only
See Catalog
See Catalog
www.sineco.com

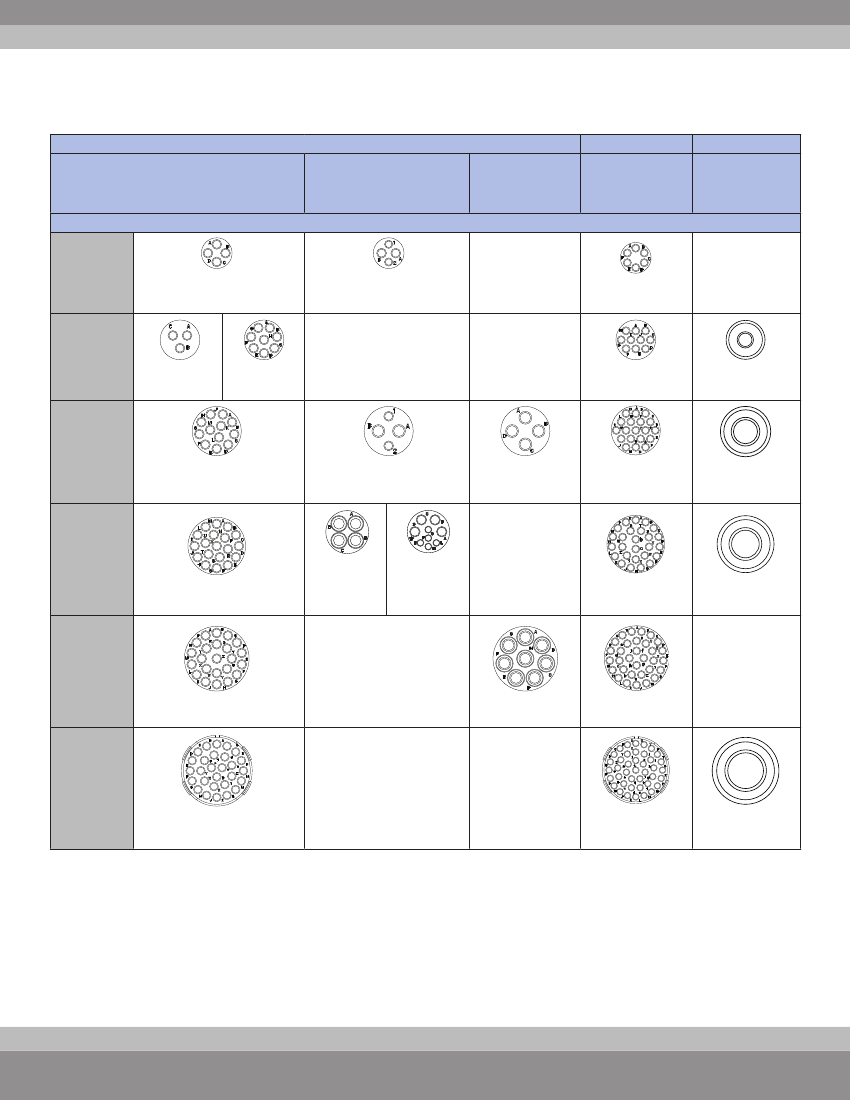

RT360™ Series Insert Configurations
RT
#16 Contacts (1.6mm)
13A/250V
VDE Versions
Mixed Power/Signal
Contacts
(2.5mm)
RTOW
#20 Contacts
(1.0mm)
5A/150V
(1)
7.5A/150V
(2)
RTHP Radsok®
Single
Pin Power
Note: Specific to RTOW, (1)
refers to Stamped and Formed contacts;
(2)
refers to Machined contacts.
Shell
10
10-4
10-2
2x#16(13A)/2X#20(5A)
350V AC/DC
N/A
10-6
N/A
Shell
12
12-3
12-8
N/A
N/A
12-10
12-1
1x3.6mm (86A)
600V AC/DC
Shell
14
14-12
1x3.6mm
14-2
2x2.5(23A)/2x#16(13A)
350V AC/DC
14-4
(23A)
350V AC/DC
14-19
14-1
1x6mm (116A)
600V AC/DC
Shell
16
16-19
N/A
16-4
4x¢3.6(46A)
400 AC/DC
16-9
4x2.5mm
5x#16
16-1
1x8mm (185A)
600V AC/DC
16-26
Shell
18
18-23
N/A
18-8
(23A) 375V AC/DC
N/A
18-32
Shell
20
20-28
N/A
N/A
20-1
1x10mm (342A)
600V AC/DC
20-41
Note:
All dimensions are in mm. Face Views are not actual size and are only meant as a representation.
John Blood, Program Manager
Toll Free: 1.800.394.7732 Ext. 8641 blood@sineco.com
© 2011 Amphenol Sine Systems Corporation. Every effort has been made to ensure that the information contained in this document is accurate at the time of publication. Specifications
or information stated in this document are subject to change without notice.
www.sineco.com
