ABS1699 Trays
ABS1699-03 and ABS1699-05 Trays
INTRODUCTION
Carlisle
Interconnect
Technologies
(CarlisleIT)
now

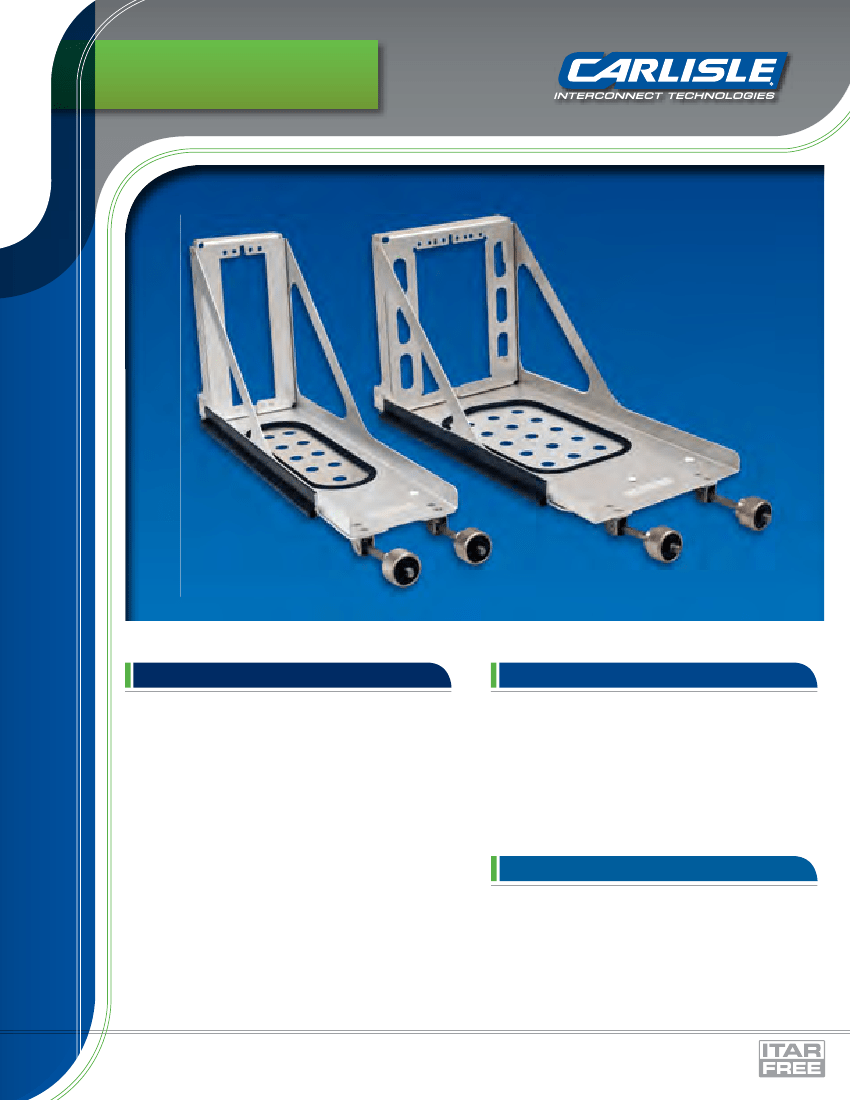

offers the ABS1699 family of trays, which are standard
equipment on all Airbus A3xx aircraft. These trays meet
the standards of ARINC 600 as well as the additional
requirements from ABS1773 specific to these aircraft
platforms. All CarlisleIT trays and components are
fabricated in our state-of-the-art manufacturing facility
using top quality materials to assure a perfect fit and lifetime
performance. Our trays are provided with integrated side
seals to speed installation on cooled equipment shelves
and cooling holes standardized to accept NSA939511-
03 plugs for easy air flow adjustments. The ABS1699
family of trays feature the advanced thumbscrew hold-
down designed to meet the performance criteria of the
ASNA2168 and ABS1773 standards.
FEATURES
»
Durable, rugged construction
»
Lightweight aluminum alloy
»
Clear Chem Film per Mil-DTL-5541, Type II, Class 3
»
Materials meet flammability, optical smoke density
and toxic gas generation requirements of ABD0031
»
RoHS compliant
»
24 hour AOG support
APPLICATIONS
»
ABS1699
»
ARINC 600 Standards
»
CFR Title 14 Part 25, 23 and 21
»
RTCA/DO-160
Carlisle Interconnect Technologies
/ 5300 W. Franklin Drive, Franklin, WI 53132
Toll Free - 800.327.9473 / Fax - 414.421.5301 /
CarlisleIT.com
ABS1699 Trays
MOUNTING PATTERNS

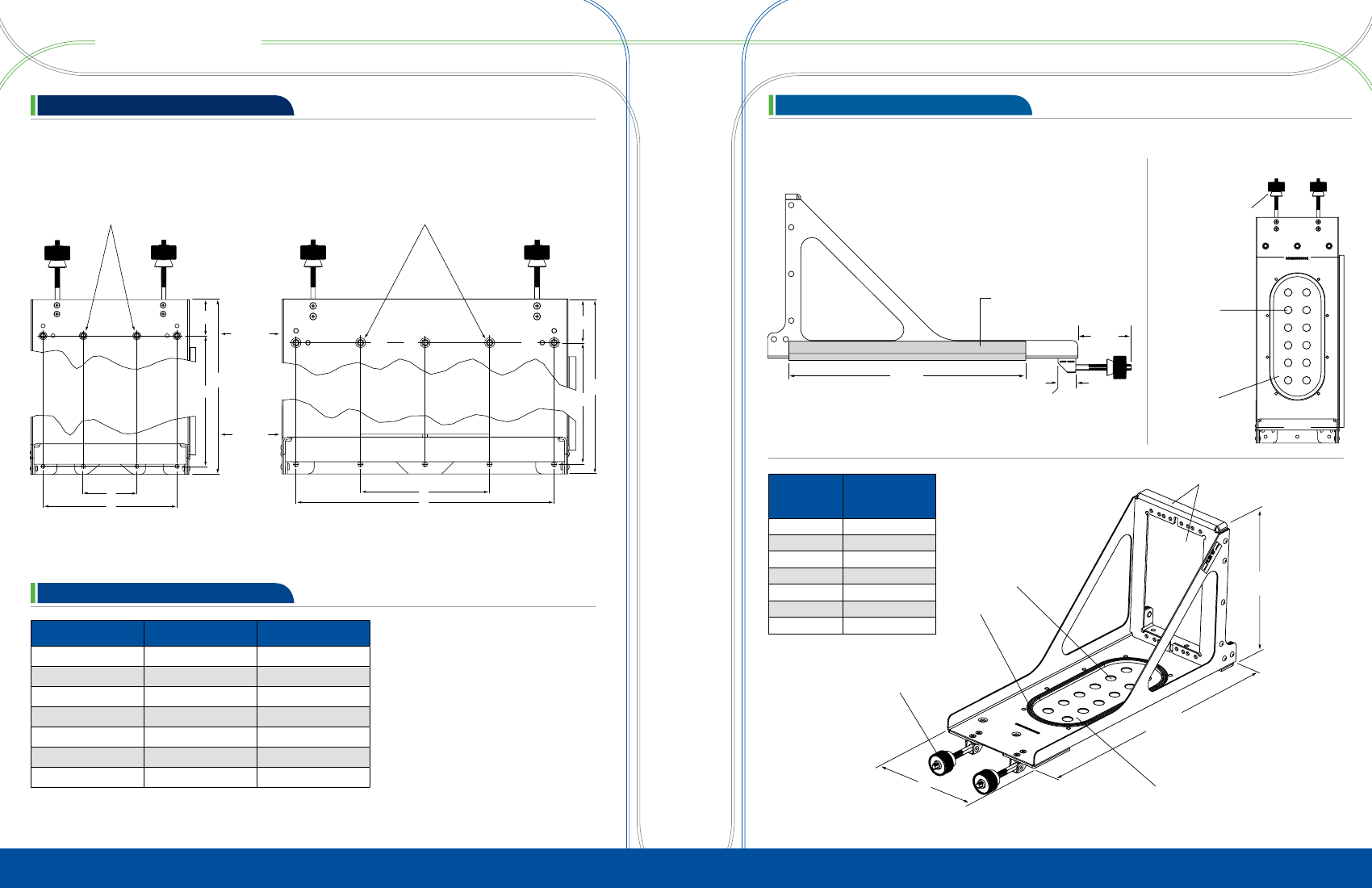

The following cut away diagrams illustrate standard Front and Rear Mounting Hole placement for ABS1699 Trays.
No. 10 mounting holes are standard on all trays.
Note: Dimensions are in inches, bracketed [numbers] represent millimeters.
DIMENSIONAL DATA
Note: Dimensions are in inches, bracketed [numbers] represent millimeters.
Typical Side View
Typical Top View
Advanced Thumbscrew
Hold-Down
Mounting holes are
countersunk 100° to
accommodate flush hardware
Mounting holes are
countersunk 100° to
accommodate flush hardware
Side Seal Included
ABS1699-06
1.77
[45.0]
Top View
Tray Front
ABS1699-09
1.77
[45.0]
Metering Plugs
Optional
2.41
[61.2]
Max.
10.67
[271.0]
.96
[24.4]
Metering Plate
13.97
[355.0]
11.81
[300.0]
13.97
[355.0]
11.81
[300.0]
Top View
Tray Rear
A
B
A
B
MCU Size
2 MCU
3 MCU
4 MCU
5 MCU
Standard Mounting Hole Pattern
» 2, 3 and 6 MCU
A
(Outside Dimensions
Including Rivet Heads)
2.57 [65.3]
3.87 [98.3]
5.19 [131.8]
6.49 [164.8]
7.79 [197.9]
10.39 [262.4]
11.69 [296.9]
Gasket
Metering Plugs Optional
Connector Plate and Universal Cutout
Standard Mounting Hole Pattern
» 4, 5, 8, 9 MCU
MOUNTING DIMENSIONS: REFERENCE CHART
MCU Size
2 MCU
3 MCU
4 MCU
5 MCU
6 MCU
8 MCU
9 MCU
6 MCU
8 MCU
7.40
[188]
A
1.312 [33.3]
2.624 [66.6]
3.936 [100.0]
5.248 [133.3]
2.624 [66.6]
5.248 [133.3]
5.248 [133.3]
B
-
-
-
-
6.560 [166.6]
9.184 [233.3]
10.496 [266.6]
9 MCU
Advanced Thumbscrew
Hold-Down
13.97
[355]
A
Metering Plate
All dimensions shown represent CarlisleIT’s Standard tray dimensions. CarlisleIT can customize any of these features to suit your specific needs.
ABS1699 Trays
OPTIONS & ACCESSORIES

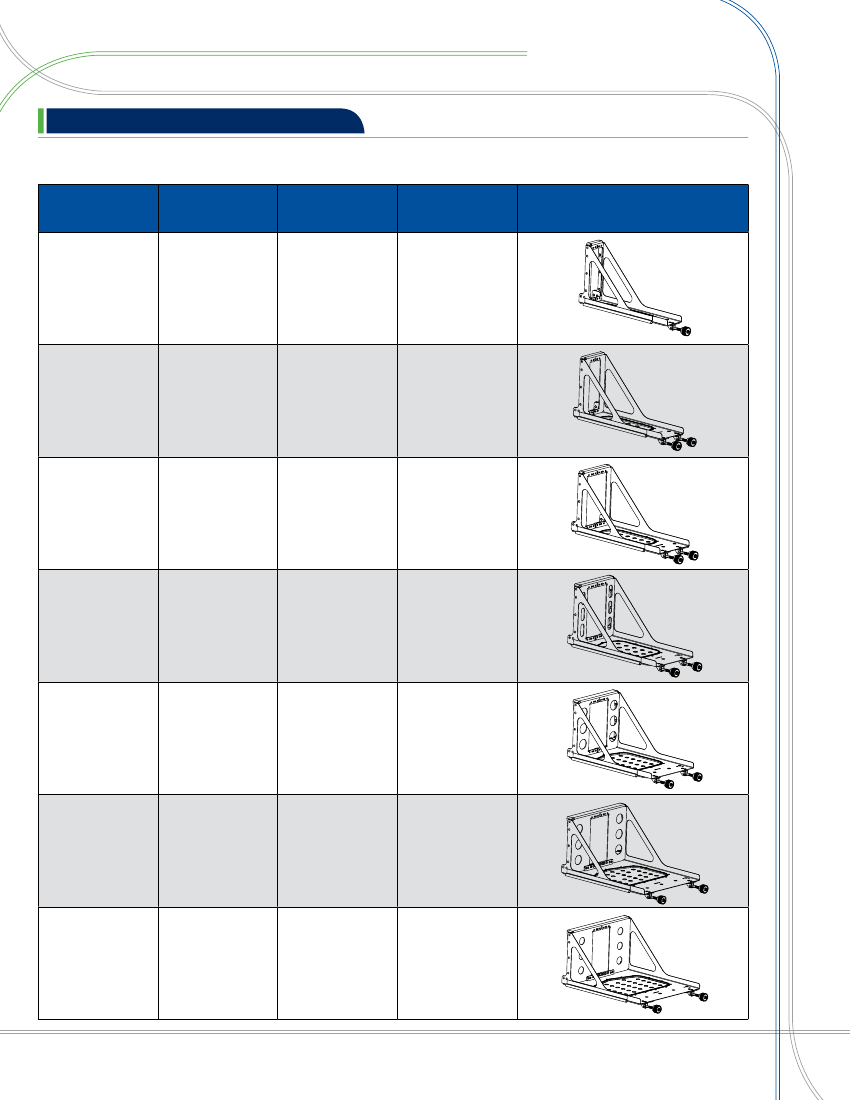

Standard ABS1699 configurations shown. Custom configurations available. Please contact the factory for more information.
MCU Size
ABS1699
Standard P/N
Airbus P/N
CarlisleIT P/N
Figure Illustration
2 MCU
ABS1699-02
D00030093000
200-23876-101
3 MCU
ABS1699-03
D00030094000
200-23563-101
4 MCU
ABS1699-04
D00030095000
200-23558-101
5 MCU
ABS1699-05
D00030581000
200-28957-101
6 MCU
ABS1699-06
D00030582000
200-28965-101
8 MCU
ABS1699-08
D00030583000
200-28973-101
9 MCU
ABS1699-09
-
200-25770-101
Carlisle Interconnect Technologies
/ 5300 W. Franklin Drive, Franklin, WI 53132
Toll Free - 800.327.9473 / Fax - 414.421.5301 /
CarlisleIT.com
© Carlisle Interconnect Technologies, 2012. All trademarks, service marks and trade names are property of their respective holding companies. All Rights Reserved.
Rev. 030513-3000
