US22W821MTC: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, CAN; CategoryPassive components capacitor; File Size182KB，3 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

US22W821MTC Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, CAN

US22W821MTC Parametric

Parameter Name	Attribute value
Objectid	1921581004
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	7.38 mA
Manufacturer's serial number	US2
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	3900 mA
surface mount	NO
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

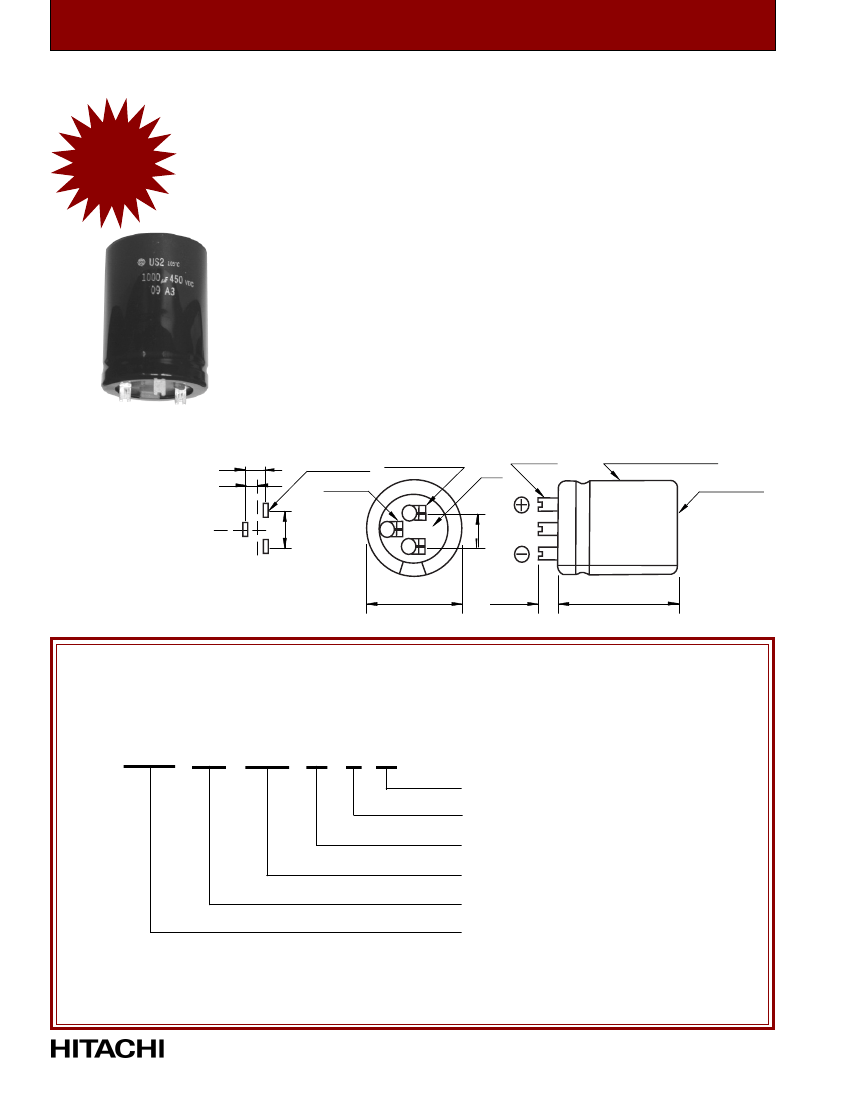

ALUMINUM ELECTROLYTIC CAPACITORS

PS2 Series and US2 Series

•

PS2 Series

- Life rating to 2,000 hours at 85°C.

NE ELS

•

US2 Series

- Life rating to 2,000 hours at 105°C.

• Both product series are designed for filtering applications in

inverter and servo amplifiers.

• Ideal for improving cost performance with larger diameter and

higher ripple current.

• High ripple current was realized with a new heat radiation

structure and low ESR material.

• Maximum ripple current has improved by 27% compared with

HP3 and HU3 series.

• This series offers T: T-Terminals, with 3rd blank terminal

for increased mounting stability.

15.5

11.0

BLANK terminals must

not be connected to

any other circuit.

(3) 1.5 x 6.5

Blank

(3) 1.0 x 5.5

Terminal

PPS

PVC Insulation Sleeve

Safety Vent

26.8

PC Board Holes

Ø51±1

4.2

MAX

L±2

Product Numbering System for PS2 and US2 Series

Example: PS2 Series, 400V, 1,000µF,

±20%,

T terminal, 51 x 51mm

PS2 2G 102 M T C

Case code

Terminal code

Capacitance tolerance code (±20%)

Capacitance code

Rated Voltage code

Series Name

Capacitance Code:

To determine Capacitance code use the first 2 digits of the Capacitance

followed by the number of zeros. Using the above example of 1,000: 10 + 2 zeros = 102.

AIC

HITACHI AIC / BOSTON AIC • 69 Milk Street • Westborough, MA 01581 • Phone: 508-366-4092 • Fax: 508-366-9164

26.8

US22W821MTC Related Products

	US22W821MTC	US22D152MTB	US22E102MTB	PS22D182MTB	PS22D272MTH	PS22G561MTB	PS22W681MTH	PS22W821MTB	PS22W821MTC
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 1500uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 1000uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 1800uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 2700uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 560uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 680uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, CAN
Objectid	1921581004	1921580970	1921580979	1921580781	1921580783	1921580805	1921580813	1921580814	1921580815
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	820 µF	1500 µF	1000 µF	1800 µF	2700 µF	560 µF	680 µF	820 µF	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	7.38 mA	6 mA	5 mA	7.2 mA	10.8 mA	4.48 mA	6.12 mA	7.38 mA	7.38 mA
Manufacturer's serial number	US2	US2	US2	PS2	PS2	PS2	PS2	PS2	PS2
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	450 V	200 V	250 V	200 V	200 V	400 V	450 V	450 V	450 V
ripple current	3900 mA	3990 mA	3260 mA	5780 mA	6680 mA	4220 mA	4480 mA	4920 mA	5110 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
