24IML10-15-15-0

Description
DC-DC Regulated Power Supply Module, 2 Output, 10.5W, Hybrid, 2 X 1 INCH, 10.50 MM HEIGHT, MODULE-9
CategoryPower/power management    The power supply circuit
File Size52KB，4 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric Compare View All

24IML10-15-15-0 Overview

DC-DC Regulated Power Supply Module, 2 Output, 10.5W, Hybrid, 2 X 1 INCH, 10.50 MM HEIGHT, MODULE-9

24IML10-15-15-0 Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeMODULE
package instruction,
Contacts9
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresADDITIONAL 15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage36 V
Minimum input voltage18 V
Nominal input voltage24 V
JESD-30 codeR-XDMA-P9
JESD-609 codee0
Number of functions1
Output times2
Number of terminals9
Maximum operating temperature60 °C
Minimum operating temperature-40 °C
Maximum output voltage15.225 V
Minimum output voltage14.775 V
Nominal output voltage15 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output10.5 W
Fine-tuning/adjustable outputNO
Base Number Matches1

Preview

Download Datasheet

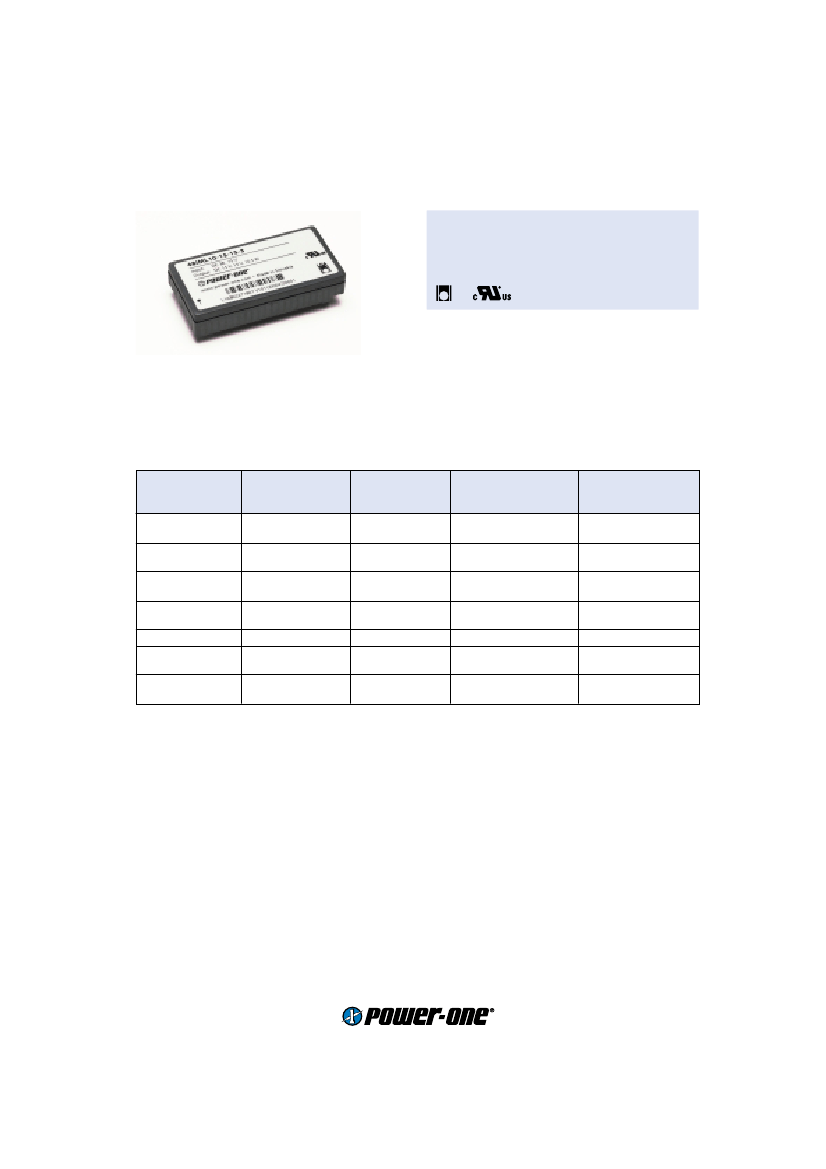

IML 10 Series
10 Watt DC-DC Converters
Wide input voltage ranges up to 75 V DC
1 or 2 outputs up to 30 V DC
1500 V DC I/O electric strength test voltage
LGA
• Magnetic feedback for single output models
• Short circuit protection

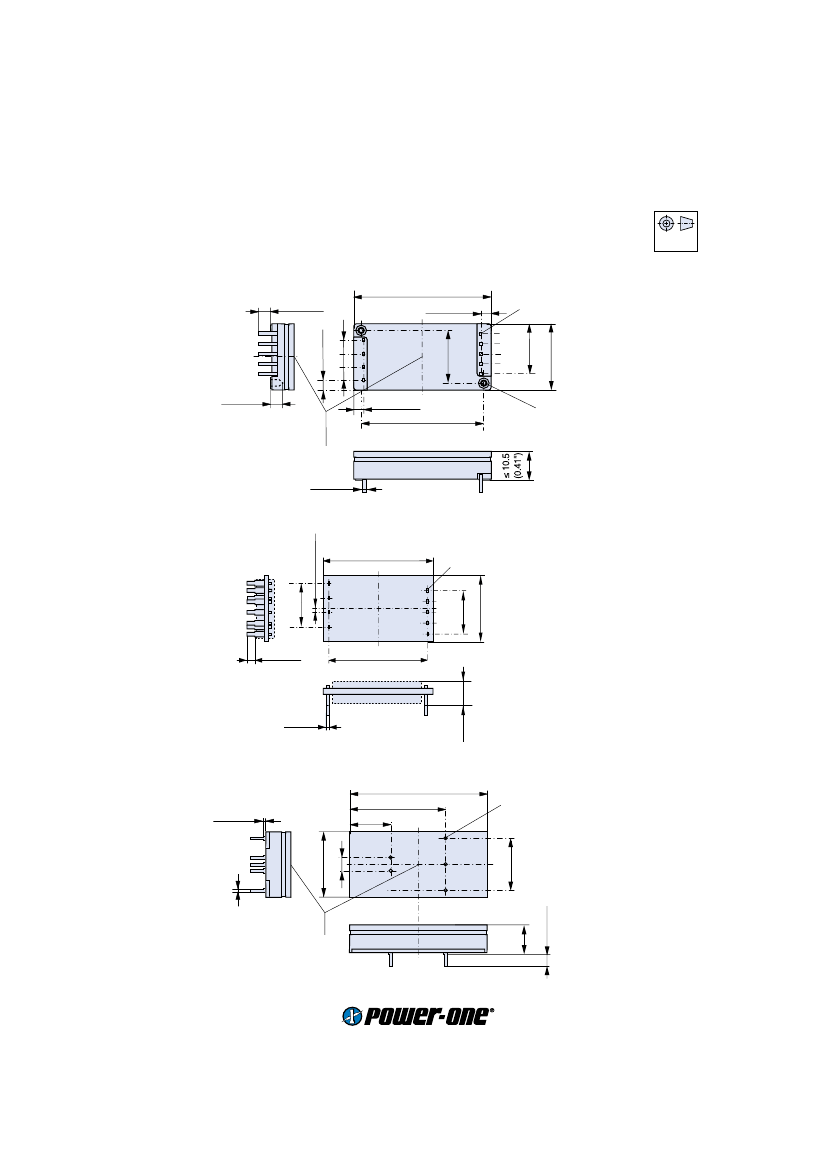

• Industry standard 2" x 1" case with 10.5 mm
profile
Selection chart
Output 1
Output 2
U
o nom
I
o nom
U
o nom
I
o nom
[V DC]
[A]
[V DC]
[A]
3.3
2
-
-
3.3
2
-
-
5
1.9
-
-
5
1.9
-
-
12
0.9
-
-
12
0.9
-
-
15
0.7
-
-
15
0.7
-
-
5.1
1
3.3
1
12
0.45
12
0.45
12
0.45
12
0.45
15
0.35
15
0.35
15
0.35
15
0.35
1
For availability contact Power-One.
Input voltage
U
i
[V DC]
18...36
36...75
18...36
36...75
18...36
36...75
18...36
36...75
36...75
18...36
36...75
18...36
36...75
Type
1
Options
1
24 IML 10-03-0
48 IML 10-03-0
24 IML 10-05-0
48 IML 10-05-0
24 IML 10-12-0C
48 IML 10-12-0C
24 IML 10-15-0C
48 IML 10-15-0C
48 IML 10-0503-0
24 IML 10-12-12-0
48 IML 10-12-12-0
24 IML 10-15-15-0
48 IML 10-15-15-0
C,
C,
C,
C,
Z
Z
Z
Z
C, Z
C, Z
C, Z
C, Z
C, Z
www.power-one.com
Edition 6/10.2001 R1
1
