RSF-25JBI330R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RSF-25JBI330R

RSF-25JBI330R: DescriptionFixed Resistor, Metal Oxide Film, 0.25W, 330ohm, 200V, 5% +/-Tol, 300ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size278KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

RSF-25JBI330R Overview

Fixed Resistor, Metal Oxide Film, 0.25W, 330ohm, 200V, 5% +/-Tol, 300ppm/Cel, Through Hole Mount, AXIAL LEADED

RSF-25JBI330R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1675976760
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	6.45
Other features	FLAME PROOF
structure	Flameproof
JESD-609 code	e3
Lead diameter	0.55 mm
Lead length	28 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package diameter	2.4 mm
Package length	6.3 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	BULK
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	330 Ω
Resistor type	FIXED RESISTOR
series	RSF-25/50S
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	300 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

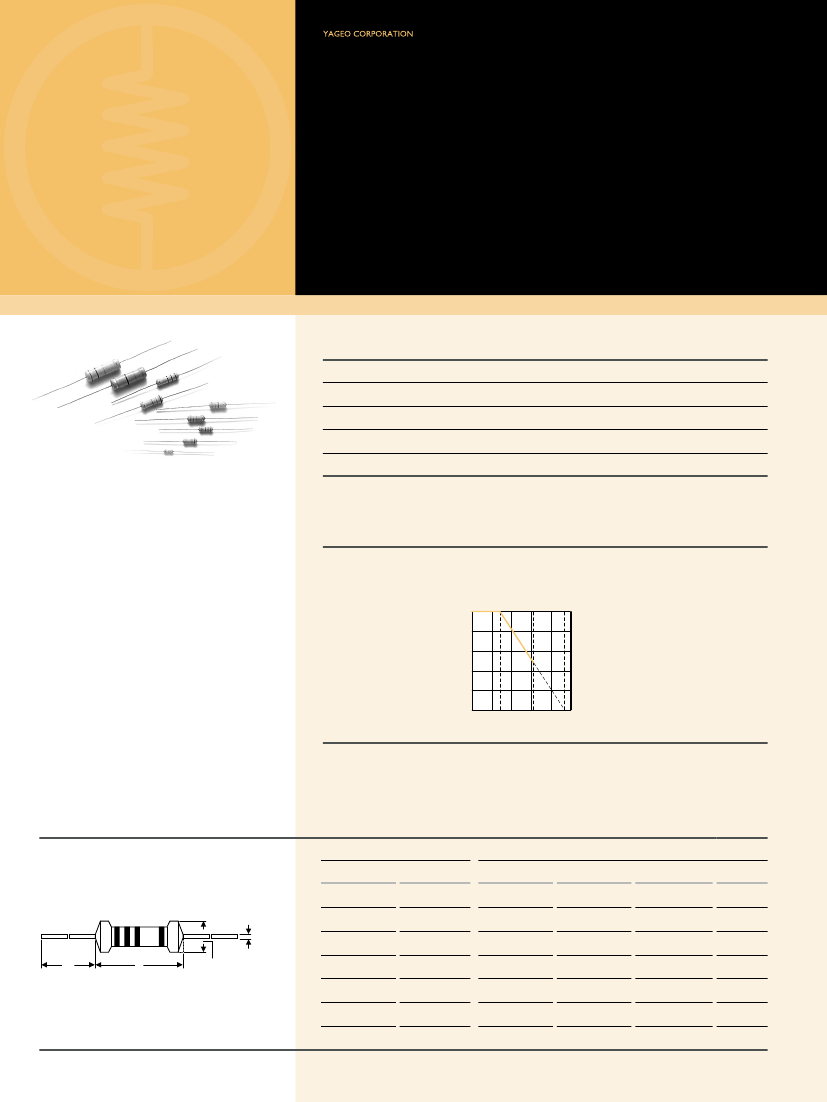

Leaded ResistoRs

Metal Oxide Film Resistors

Flame-Proof Type

Normal & Miniature Style [ RSF Series ]

FeatURes

Power Rating

Resistance Tolerance

T.C.R.

Flameproof Multi-layer Coating Meets

Flameproof Feature Meets Overload Test

1/4W, 1/2W, 1W, 2W, 3W, 5W

±2%, ±5%

±300ppm/°C

UL-94V-0

UL-1412

iNtRodUCtioN

The RSF Series Metal Oxide Film Flame-Proof

Resistors offer excellent performance in

applications where stability and uniformity of

characteristics are desired. They provide lower

cost alternatives to Carbon Composition

Resistors and General Purpose Metal Films.

Metal Oxides also can replace many low power

General Purpose wirewound applications, saving

both money and time, with shorter delivery

cycles. The normal style & the miniature style

of RSF series are coated with layers of gray and

pink colors flame-proof lacquer respectively.

deRatiNG CURVe

For resistors operated in ambient temperatures above 70°C, power rating must be derated

in accordance with the curve below.

Rated Load (%)

100

100 150 200 250

155

235°C

Ambient Temperature (°C)

diMeNsioNs

stYLe

Normal

RSF-25

RSF-50

ød

øD

RSF100

RSF200

RSF3WM

RSF300

RSF500

Note: RSF1WS (for MB Type) ød = 0.8±0.05mm

Unit: mm

diMeNsioN

Miniature

RSF50S

RSF1WS

RSF2WS

RSF3WS

RSF5SS

RSF5WS

6.3±0.5

9.0±0.5

11.5±1.0

15.5±1.0

17.5±1.0

24.5±1.0

ød

2.4±0.2

3.3±0.3

4.5±0.5

5.0±0.5

6.5±1.0

8.5±1.0

28±2.0

26±2.0

35±2.0

33±2.0

32±2.0

38±2.0

ød

0.55±0.05

0.8±0.05
