OX-501
Oven Controlled Crystal Oscillator
OX-501
Features
•
•
•
•
•
6-Pin SMD package
Fast warm-up
TCXO replacement for better short term stability
Frequency Range, 10 MHz to 100 MHz
Standard frequencies, 10, 12.8, 16.384, 19.44, 20, 30.72,
38.88, 51.84 MHz
•
•
•
•
Applications
Base stations
Test equipment
Femto base station
Military communication equipment
Performance Specifications
Frequency Stabilities
1
(AT-Cut Crystal-Standard - 7 to 20 MHz)
Parameter
vs. operating temperature range
(referenced to +25°C)
Min
-100
-250
-250
-0.5
-20
-20
-10
-300
-500
Typical
Max
+100
+250
+250
+0.5
+20
+20
+10
+300
+500
2
Units
ppb
ppb
ppb
ppm
ppb
ppb
ppb
ppb
ppb
minutes
Condition
Options
5
Options
5
-20 to +70°C
-20 to +70°C
-40 to +85°C
at time of shipment, nominal EFC
V
S
±5% static
Load ±5% static
after 30 days of operation
≤ 60MHz; after 30 days of operation
≥ 60MHz; after 30 days of operation
to ±200ppb of final frequency (1 hour reading)
@ +25°C
-20 to +70°C
-40 to +85°C
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / year
vs. aging / year
Warm-up time
Frequency Stabilities
1
(SC-Cut Crystal-Option - 20 to 40 MHz)
vs. operating temperature range
(referenced to +25°C)
-30
-50
+30
+50
ppb
ppb
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / year
vs. aging / year
Warm-up time
-0.2
-10
-10
-5.0
-100
-500
+0.2
+10
+10
+5.0
+100
+500
2
ppm
ppb
ppb
ppb
ppb
ppb
minutes
at time of shipment, nominal EFC
V
S
±5% static
Load ±5% static
after 30 days of operation
≤ 60 MHz; after 30 days of operation
≥ 60MHz; after 30 days of operation
to ±100ppb of final frequency (1 hour reading)
@ +25°C
Page 1 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Supply voltage (standard)
Power consumption
Min
3.135
Typical
3.3
Max
3.465
2.2
0.7
Units
VDC
Watts
Watts
Condition
during warm-up
steady state @ +25°C
RF Output
Signal [standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Duty Cycle
Tuning Range
Tuning Range
Linearity
Tuning Slope
Control Voltage Range
0.0
1.4
±5.0
±1.0
10%
Positive
2.8
-65
-95
-120
-140
-145
8.0
Handling & Processing Note
VDC
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
g
with Vs=3.3V
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
2.4
45
55
Fixed OCXO; No adjust
±12
±3
ppm
ppm
with AT cut crystal
with SC cut crystal
15
0.4
HCMOS
pF
VDC
VDC
%
with Vs=3.3V and 15pF Load
with Vs=3.3V and 15pF Load
@ (Voh-Vol)/2
Frequency Tuning (EFC)
Option
5
@ 10MHz
Additional Parameters
Phase Noise
3
Weight
Processing & Packing
Supply voltage (Vs)
Output Load
Operable Temperature Range
Storage Temperature Range
-55
-55
Absolute Maximum Ratings
5.5
50
+85
+125
V
pF
°C
°C
with Vs=5.0VDC
Outline Drawing / Enclosure
Dimensions in mm
OX-500
Height “H”
9.9
6.4
Pin Length “L”
N/A
N/A
Pin Connections
1
2
3
4
5
6
Electronic Frequency Control Input (EFC)
Enable
Ground (Case)
RF Output
Uref
Supply Voltage Input
Page 2 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Shipping Method (OX-501)
A
X
B
K
P
Enclosure Type
Typ OX-501
*bei W
≤ 24
mm
nur untere Lochreihe
∗by
W
≤
24 mm only lower hole line
Lage im Gurt
Position in tape
Pin 1
Abwickelrichtung
Unwinding direction
Gurtunterseite
Tape buttom side
Gurtoberseite
Tape upper side
Tape Width W (mm)
N/A
Quantity per meter
N/A
Quantity per reel
N/A
Dimension P
N/A

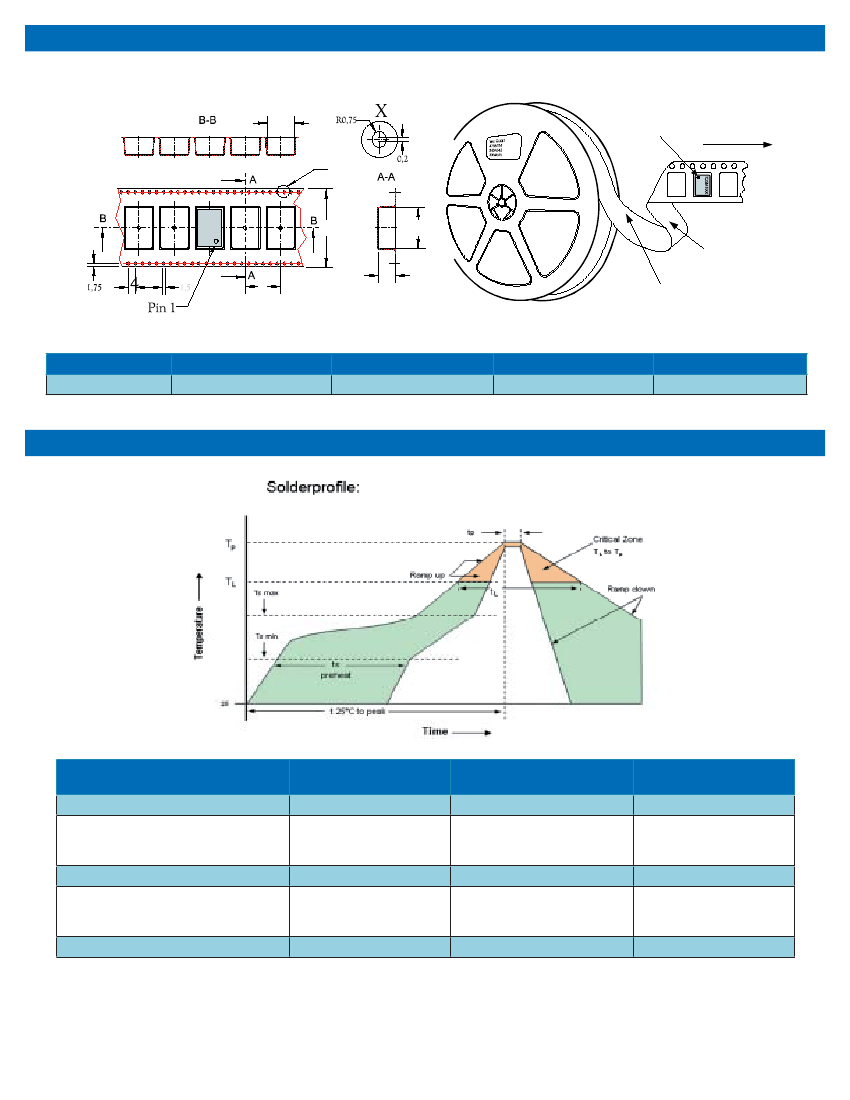

Recommended Reflow Profile
Profile Feature
Average ramp-up rate (T
L
to T
P
)
Preheat
-Temperature Min T
Smin
-Temperature Min T
Smax
-Time (min to max) t
S
Pb-Free Assembly/
Sn-Pb Assembly
3°C/second max.
150°C
200°C
60-180 seconds
3°C/second max
217°C
60-150 seconds
max 260°C
Profile Feature
Time 25°C to Peak Temperature
Time maintained above
-Temperature (T
L
)
-Time (t
L
)
Pb-Free Assembly/
Sn-Pb Assembly
8 minutes max.
217°C
60-150 seconds
TSmax to TL -Ramp-up Rate
Time maintained above
-Temperature (T
L
)
-Time (t
L
)
Peak Temperature (T
P
)
Time within 5°C of actual Peak
Temperature (t
P
)
Ramp-down Rate
20-40 seconds
6°C/ second max
Note:
All temperatures refer to topside of the package, measured on the package body surface.
Page 3 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
OX - 501 0 - D A E - 258 0 - 10M0000000
Product Family
OX: OCXO
Package
SMD version
Height
0: 9.9mm
1: 6.4mm
Stability Code
258: ±25ppb
508: ±50ppb
107: ±100ppb
257: ±250ppb
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
P: 0°C to +50°C
Frequency
Frequency Control
0: No Tuning
1: ±5.0 to ±12ppm
2: ±1.0 to ±3.0ppm
Supply Voltage
E: 3.3V
RF Output Code
A: HCMOS
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
USA:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Europe:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Fax: +49 (0) 7268.801.282
Asia:
Vectron International
1F-2F, No 8 Workshop, No 308 Fenju Road
WaiGaoQiao Free Trade Zone
Pudong, Shanghai, China 200131
Tel: 86.21.5048.0777
Fax: 86.21.5048.1881
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 12Feb2009
Page 4 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
