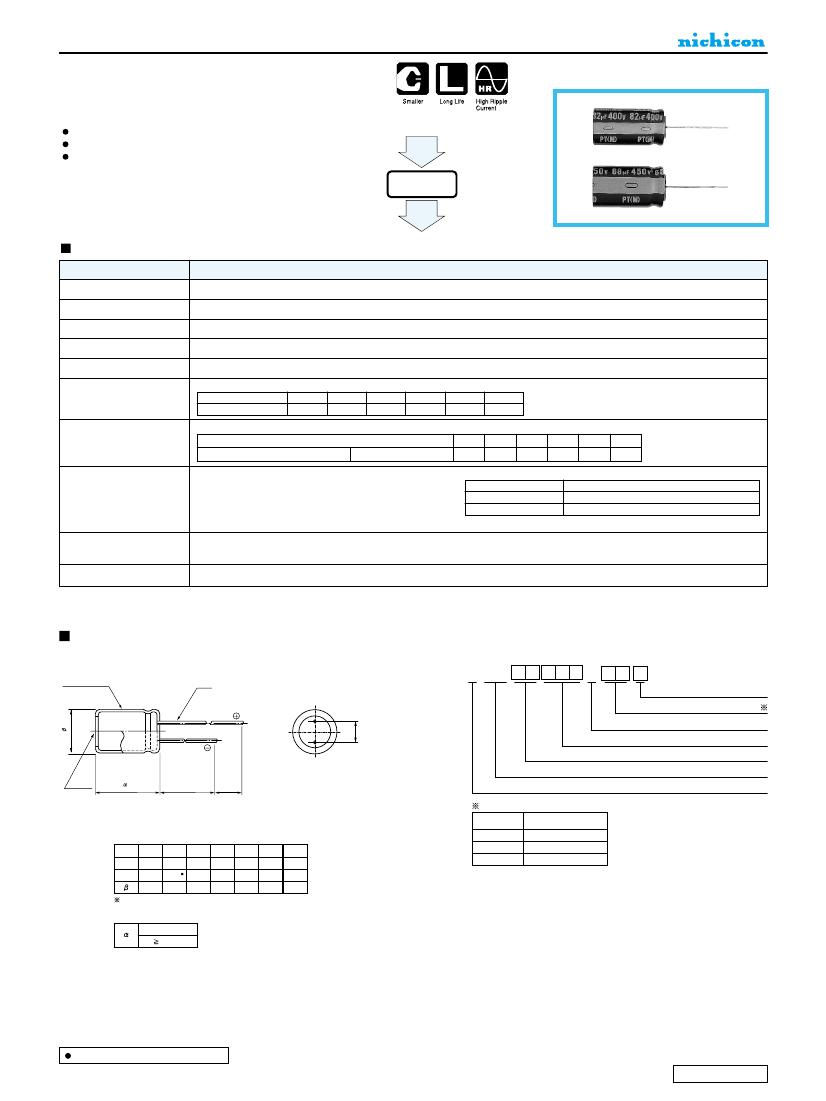

ALUMINUM ELECTROLYTIC CAPACITORS
PT
Miniature Sized, High Ripple Current, Long Life
series
High ripple current.
Suited for ballast application.
Compliant to the RoHS directive (2002/95/EC).
PB
Smaller
PT
Smaller
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
PZ
Performance Characteristics
– 25 to +105°C
200 to 450V
15 to 820µF
± 20% at 120Hz, 20°C
After 2 minutes' application of rated voltage, leakage current is not more than 0.06CV+10 (µA)
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage (V)
tan
δ
(MAX.)
200
0.12
220
0.12
250
0.12
400
0.15
420
0.20
450
0.20
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Impedance ratio ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
200
3
220
3
250
3
400
8
420
8
450
8
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 5000 hours at 105°C, the peak
voltage shall not exceed the rated voltage.
Capacitance change
tan
δ
Leakage current
Within ± 20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Type numbering system (Example : 250V 220µF)
1
2
3
4
5
6
7
8
9
10 11
12
Sleeve (P.E.T.)
φ
d
U P T 2 E 2 2 1 M HD
T
Size code
Configuration
MAX.
φD
+
P
±
0.5
Capacitance tolerance (± 20%)
Rated capacitance (220µF)
Rated voltage (250V)
Series name
Pressure
relief vent
L+
MAX.
15
MIN
4
MIN
Type
Configuration
φ
D
(mm)
Pb-free leadwire
Pb-free PET sleeve
10
12.5 to 18
20 to 25
PD
HD
RD
φD
P
φd
10
5.0
0.6
0.5
12.5
5.0
0.6
0.5
16
7.5
0.8
0.5
18
7.5
0.8
0.5
20
10.0
1.0
0.5
22
10.0
1.0
1.0
25
12.5
1.0
1.0
In case L > 25 for the
φ12.5
dia. unit, lead dia.
φ
d = 0.8mm.
(φD
< 20) : 1 .5
(φD
20) : 2.0
•
Please refer to page 20 about the end seal configulation.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
