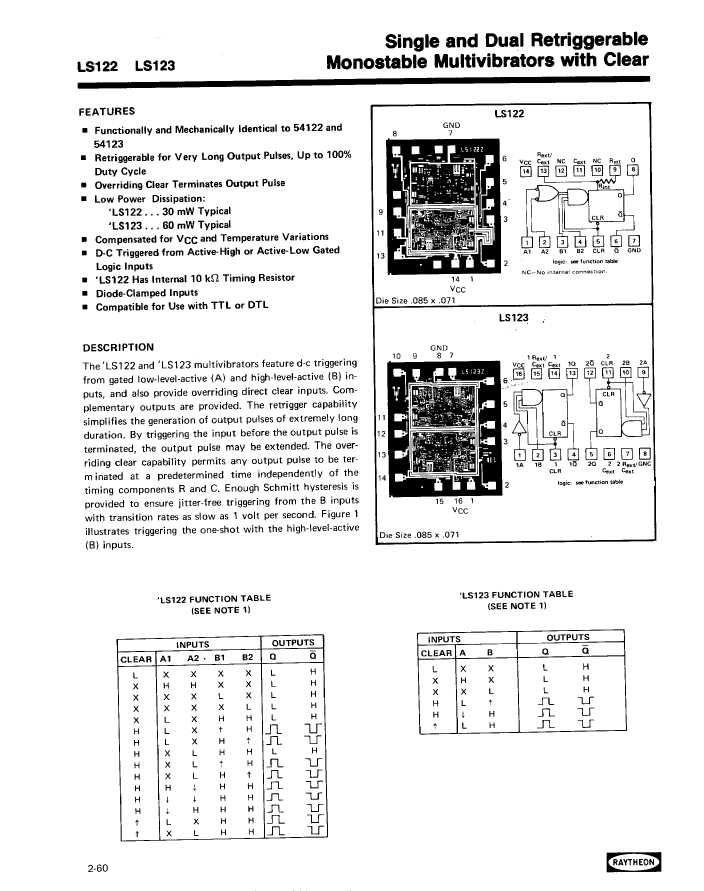

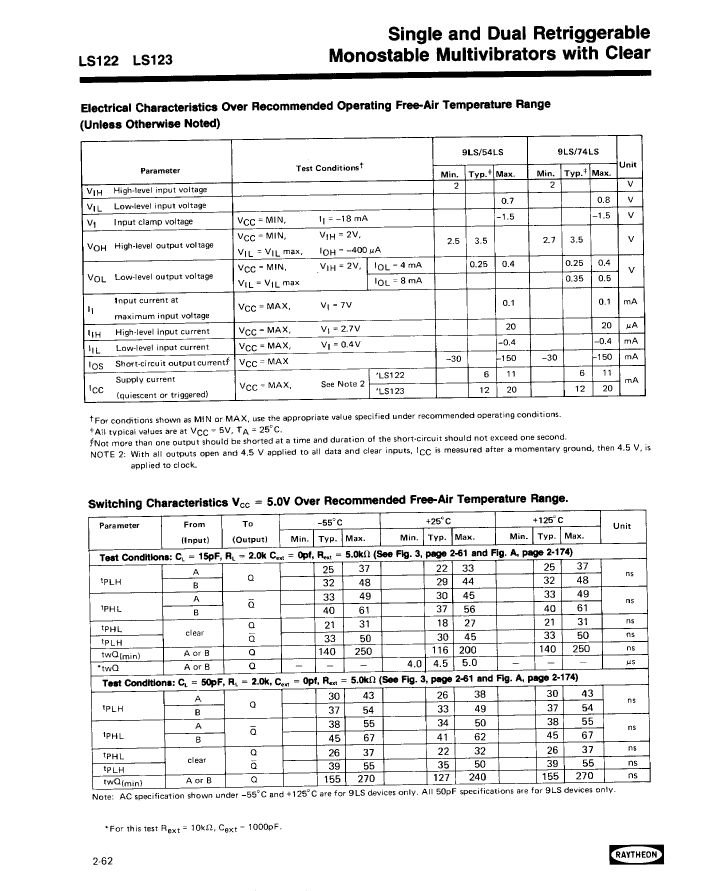

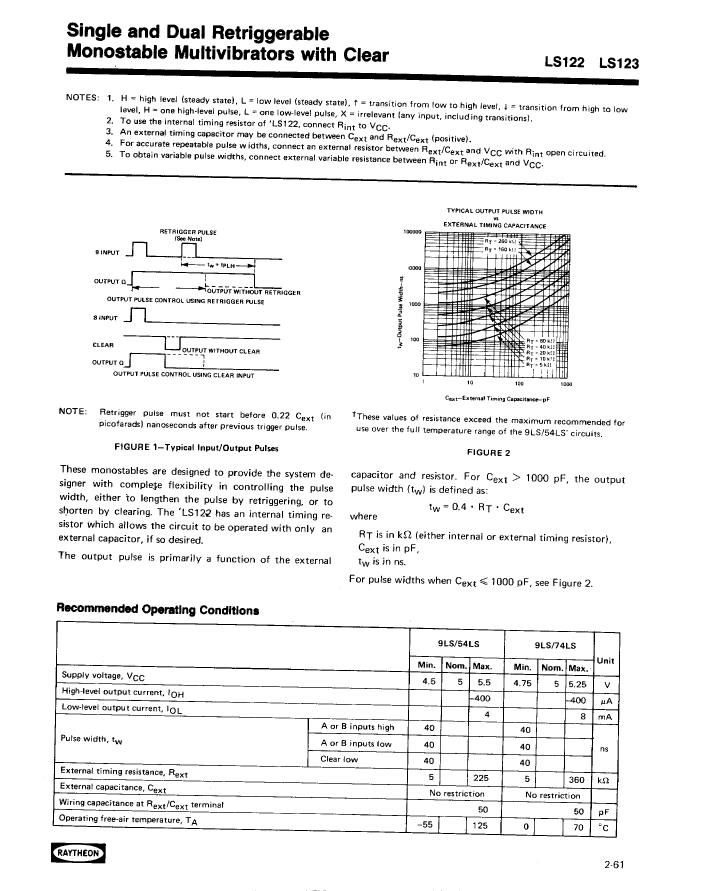

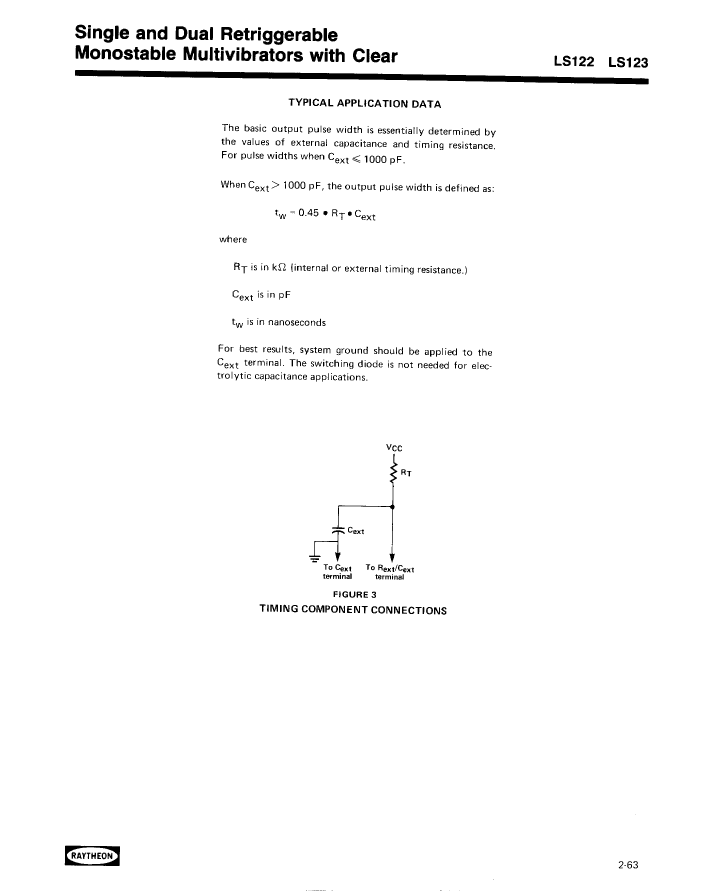

Monostable Multivibrator, TTL, CDFP14,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Objectid | 100813622 |
| package instruction | DFP, FL14,.3 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-XDFP-F14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MONOSTABLE MULTIVIBRATOR |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL14,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| 54LS122W | 74LS122N | 74LS122NA+1 | 74LS123N | 74LS123NA+2 | 74LS123NA+1 | 54LS123J | 54LS122W03 | |
|---|---|---|---|---|---|---|---|---|
| Description | Monostable Multivibrator, TTL, CDFP14, | Monostable Multivibrator, TTL, PDIP14, | Monostable Multivibrator, TTL, PDIP14, | Monostable Multivibrator, TTL, PDIP16, | Monostable Multivibrator, TTL, PDIP16, | Monostable Multivibrator, TTL, PDIP16, | Monostable Multivibrator, TTL, CDIP16, | Monostable Multivibrator, TTL, CDFP14, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DFP, FL14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL14,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-XDFP-F14 | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T16 | R-PDIP-T16 | R-PDIP-T16 | R-XDIP-T16 | R-XDFP-F14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR |
| Number of terminals | 14 | 14 | 14 | 16 | 16 | 16 | 16 | 14 |
| Maximum operating temperature | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 125 °C | 125 °C |
| Package body material | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC | CERAMIC |
| encapsulated code | DFP | DIP | DIP | DIP | DIP | DIP | DIP | DFP |
| Encapsulate equivalent code | FL14,.3 | DIP14,.3 | DIP14,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | FL14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | FLATPACK |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | NO | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maker | - | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | - | - |
