Data Sheet
Features
For Base Station applications
Usable bandwidth 35 MHz
For Base Station applications
Low loss
Single-ended operation
No impedance matching for operation at 50
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856824
897.5 MHz SAW Filter
Package

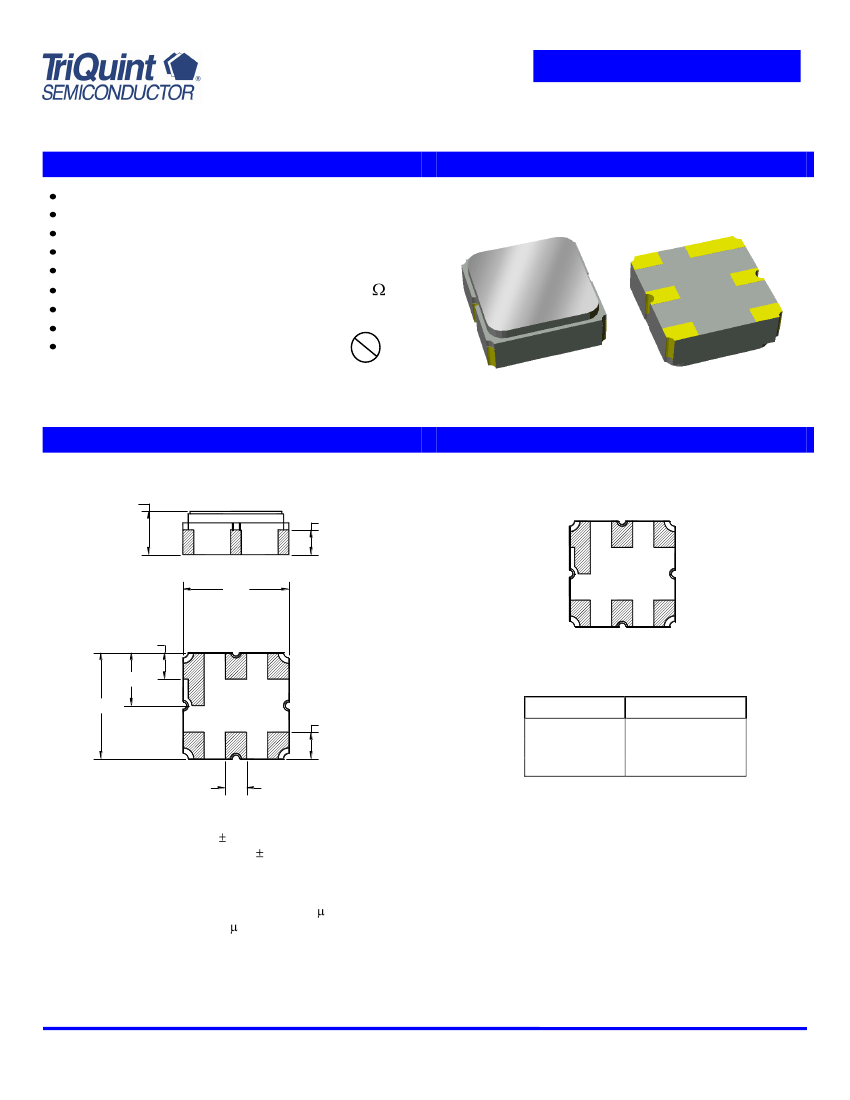

Surface Mount 3.00 x 3.00 x 1.22 mm
1.22 NOM.
1.32 MAX.
0.69
Pin Configuration
Bottom View
1
2
3
3.00
0.75
1.50
3.00
0.75
6
5
4
Pin No.
2
5
1,3,4,6
Description
Input
Output
Case ground
0.60
Dimensions shown are nominal in millimeters
All tolerances are 0.15mm except overall
length and width 0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0 m,
over a 2 - 6 m
Ni
plating
Subject to change or obsolescence without notice
Rev A
06/10
TriQuint Semiconductor, Inc. ©
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-30 to +85
o
C
Part Number 856824
897.5 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
880 – 915 MHz
Amplitude Variation
880 – 915 MHz
Amplitude Variation( over any 5 MHz band)
880 – 915 MHz
Phase Ripple
880 – 915 MHz
Absolute Group Delay
880 – 915 MHz
Group Delay Variation
880 – 915 MHz
Input Return Loss
880 – 915 MHz
Output Return Loss
880 – 915 MHz
Relative Attenuation
(5)
180 – 220 MHz
440 – 458 MHz
656 – 695 MHz
695 – 735 MHz
735 – 738 MHz
738 – 773 MHz
818 – 866 MHz
984 – 1227 MHz
1296 – 1331 MHz
1596 – 1632 MHz
1968 – 2454 MHz
3056 – 3577 MHz
Source Impedance (single-ended)
(6)
Load Impedance (single-ended)
(6)
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
-
-
-
-
Typical
(4)
897.5
1.4
0.5
0.35
12.0
20.0
13.0
Maximum
-
2.5
1.6
0.8
25
35
25
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
dB p-p
degree
nsec
nsec
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
9.5
9.5
20
25
20
25
20
29
6
10
35
37
30
18
-
-
12.4
12.8
43.0
39.0
36.0
34.0
43.0
38.0
11.0
31.0
39.0
48.0
42.0
24.0
50
50
All specifications are based on TriQuint test circuit shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
Relative to Maximum Insertion Loss in passband
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev A
06/10
TriQuint Semiconductor, Inc. ©
Page 2 of 5
Data Sheet
Part Number 856824
897.5 MHz SAW Filter

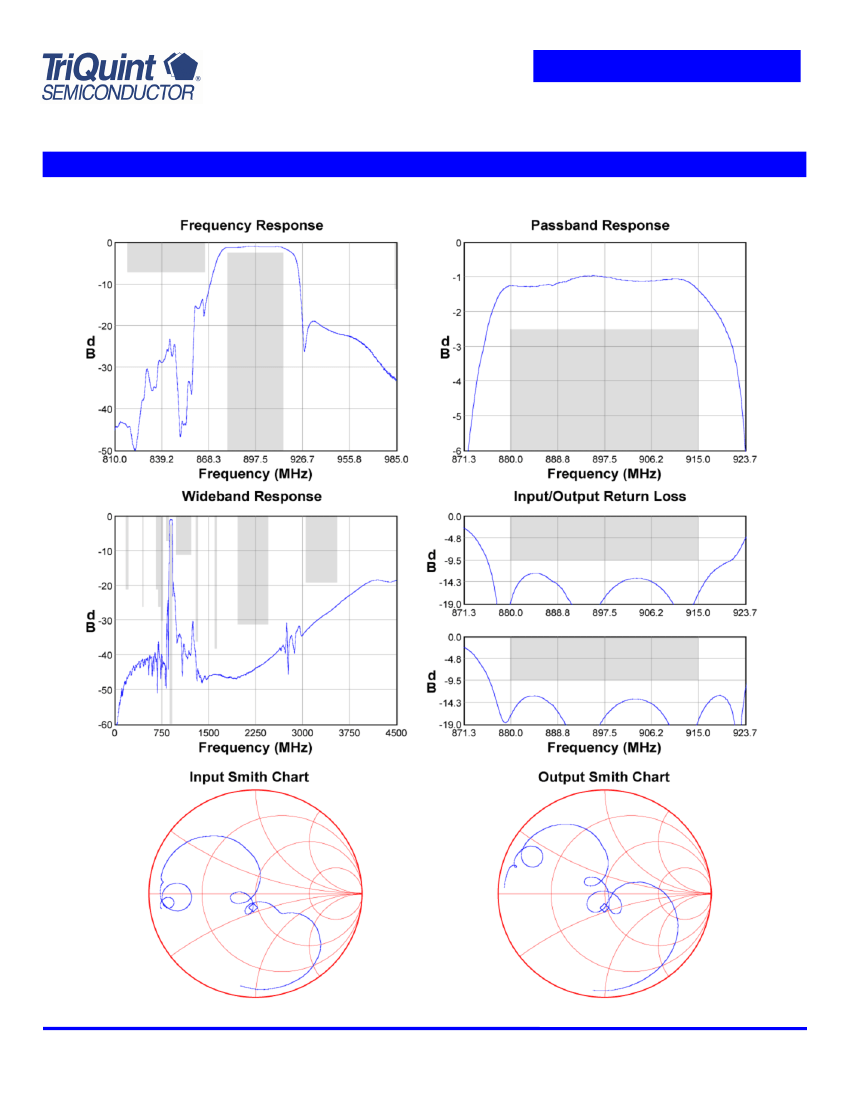

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
06/10
TriQuint Semiconductor, Inc. ©
Page 3 of 5
Data Sheet
Part Number 856824
897.5 MHz SAW Filter

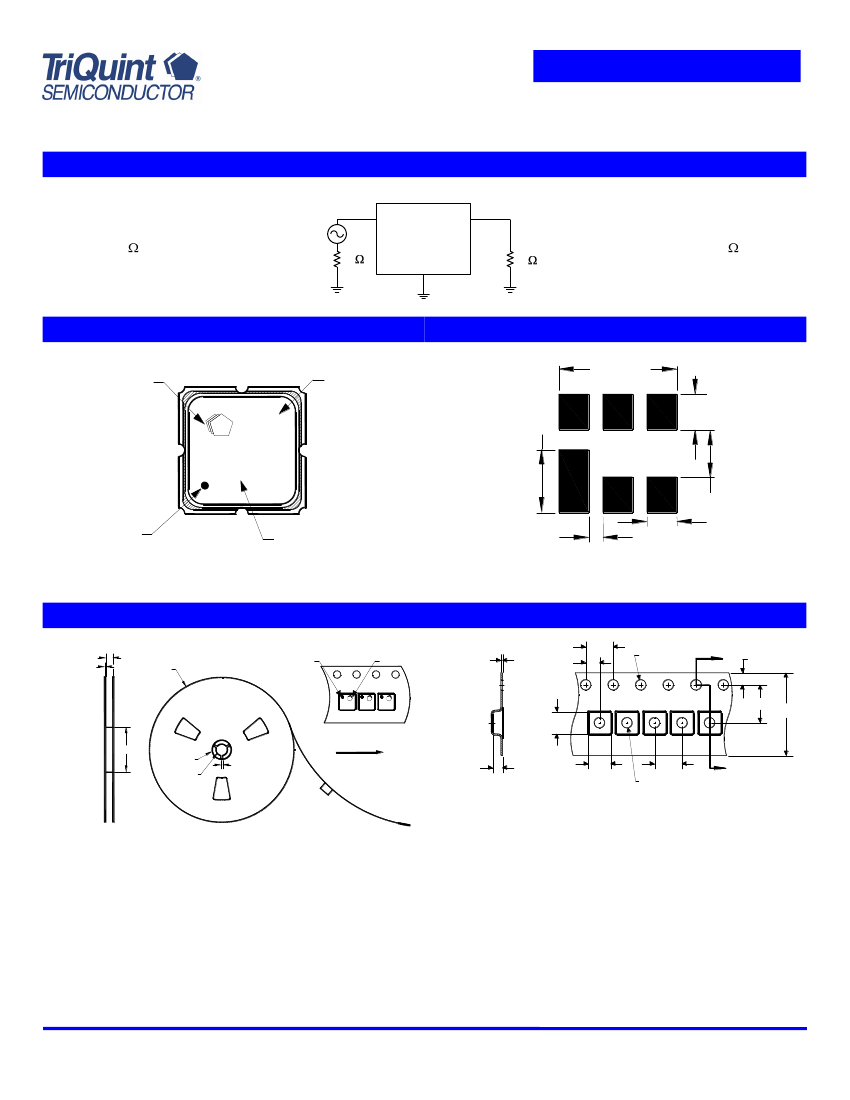

Matching Schematics
2
5
50
Single-ended
50
1,3,4,6
50
50
Single-ended
Marking
TriQuint
logo
Marking
code
PCB Footprint
3.20 SQ
.96
EH
JJJYM
1.70
1.27
.81
ID dot
Date code
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
ID dot
TriQuint
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
3.25
Ø102
Ø20.2
Ø13.0
12.0
2.0
Direction of travel
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev A
06/10
TriQuint Semiconductor, Inc. ©
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
(1)
Part Number 856824
897.5 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-30
-40
-
Maximum
+85
+85
+22
Unit
C
C
dBm
o
o
Note:
1.
Input Power is targeted for an applied CW modulated RF signal at 55 ºC for 125 hours
Important Notes
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev A
06/10
TriQuint Semiconductor, Inc. ©
Page 5 of 5
