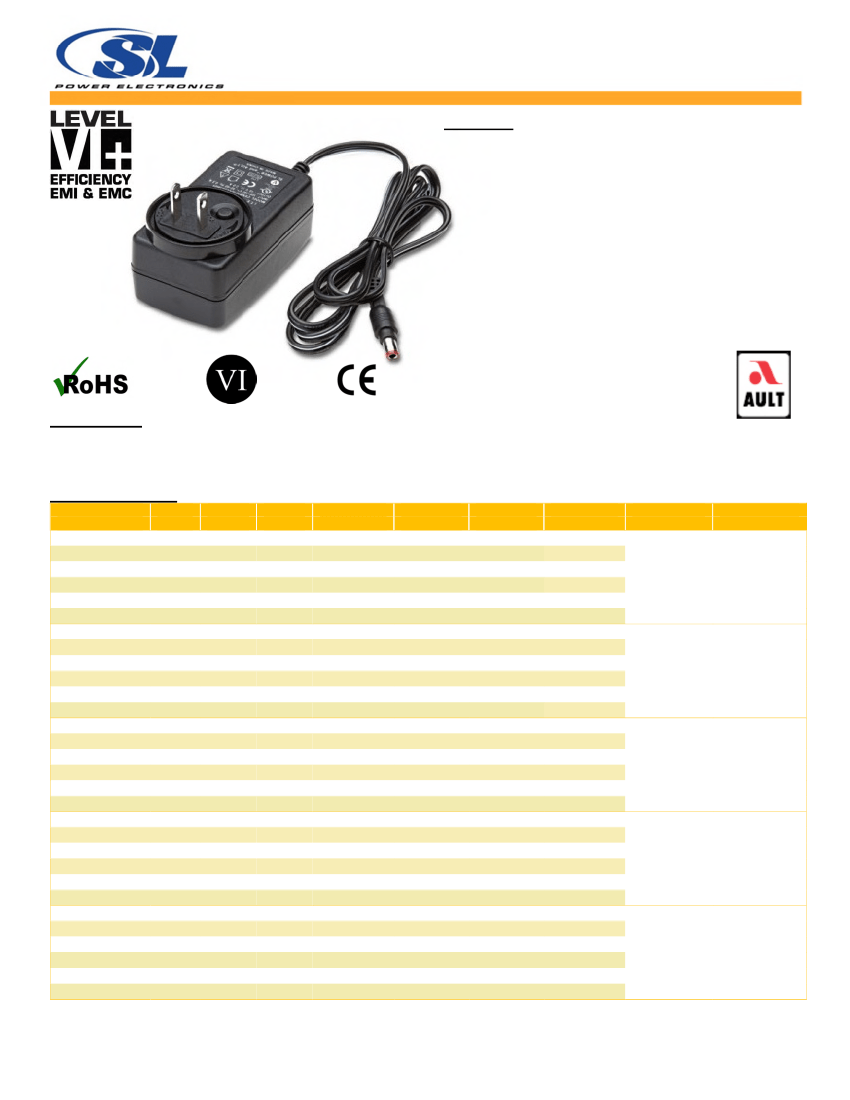

A high performance AC to DC external power supply family designed for test & measurement and industrial applications. The TE30A
Series models are compliant with Efficiency Level VI requirements per U.S. Dept. of Energy, as well as the Heavy Industrial levels of
various EN61000-4-x standards for EMC.
Model Selection
Model
Number
TE30A0503F01
TE30A1203F01
TE30A1503F01
TE30A1803F01
TE30A2403F01
TE30A4803F01
TE30A0503N01
TE30A1203N01
TE30A1503N01
TE30A1803N01
TE30A2403N01
TE30A4803N01
TE30A0503Q01
TE30A1203Q01
TE30A1503Q01
TE30A1803Q01
TE30A2403Q01
TE30A4803Q01
TE30A0503B01
TE30A1203B01
TE30A1503B01
TE30A1803B01
TE30A2403B01
TE30A4803B01
TE30A0503C01
TE30A1203C01
TE30A1503C01
TE30A1803C01
TE30A2403C01
TE30A4803C01
Notes:
Volts
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
Output
Current
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
Output
Power
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
Ripple &
Noise¹
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
Line
Regulation
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Overvoltage
Trip Range
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
Output
Connector
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Input
Configuration
Class I
Desktop,
IEC60320 C14
Receptacle
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II
Desktop,
IEC60320 C8
Receptacle
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II
Desktop,
IEC60320 C18
Receptacle
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II Wall-
Plug,
Interchangeabl
e Blades
(North
American Blade
included)²
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II Wall-
Plug, Fixed
North American
Blades³
1. Measured at the output connector, with noise probe directly across output and load terminated with 0.1μF ceramic and 10μF low ESR capacitors. For 5V and 6V models, values listed
are typical, 100mV pk-pk maximum with 0.1μF ceramic and 47μF low ESR capacitors used at measurement point.
2. Order blade kit KT-1027K for other blades (EU. UK, Australia)
3. For EU fixed blades, replace “C” in the model number with “M”, for UK blades, replace “C” with “G”, for Australia blades, replace “C” with “H”.
4. All specifications are typical at nominal input, full load, at 25C
ambient unless noted.
www.slpower.com
TE30 Rev 1.5
11-JAN-16
PRELIMINARY
1
TE30
20W-30W Single Output External Power
Test & Measurement/Industrial Series
General Specifications
AC Input
100-240Vac, ±10%, 47-63Hz, 1∅
Turn On Time
Less than 700mS @115Vac, full load
Input Current
115Vac: 1.2A, 230Vac: 0.6A
Hold-up Time
Overtemperature
Protection
Overload Protection
Short Circuit
Protection
Overvoltage
Protection
Isolation
20mS min., at full Load, 100Vac input
Inrush Current
264Vac, cold start: will not exceed 40A
Will shutdown upon an overtemperature
condition, auto-recovery.
Input Fuse
Earth Leakage
Current
Efficiency
2.0A, 250Vac
Input-GND: <500μA@264Vac, 60Hz, NC
Output-GND: <4mA@264Vac, 60Hz, NC

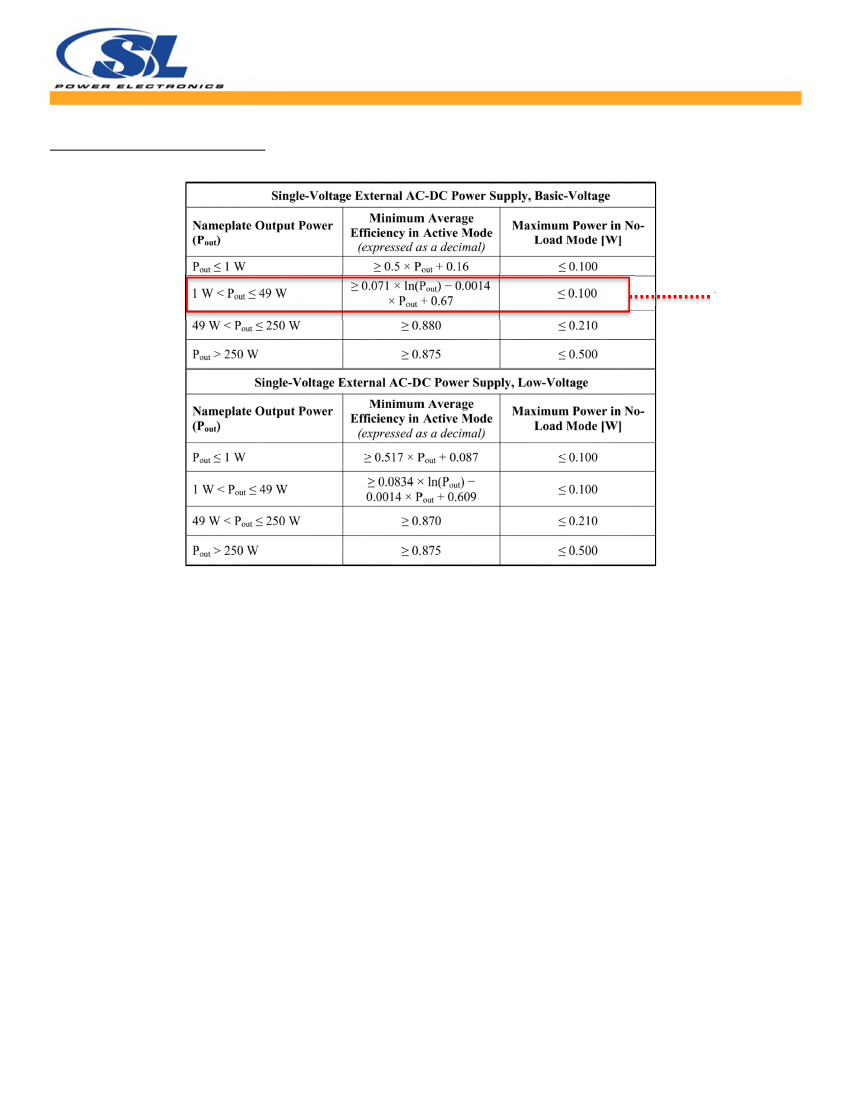

Meets US DoE Efficiency Level VI Average
efficiency levels
20 to 30W continuous – See models chart for
specific voltage model ratings.
<0.1W per DoE Efficiency Level VI
Requirements
130 to 180% of rating, Hiccup Mode
Hiccup Mode, auto recovery.
Hiccup Mode. See model chart above for
trip ranges.
Input-Output: 4000Vac
Input-Ground: 1500Vac
Output-Ground: 1500Vac
EN/CSA/UL/IEC 60950-1, 2nd Edition, Am 2
-20°C to +50°C
Start Up at -40°C, full load,
(warmup period before
all parameters are within published specifications).
Output Power
No Load Input
Power
Ripple and Noise
Safety Standards
Operating
Temperature
Temperature
Derating
Storage Temperature
See models chart on pg 1.
Output Voltage
Transient
Response
Regulation
See models chart on pg 1.
500µs response time for return to within 0.5%
of final value for any 50% load step over the
range of 5% to 100% of rated load,
∆i/∆t<
0.2A/µs. Max. voltage deviation is +/-3.5%.
See models chart on pg 1.

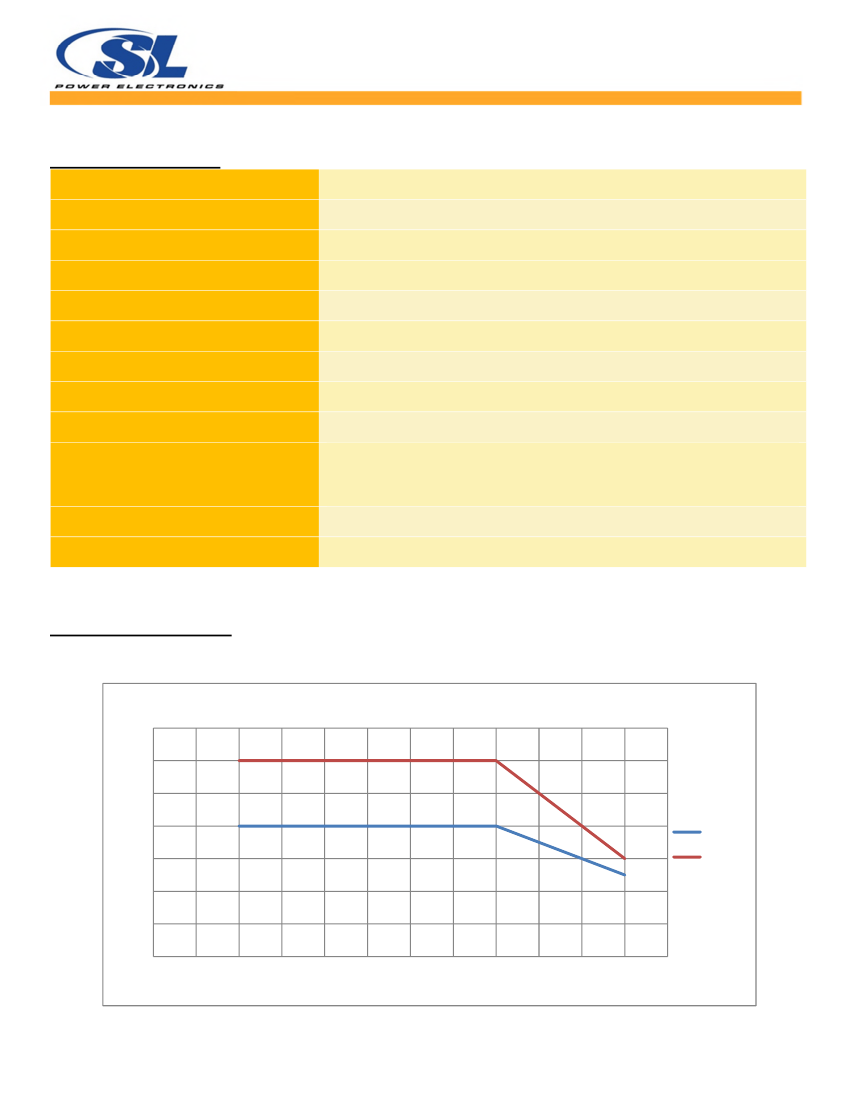

See Derating Charts below.
-40°C to +85°C
Altitude
Operating: to 5000m.
Non-operating: -500 to 40,000 ft.
Drop Test
1.4m from table top to wooden platform, 4
faces.
Operating: 0.003g/Hz, 1.5grms overall, 3
axes, 10 min/axis, 1-500Hz.
Non-Oper.: random waveform, 3 minutes per
axis, 3 axes and Sine waveform, Vib.
frequency/acceleration: 10-500Hz/1g, sweep
rate of 1 octave / minutes, Vibration time of 10
sweeps / axes, 3 axes

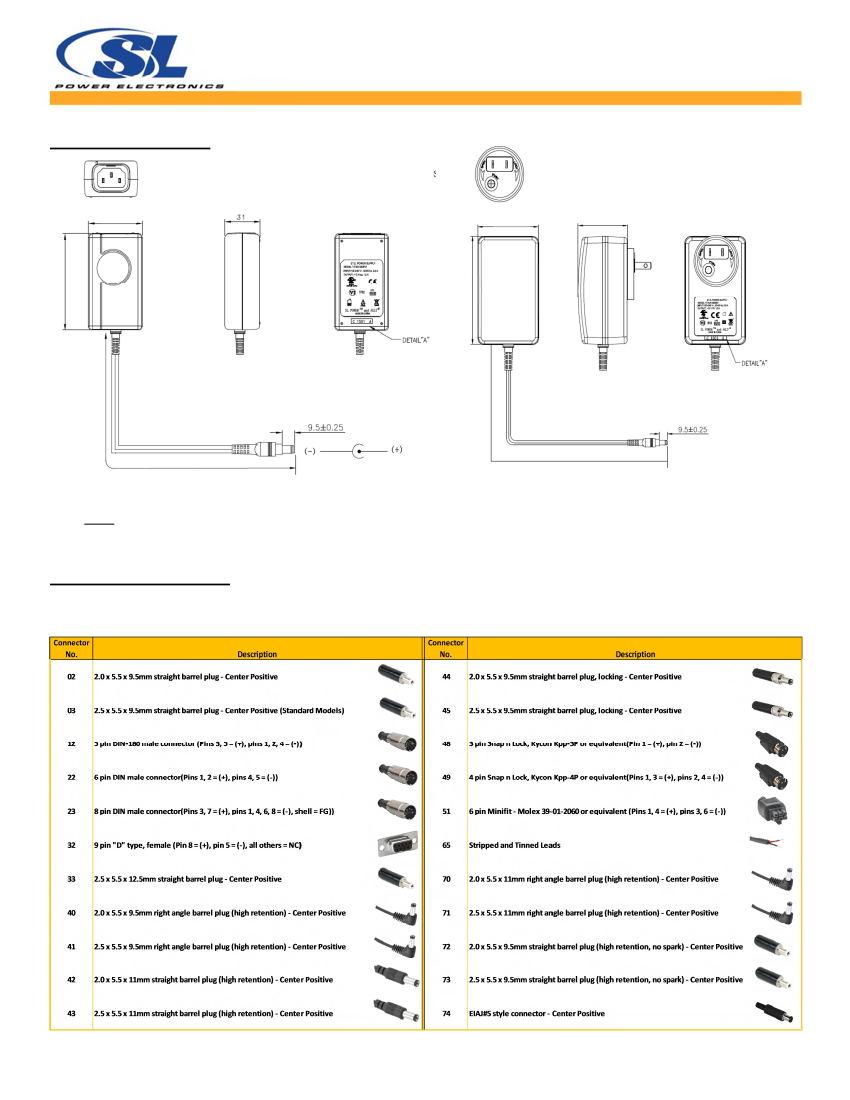

See outline drawings
Relative Humidity
5% to 95%, non-condensing
Operating: Half-sine, 20gpk, 10mS, 3 axes,
6 shocks total
Non-Operating: Half-sine waveform, impact
acceleration of 100G, Pulse duration of 6
mS, Number of shocks: 3 for each of the
three axis
>1,000,000 hours, full load, 110 & 220Vac
input, 25°C amb., per Telcordia 332 Issue 6.
>8 year life based on calculations at
115Vac/60Hz & 230Vac/50Hz, ambient 25°C
at 24 hrs per day, 365 days/year, 6 power up
cycles per day.
Vibration
Shock
Dimensions
MTBF
Weight
250g
E-Cap Life
All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
TE30 Rev 1.5
11-JAN-16
PRELIMINARY
2
TE30
20W-30W Single Output External Power
Test & Measurement/Industrial Series
EMI/EMC Compliance
Conducted Emissions:
Radiated Emissions:
Common Mode Noise:
Electro-Static Discharge (ESD)
Immunity on Power ports:
Radiated RF EM Fields Susceptibility
Electrical Fast Transients (EFT) /Bursts:
Surges, Line to Line (Diff Mode) and Line
to GND (CMN Mode)
Conducted Disturbances induced by RF
Fields
Rated Power frequency magnetic fields
Voltage Interruptions, Dips, Sags &
Surges
Harmonic Current Emissions
Flicker Test
EN55011/CISPR22 Class B, FCC Part 15.107, Class B: 6db margin typ, at 115 and 230Vac
EN55022/CISPR22 Class B, FCC Part 15.109, Class B: 3db margin typ, at 115 and 230Vac
