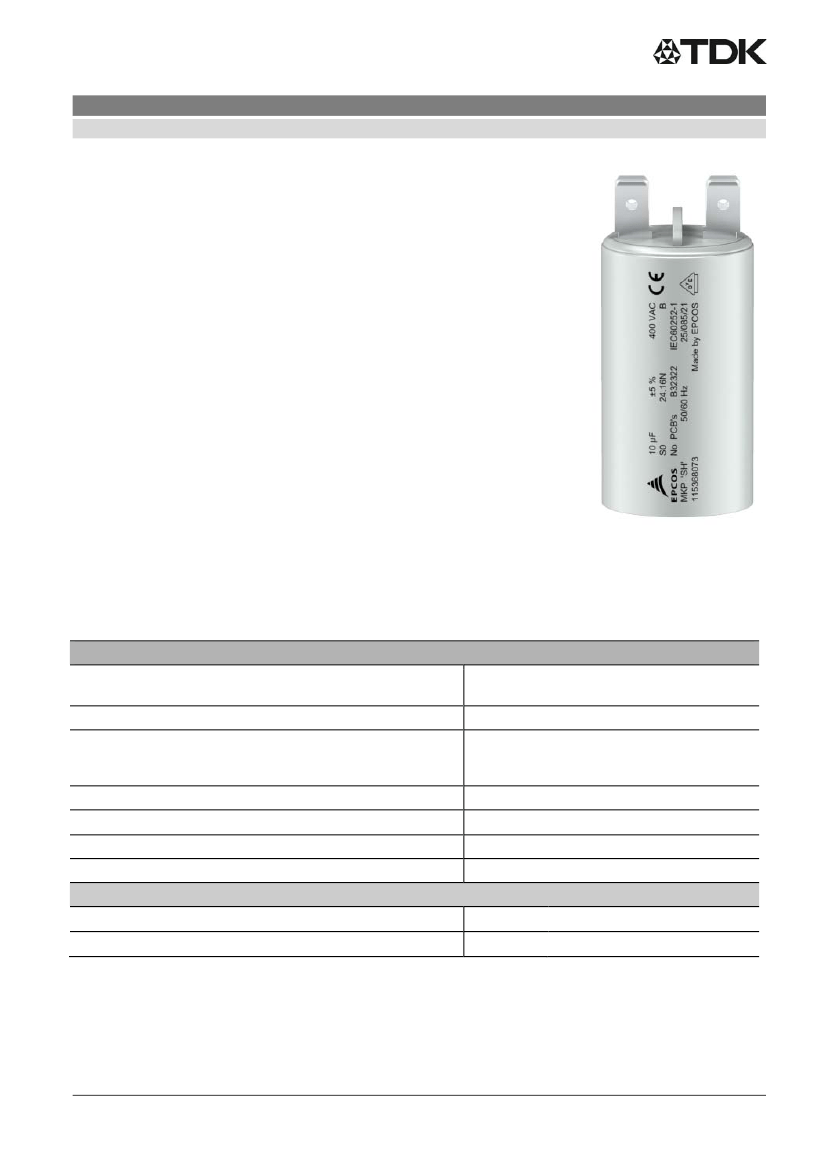

Film Capacitors – AC Capacitors
Motor run capacitors
B32320/B32322
B32320/B32322 – MotorCap
Construction
Metallized polypropylene film
Plastic can and top UL 94 V2 material minimum
Dry type
Features
Self-healing properties
Low dissipation factor
S0 safety class to IEC60252-1 (ed.2) am1:
High insulation resistance
Typical applications
For general sine wave applications,
Mainly as motor run capacitor
Terminals
B32320 – single fast-on: 6.3 × 0.8 mm
B32322 – double fast-on: 6.3 × 0.8 mm
Mounting parts (optional)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Locking clip for mounting into a hole of Ø 8 mm
Technical data and specifications
Reference standards
Safety class to IEC 60252-1/ 2013
Life expectancy to IEC 60252-1 /2013
EN60252-1: 2014-07
IEC60252-1: Ed 2,2013-8,amendment 1
S0
250 V/85 °C:
400 V/85 °C:
480 V/85 °C:
5%
250 V AC, 400 V AC, 480 V AC
50/60 Hz
1.1
V
R
1.3
I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
10000 h (class B)
10000 h (class B)
3000 h (class C)
Rated capacitance C
R
Tolerance Tx
Rated voltage V
rms
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
See table ordering code
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32320/B32322
B32320/B32322 – MotorCap
Test data
AC test voltage terminal to terminal V
TT
Insulation resistance R
ins
or time constant
at 20 °C, rel. humidity
65% (minimum as-delivered values)
Dissipation factor tan
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and –2-1/1
Test temp 550 °C for I
R
≤
0.5 A
Test temp 850 °C for I
R
> 0.5 A
Self-extinguishing within 30 seconds of
withdrawing the glow wire and without igniting
wrapping tissue.
> 250 V
20 N at 125 °C
Compliant to IEC 60252-1
25/085/21 to IEC 60068-1
–25° C
+85° C
21 days
2
V
R
, 2 s (routine test)
2
V
R
, 60 s (type test)
3000 s
7.0
10
-3
(1 kHz )
10 V/s
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
Approvals
VDE EN 60252-1
Approved
400 V/85 °C: 10000 h (class B) for 1.5 µF to 50
µF
480 V/85 °C: 3000 h (class C) for 3 µF to 35 µF
Compliance to LV directive 2014/35/EU
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data sheets, data
books, other publications, on the EPCOS website, or in order-related documents such as shipping notes, order
confirmations and product labels.
The varying representations of the ordering codes are due to different
processes employed and do not affect the specifications of the respective products.
Detailed information
can be found on the Internet under www.epcos.com/orderingcodes
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32320/B32322
B32320/B32322 – MotorCap

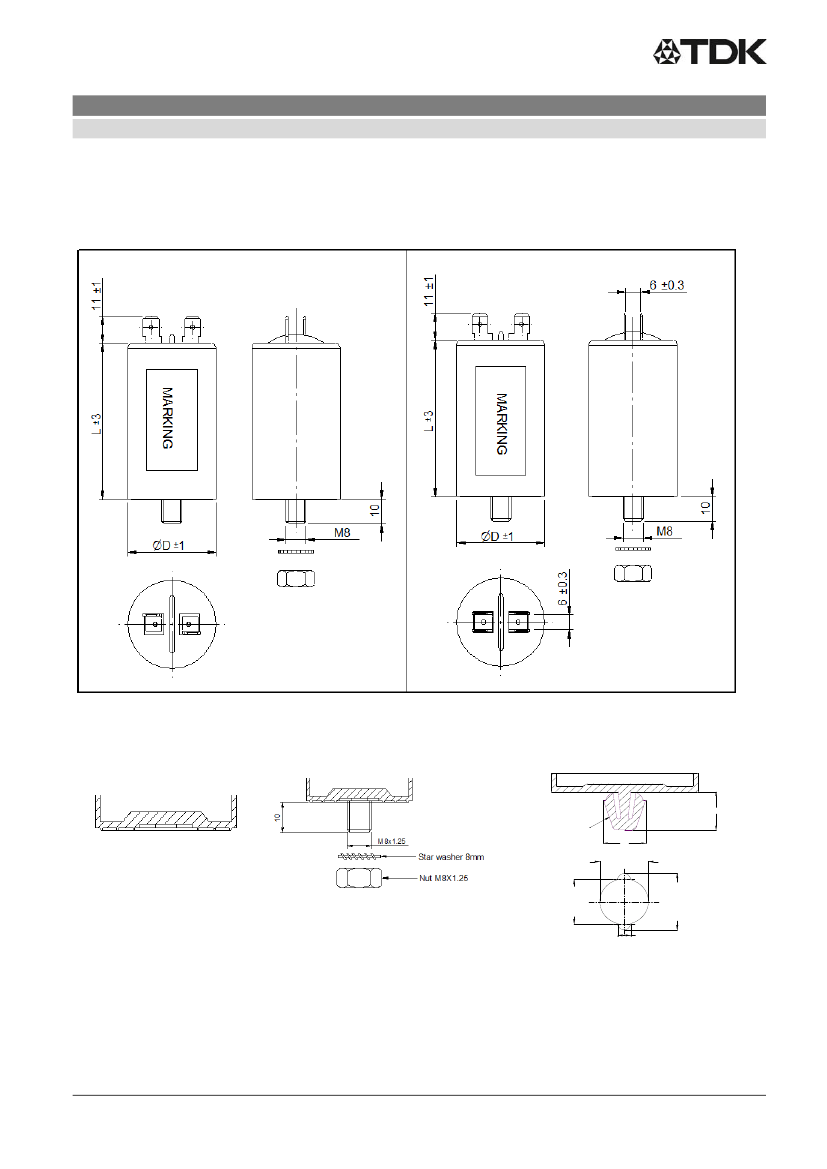

Dimensional drawings
B32320
B32322
Mounting options
# = 3: Can with M8 bolt
# = 1: Can without mounting
# = 5: Locking clip
10
M8-sized
M-Clip
fast
fixation
10
Ø8.2+0.2/-0
10.2+0.1/-0
2.0±0.05
Ø2.2+0.1/-0
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32320/B32322
B32320/B32322 – MotorCap
Ordering codes and packing units
Rated
voltage
V
R
V AC
Rated
capacitance
C
R
F
1.5
2
3
4
5
6
7
7.5
8
9
10
250
12
14
15
16
18
20
22
25
30
35
40
45
50
55
60
Dimensions
D×L
B32320
mm
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 96
40 × 96
40 × 96
Dimensions
D×L
B32322
mm
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 96
40 × 96
40 × 96
B3232*C1155J0#0
B3232*C1205J0#0
B3232*C1305J0#0
B3232*C1405J0#0
B3232*C1505J0#0
B3232*C1605J0#0
B3232*C1705J0#0
B3232*C1755J0#0
B3232*C1805J0#0
B3232*C1905J0#0
B3232*C1106J0#0
B3232*C1126J0#0
B3232*C1146J0#0
B3232*C1156J0#0
B3232*C1166J0#0
B3232*C1186J0#0
B3232*C1206J0#0
B3232*C1226J0#0
B3232*C1256J0#0
B3232*C1306J0#0
B3232*C1356J0#0
B3232*C1406J0#0
B3232*C1456J0#0
B3232*C1506J0#0
B3232*C1556J0#0
B3232*C1606J0#0
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
pcs.
112
112
112
112
112
112
112
112
112
112
112
112
112
112
84
84
84
84
84
84
60
60
60
60
60
60
