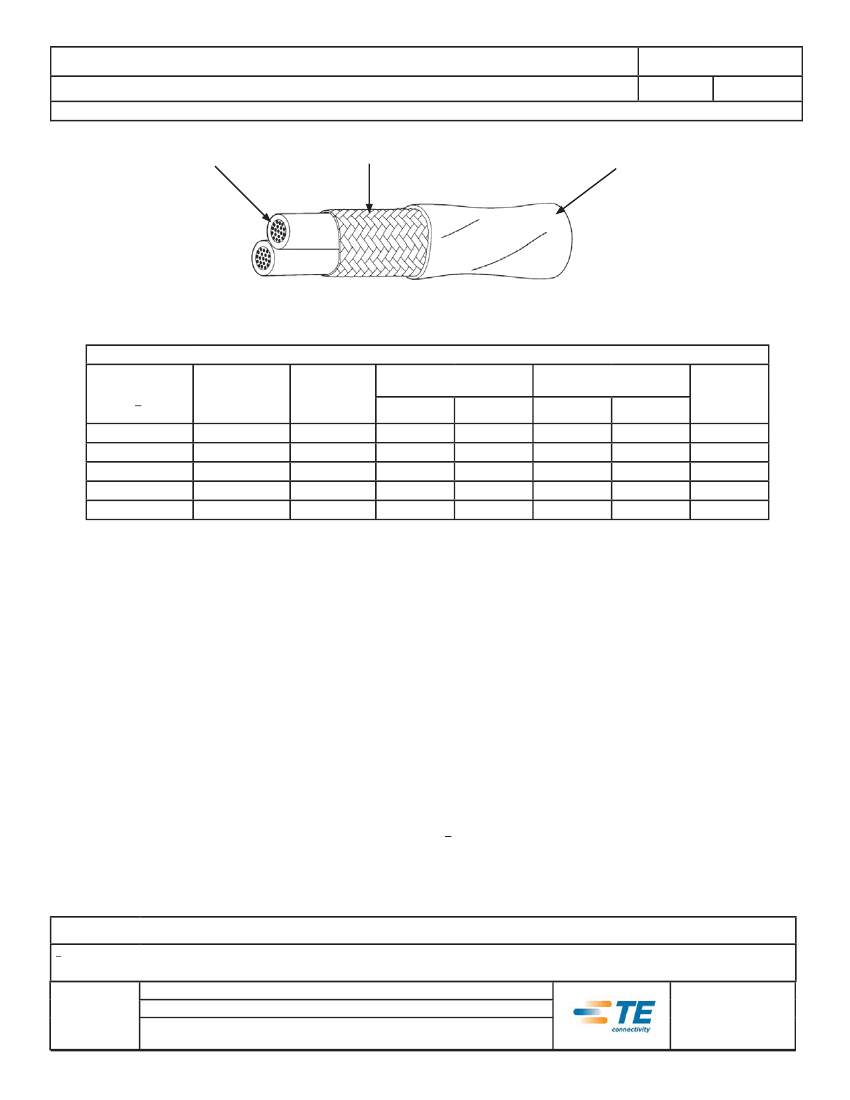

SPECIFICATION CONTROL DRAWING

TITLE

Date

55/2324

Revision

TWO CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, OUTER SPACE, 600 VOLT

This speciﬁcation sheet forms a part of the latest issue of Raychem Speciﬁcation 55/.

8-14-13

COMPONENT WIRES - 55/0314

SHIELD - TIN-COATED COPPER

JACKET - LOW OUTGASSING,

RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETAILS

PART NUMBER

55/2324-28-*

55/2324-26-*

55/2324-24-*

55/2324-22-*

55/2324-20-*

CONDUCTOR

SIZE

(AWG)

SHIELD

STRAND

THICKNESS

(± .0004 inch)

.0015

JACKET THICKNESS

(in.)

MINIMUM

.0040

.0045

NOMINAL

.0050

.0055

OUTSIDE DIAMETER

(in.)

NOMINAL

.063

.072

.079

.096

.118

MAXIMUM

.067

.076

.083

.100

.122

MAXIMUM

WEIGHT

(lbs/1000 ft.)

3.69

4.92

5.98

8.84

12.99

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

TEMPERATURE RATING: 150°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

JACKET COLOR: White preferred

JACKET ELONGATION: 50% (minimum)

JACKET FLAWS:

Spark Test, 1000 volts (rms)

Impulse Dielectric Test, 6.0 kV (peak)

RADIATION RESISTANCE: 500 megarads

SHIELD COVERAGE: 90% (minimum)

VACUUM STABILITY:

Total Mass Loss (TML), 1.00% (maximum)

Volatile Condensable Material (VCM), 0.10% (maximum)

VOLTAGE WITHSTAND (Post Environmental):

1500 volts (rms), 60 Hz, 1 minute

PART NUMBER:

The “*” in the part numbers above shall be replaced by color code

designators with a slash separating the component wire colors and a

dash separating the component wire colors from the jacket color.

1/ Example: AWG 24, black and brown component wires; white jacket:

55/2324-24-0/1-9

NOTE: Nominal values are for information only.

Nominal values are not requirements.

Users should evaluate the suitability of this product for their application. Speciﬁcations are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any speciﬁcation, without notiﬁcation to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”). OTHER CODES AND

SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
