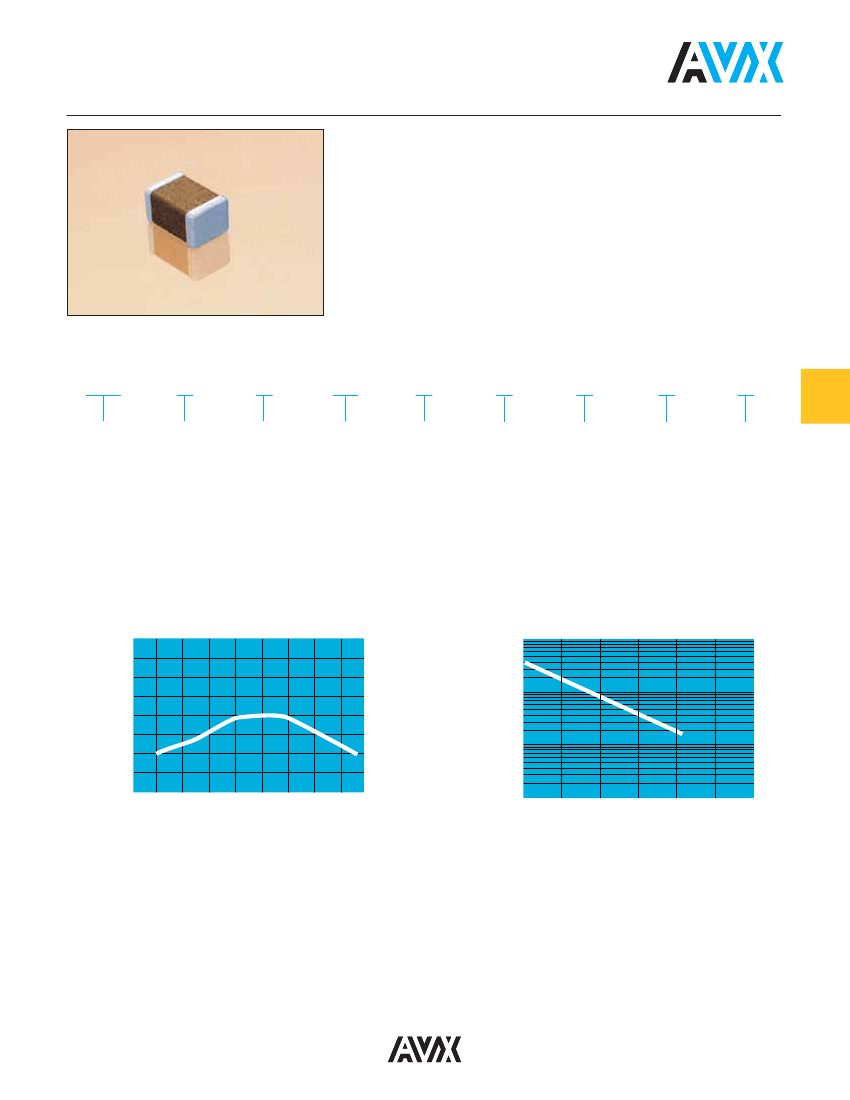

X5R Dielectric
General Specifications
GENERAL DESCRIPTION
• General Purpose Dielectric for Ceramic Capacitors
• EIA Class II Dielectric
• Temperature variation of capacitance is within ±15%
from -55°C to +85°C
• Well suited for decoupling and filtering applications
• Available in High Capacitance values (up to 100µF)
PART NUMBER
(see page 2 for complete part number explanation)
2220
Size
(L" x W")
6
Voltage
4 = 4V
6 = 6.3V
Z = 10V
Y = 16V
3 = 25V
D = 35V
5 = 50V
D
Dielectric
D = X5R
107
Capacitance
Code (In pF)
2 Sig. Digits +
Number of
Zeros
M
Capacitance
Tolerance
K = ±10%
M = ±20%
A
Failure
Rate
A = N/A
T
Terminations
T = Plated Ni
and Sn
2
Packaging
2 = 7" Reel
4 = 13" Reel
7 = Bulk Cass.
9 = Bulk
A
Special
Code
A = Std.
TYPICAL ELECTRICAL CHARACTERISTICS
Insulation Resistance (Ohm-Farads)
Temperature Coefficient
20
15
Insulation Resistance vs Temperature
10,000
Capacitance
10
5
0
-5
-10
-15
-20
-60
-40
-20
0
+20
+40
+60
+80
1,000
100
%
Temperature
°C
0
0
20
40
60
80
100
120
Temperature
°C
19
X5R Dielectric
Specifications and Test Methods
Parameter/Test
Operating Temperature Range
Capacitance
Dissipation Factor
X5R Specification Limits
-55ºC to +85ºC
Within specified tolerance
≤
2.5% for
≥
50V DC rating
≤
3.0% for 25V DC rating
≤
3.5% for 16V DC rating
≤
5.0% for
≤
10V DC rating
100,000MΩ or 500MΩ - µF,
whichever is less
No breakdown or visual defects
No defects
≤
±12%
Meets Initial Values (As Above)
≥
Initial Value x 0.3
≥
95% of each terminal should be covered
with fresh solder
No defects, <25% leaching of either end terminal
≤
±7.5%
Meets Initial Values (As Above)
Meets Initial Values (As Above)
Meets Initial Values (As Above)
No visual defects
≤
±7.5%
Meets Initial Values (As Above)
Meets Initial Values (As Above)
Meets Initial Values (As Above)
No visual defects
≤
±12.5%
≤
Initial Value x 2.0 (See Above)
≥
Initial Value x 0.3 (See Above)
Meets Initial Values (As Above)
No visual defects
≤
±12.5%
≤
Initial Value x 2.0 (See Above)
≥
Initial Value x 0.3 (See Above)
Meets Initial Values (As Above)
Step 1: -55ºC ± 2º
Step 2: Room Temp
Step 3: +85ºC ± 2º
Step 4: Room Temp
30 ± 3 minutes
≤
3 minutes
30 ± 3 minutes
≤
3 minutes
Dip device in eutectic solder at 260ºC for 60
seconds. Store at room temperature for 24 ± 2
hours before measuring electrical properties.
90 mm
Measuring Conditions
Temperature Cycle Chamber
Freq.: 1.0 kHz ± 10%
Voltage: 1.0Vrms ± .2V
For Cap > 10 µF, 0.5Vrms @ 120Hz
Charge device with rated voltage for
120 ± 5 secs @ room temp/humidity
Charge device with 300% of rated voltage for
1-5 seconds, w/charge and discharge current
limited to 50 mA (max)
Deflection: 2mm
Test Time: 30 seconds
1mm/sec
Insulation Resistance
Dielectric Strength
Appearance
Capacitance
Variation
Dissipation
Factor
Insulation
Resistance
Resistance to
Flexure
Stresses
Solderability
Appearance
Capacitance
Variation
Dissipation
Factor
Insulation
Resistance
Dielectric
Strength
Appearance
Capacitance
Variation
Dissipation
Factor
Insulation
Resistance
Dielectric
Strength
Appearance
Capacitance
Variation
Dissipation
Factor
Insulation
Resistance
Dielectric
Strength
Appearance
Capacitance
Variation
Dissipation
Factor
Insulation
Resistance
Dielectric
Strength
Dip device in eutectic solder at 230 ± 5ºC
for 5.0 ± 0.5 seconds
Resistance to
Solder Heat
Thermal
Shock
Repeat for 5 cycles and measure after
24 ± 2 hours at room temperature
Charge device with 1.5X rated voltage in
test chamber set at 85ºC ± 2ºC for 1000 hours
(+48, -0). Note: Contact factory for specific high
CV devices that are tested at 1.5X rated voltage.
Remove from test chamber and stabilize
at room temperature for 24 ± 2 hours
before measuring.
Store in a test chamber set at 85ºC ± 2ºC/
85% ± 5% relative humidity for 1000 hours
(+48, -0) with rated voltage applied.
Remove from chamber and stabilize at
room temperature and humidity for
24 ± 2 hours before measuring.
Load Life
Load
Humidity
20
Packaging of Chip Components
Automatic Insertion Packaging
TAPE & REEL QUANTITIES
All tape and reel specifications are in compliance with RS481.
8mm
Paper or Embossed Carrier
Embossed Only
Paper Only
Qty. per Reel/7" Reel
Qty. per Reel/13" Reel
0201, 0306, 0402, 0603
2,000, 3,000 or 4,000, 10,000, 15,000
Contact factory for exact quantity
12mm
0612, 0508, 0805, 1206,
1210
1808
1812, 1825
2220, 2225
500, 1,000
Contact factory for exact quantity
3,000
10,000
5,000, 10,000, 50,000
Contact factory for exact quantity
4,000

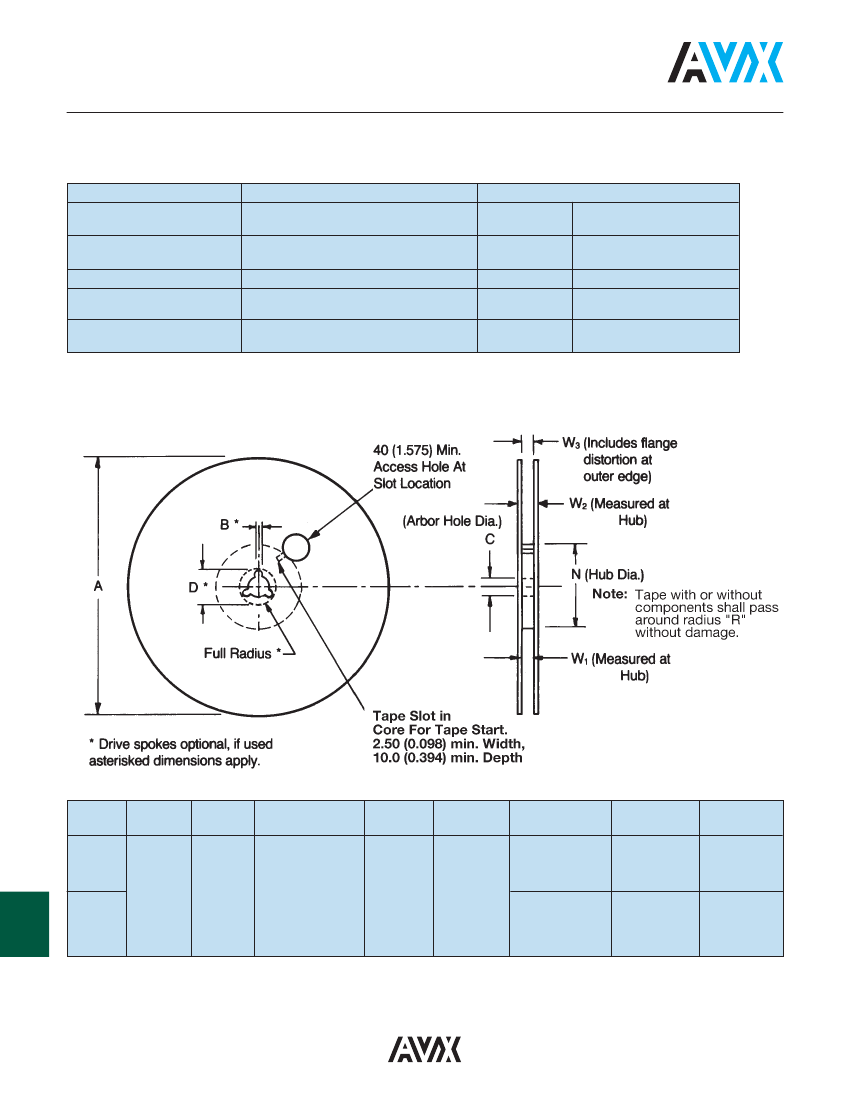

REEL DIMENSIONS
Tape
Size
(1)
8mm
A
Max.
B*
Min.
C
D*
Min.
N
Min.
W
1
-0.0
8.40
+1.5
+0.059
(0.331
-0.0
)
W
2
Max.
14.4
(0.567)
W
3
7.90 Min.
(0.311)
10.9 Max.
(0.429)
11.9 Min.
(0.469)
15.4 Max.
(0.607)
330
(12.992)
12mm
1.5
(0.059)
13.0
+0.50
-0.20
-0.008
(0.512
+0.020
)
20.2
(0.795)
50.0
(1.969)
-0.0
12.4
+2.0
-0.0
(0.488
+0.079
)
18.4
(0.724)
Metric dimensions will govern.
English measurements rounded and for reference only.
(1) For tape sizes 16mm and 24mm (used with chip size 3640) consult EIA RS-481 latest revision.
