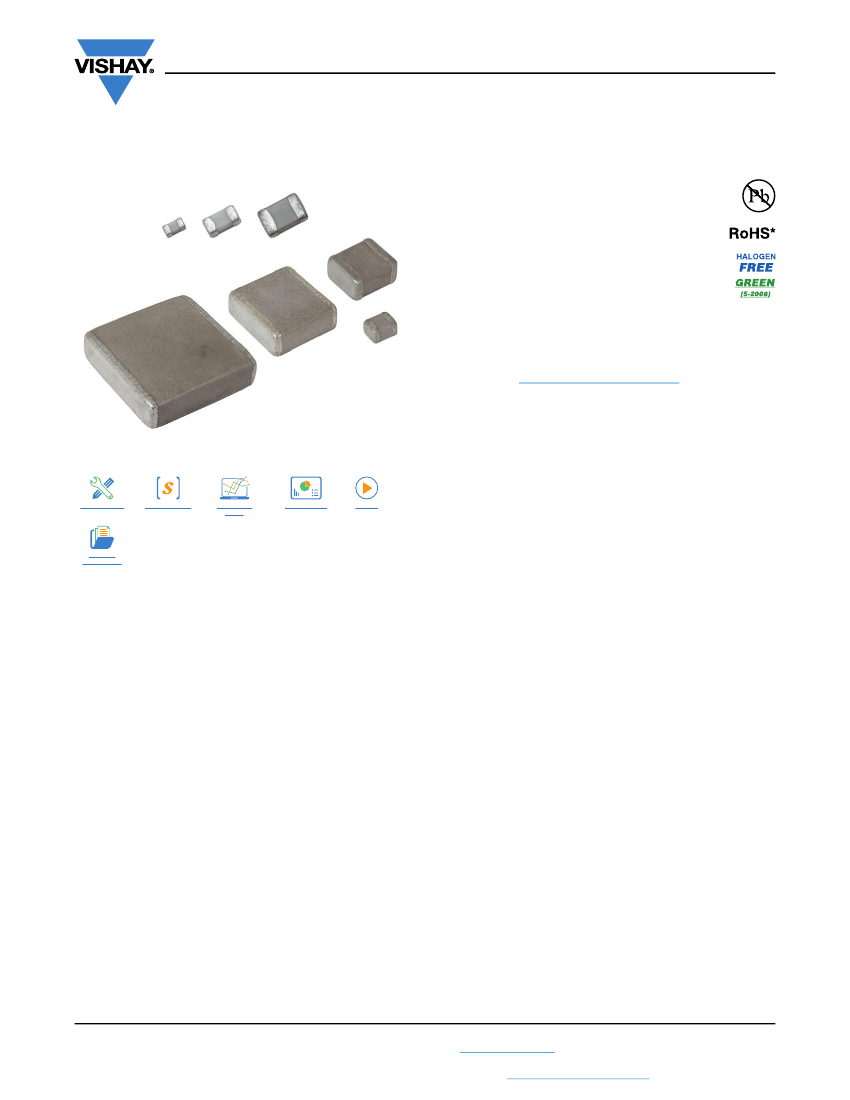

VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer
Ceramic Chip Capacitors for High Frequency
FEATURES
• Case size 0402, 0505, 0603, 0805, 1111,
2525, and 3838
Available
• High frequency
Available
• Ultra-stable, high Q dielectric material
• Non-magnetic copper termination “C”
• Lead (Pb)-free terminations code “X”
• Tin / lead termination code “L”
Available
• Surface mount, wet build process
• Reliable Noble Metal Electrode (NME) system
• Made with a combination of design, materials, and tight
process control to achieve very high field reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
LINKS TO ADDITIONAL RESOURCES
Design Tools
S-Parameters
Simulation
Tools
Infographics
Videos
APPLICATIONS
•
•
•
•
•
•
•
RF and microwave instruments
Base stations
Wireless devices
Broadband communication
Medical instrumentation and test
Military devices (radar, communication, etc.)
Satellite communication
Related
Documents
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at 25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
0402: 0.1 pF to 82 pF
0505: 0.1 pF to 1.0 nF
0603: 0.1 pF to 470 pF
0805: 0.1 pF to 1.0 nF
1111: 0.2 pF to 3.3 nF
2525: 1.0 pF to 3.0 nF
3838: 1.0 pF to 12 nF
Voltage Rating:
0402: 25 V
DC
to 200 V
DC
0505: 50 V
DC
to 250 V
DC
0603: 25 V
DC
to 250 V
DC
0805: 25 V
DC
to 500 V
DC
1111: 50 V
DC
to 1500 V
DC
2525: 300 V
DC
to 3600 V
DC
3838: 300 V
DC
to 7200 V
DC
Temperature Coefficient of Capacitance (TCC):
C0G (D): 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C with
zero (0) V
DC
applied
Dissipation Factor (DF):
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 MHz
for values
≤
1000 pF
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 kHz
for values > 1000 pF
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage 100 000 MΩ minimum or
1000
ΩF,
whichever is less
at +125 °C and rated voltage 10 000 MΩ minimum or
100
ΩF,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA-198-2-E.
Applied test voltages:
≤
250 V
DC
-rated: min. 200 % of rated voltage
> 250 V
DC
- to 1000 V
DC
-rated: min. 150 % of rated voltage
1500 V
DC
and up: 120 % rated voltage
Revision: 02-Mar-2022
Document Number: 45258
1
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ Series
www.vishay.com
QUICK REFERENCE DATA
DIELECTRIC
CASE
0402
0505
0603
D = HIFREQ
0805
1111
2525
3838
MAXIMUM VOLTAGE
(V)
200
250
250
500
1500
3600
7200
CAPACITANCE
MINIMUM
0.1 pF
0.1 pF
0.1 pF
0.1 pF
0.2 pF
1.0 pF
1.0 pF
MAXIMUM
82 pF
1 nF
470 pF
1.0 nF
3.3 nF
3 nF
12 nF
Vishay Vitramon
ORDERING INFORMATION
VJ0603
CASE
CODE
0402
0505
0603
0805
1111
2525
3838
D
DIELECTRIC
D = HIFREQ
101
CAPACITANCE
NOMINAL CODE
Expressed in
picofarads (pF).
The first two digits
are significant, the
third is a multiplier.
An “R” indicates a
decimal point.
Examples:
1R0 = 1.0 pF
J
CAPACITANCE
TOLERANCE
V = ± 0.05 pF
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
M = ± 20 %
Note
Details see
“Selection
Chart”
X
TERMINATION
X = Ni barrier
100 % tin plate
matte finish
C = non-magnetic
copper barrier
100 % tin plate
matte finish
E = AgPd
(2)
L = Ni barrier
with tin lead
plated finish
min. 4 % lead
A
DC VOLTAGE
RATING
(1)
X = 25 V
A = 50 V
B = 100 V
K = 150 V
C = 200 V
P = 250 V
D = 300 V
E = 500 V
L = 630 V
I = 800 V
G = 1000 V
R = 1500 V
F = 2000 V
O = 2500 V
H = 3000 V
W = 3600 V
M = 5000 V
S = 7200 V
A
MARKING
A = unmarked
(3)
Q = marked
T = 7" reel / plastic tape
C = 7" reel / paper tape
O = 7" reel / flamed paper tape
J = 7" reel (low quantity)
R = 11 1/4" / 13" reel /
plastic tape
P = 11 1/4" / 13" reel /
paper tape
I = 11 1/4" / 13" reel /
flamed paper tape
W = waffle pack
Note
“I” and “O” is used for “E”
termination code
T
PACKAGING
(4)
Notes
(1)
DC voltage rating should not be exceeded in application
(2)
Termination code “E” is for conductive epoxy assembly - only available for EIA case sizes 0402, 0603, and 0805
(3)
Case size 0402 only available with “A”
(4)
See “Standard Packaging Quantities” table
ENVIRONMENTAL STATUS
TERMINATION CODE
C
X
E
L
TERMINATION DESCRIPTION
Non-magnetic copper barrier 100 % tin plated matte finish
Ni barrier 100 % tin plated matte finish
AgPd
Ni barrier tin lead plated with min. 4 % lead
RoHS COMPLIANT
Yes
Yes
Yes
No
VISHAY GREEN
Yes
Yes
Yes
No
Revision: 02-Mar-2022
Document Number: 45258
2
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
