Features
■
Maximum height of 1.60 mm
■
Current up to 3.2 A
■
RoHS compliant*
Applications
■
Input/output of DC/DC converters
■
Power supplies for:
*R
oH
S
CO
M
100
LE
AD
FR
EE
• Portable communication equipment
• Camcorders
• LCD TVs

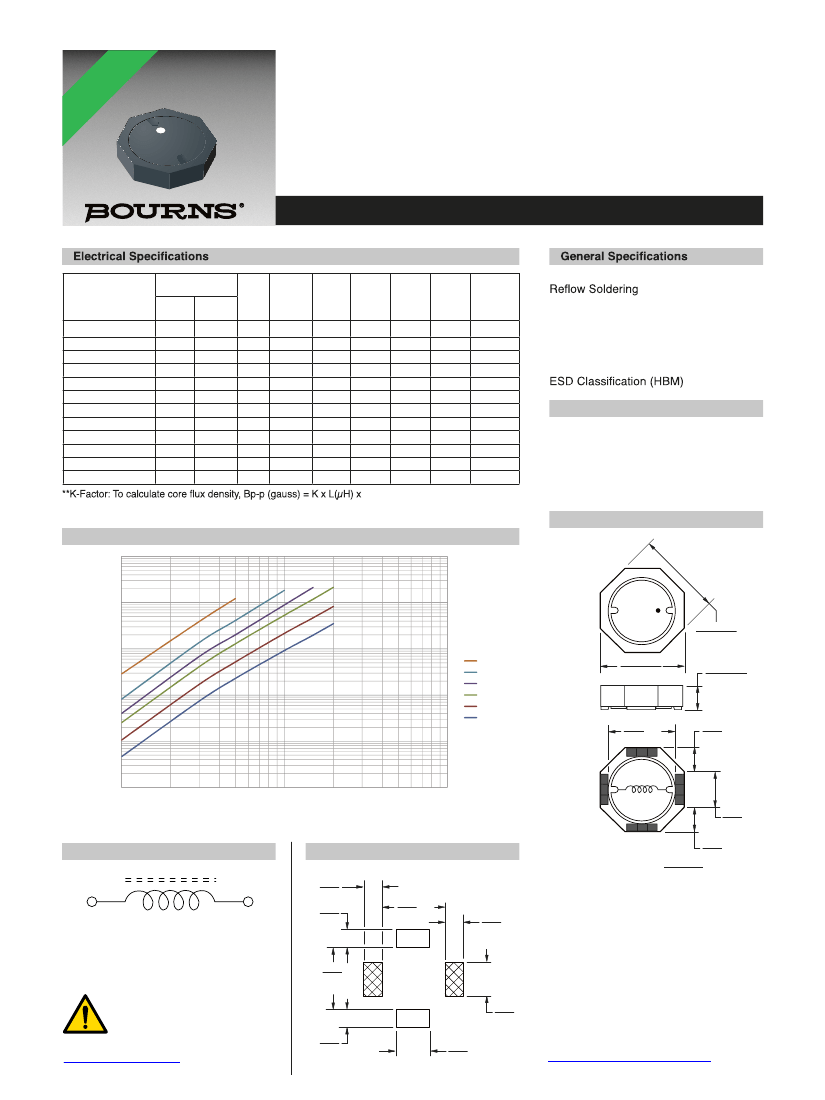

SRU6013 Series - Shielded SMD Power Inductors
Test Voltage ....................................0.1 V
.. 230 °C, 50 sec. max.
Operating Temp. .........-40 °C to +125 °C
(Temperature rise included)
Storage Temp. ............-40 °C to +125 °C
Resistance to Soldering Heat
............................... 260 °C for 10 sec.
Moisture Sensitivity Level .....................1
.................N/A
Materials
Core ....................Ferrite DR and RI core
Wire ............................Enameled copper
Terminal ....................................Ag/Ni/Sn
Rated Current..Ind. drop 35 % typ. at Isat
Temp. Rise.......40 °C max. at rated Irms

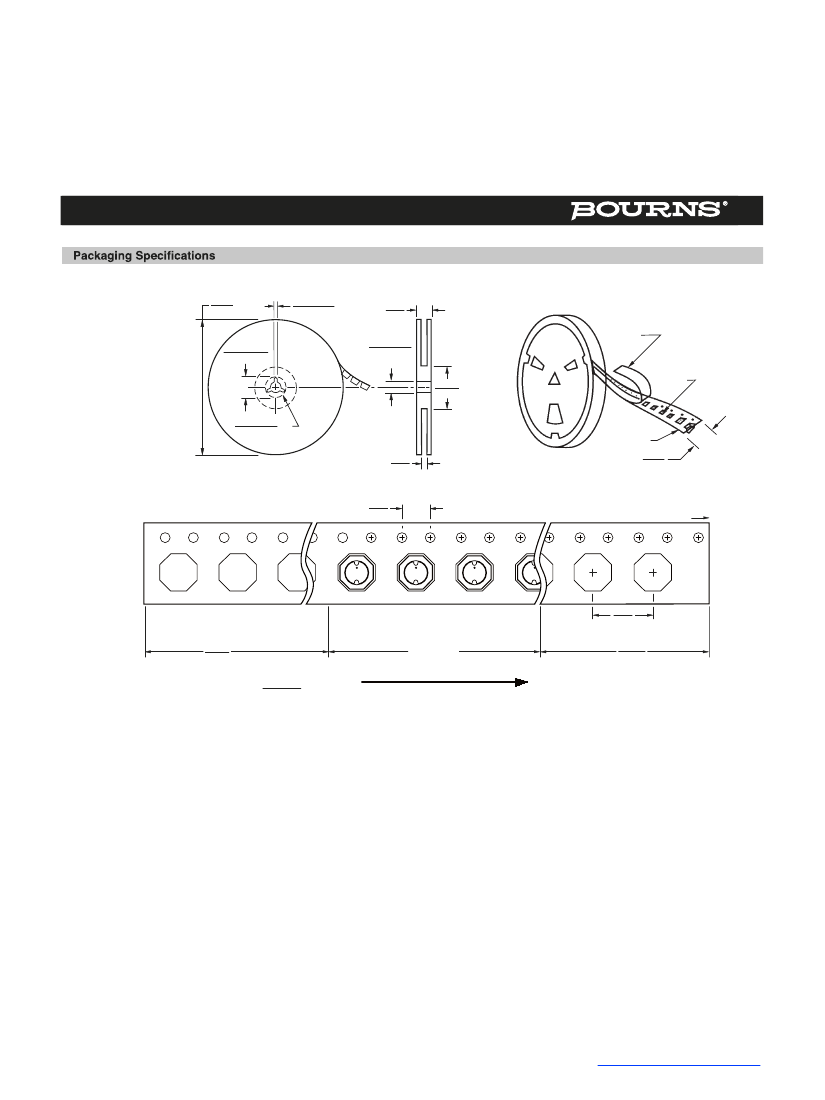

Packaging .................. 1000 pcs. per reel
Product Dimensions
Ro VE LEA
HS RS D
CO ION FRE
M SA E
PL R
IA E
NT
*
Bourns
Part Number
SRU6013-1R0Y
SRU6013-1R5Y
SRU6013-2R2Y
SRU6013-3R3Y
SRU6013-4R2Y
SRU6013-6R4Y
SRU6013-100Y
SRU6013-150Y
SRU6013-220Y
SRU6013-330Y
SRU6013-470Y
SRU6013-680Y
Inductance
@ 100 KHz
L
Tol.
(µH)
(%)
Q
Ref.
Test
Freq.
(MHz)
SRF
Typ.
(MHz)
RDC
Max.
(mΩ)
I rms
Max.
(A)
I sat
Typ.
(A)
Δ
I (peak-to-peak ripple current, A),
determine core loss from
Core Loss vs. Flux Density
plot.
1.0
1.5
2.2
3.3
4.2
6.4
10
15
22
33
47
68
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
12
10
10
10
10
10
14
12
12
10
10
10
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
100
90
80
70
55
45
35
26
22
18
14
10
36
40
50
60
75
110
165
235
325
500
675
900
3.20
3.00
2.50
2.35
2.10
1.70
1.40
1.10
0.95
0.78
0.66
0.60
2.90
2.40
2.10
1.75
1.50
1.30
1.00
0.80
0.72
0.58
0.50
0.40
**K-
Factor
453
370
313
272
214
177
151
116
99
77
65
57
Core Loss vs. Flux Density
1000
SRU6013
100
100
6.20 ± 0.30
(.244 ± .012)
100
Core Loss (mW)
10
6.50 ± 0.30
(.256 ± .012)
1
4.90
TYP.
(.193)
1 MHz
500 KHz
300 KHz
200 KHz
2.15
100 KHz
(.085)
TYP.
50 KHz
1.40 ± 0.20
(.055 ± .008)
6.20 ± 0.30
(.244 ± .012)
6.50 ± 0.30
(.256 ± .012)
1.40 ± 0.20
(.055 ± .008)
0.1
4.90
TYP.
(.193)
2.15
(.085)
TYP.
0.01
100
1000
10000
2.20
(.087)
TYP.
2.15
TYP.
(.085)
Flux Density Bp-p (gauss)
2.20
(.087)
TYP.
Electrical Schematic
Recommended Layout
REF.
1.10
(.043)
1.10
(.043)
REF.
4.90
REF.
(.193)
1.10
(.043)
REF.
DIMENSIONS:
REF.
1.10
(.043)
1.10
(.043)
REF.
MM
(INCHES)
2.15
TYP.
(.085)
4.90
REF.
(.193)
4.90
(.193)
REF.
2.40
(.094)
REF.
1.10
(.043)
REF.
WARNING Cancer and Reproductive Harm
www.P65Warnings.ca.gov
1.10
(.043)
REF.
2.40
REF.
(.094)
* RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
4.90
Specifications are subject to change without notice.
(.193)
Users should verify actual device performance in their
REF.
specific applications. The products described herein and
2.40
this document are subject to specific legal disclaimers as
(.094)
set forth on the last page of this document, and at
REF.
www.bourns.com/docs/legal/disclaimer.pdf
1.10
(.043)
REF.
2.40
REF.
(.094)
