LAN Components
ctparts.com
Not shown at actual size.
10/100 Base For
PCMCIA
APPLICATIONS
l
Designed for 10/100 Base/s TX & ATM 155 MB/s Application.
l
Meets ANSI X3.236-1995 TP-PMD, 100 Base-TX, ATM 155 bps UNI, and
IEEE 802.3u and 802.3i specifications.
l
Very low profile PCMCIA/PC Card, SMD package.
Electrical Specifications @ 25°C
Operating Temperature: 0°C to +70°C
HI-POT Isolation: 1500 Vrms
ORDERING INFO
Part
Number
CT-69012
CT-H0009
Insertion Loss
(dB Max.)
0.3~100MHz
-1.3
-1.3
Return Loss
(dB Min.)
30 MHz
60 MHz
80 MHz
-18
-16
-13
-12
-11
-11
Crosstalk
(dB Min.)
62 MHz
100 MHz
-40
-40
-35
-35
Differential to Common Mode
Rejection (dB Min.)
30 MHz 50 MHz 100 MHz 150 MHz
-40
-15
-35
-18
-30
-20
-20
-20
Turn Ratio
RX
1CT:1CT
1CT:1CT
TX
1CT:1CT
1CT:1CT
30 MHz
-40
-40

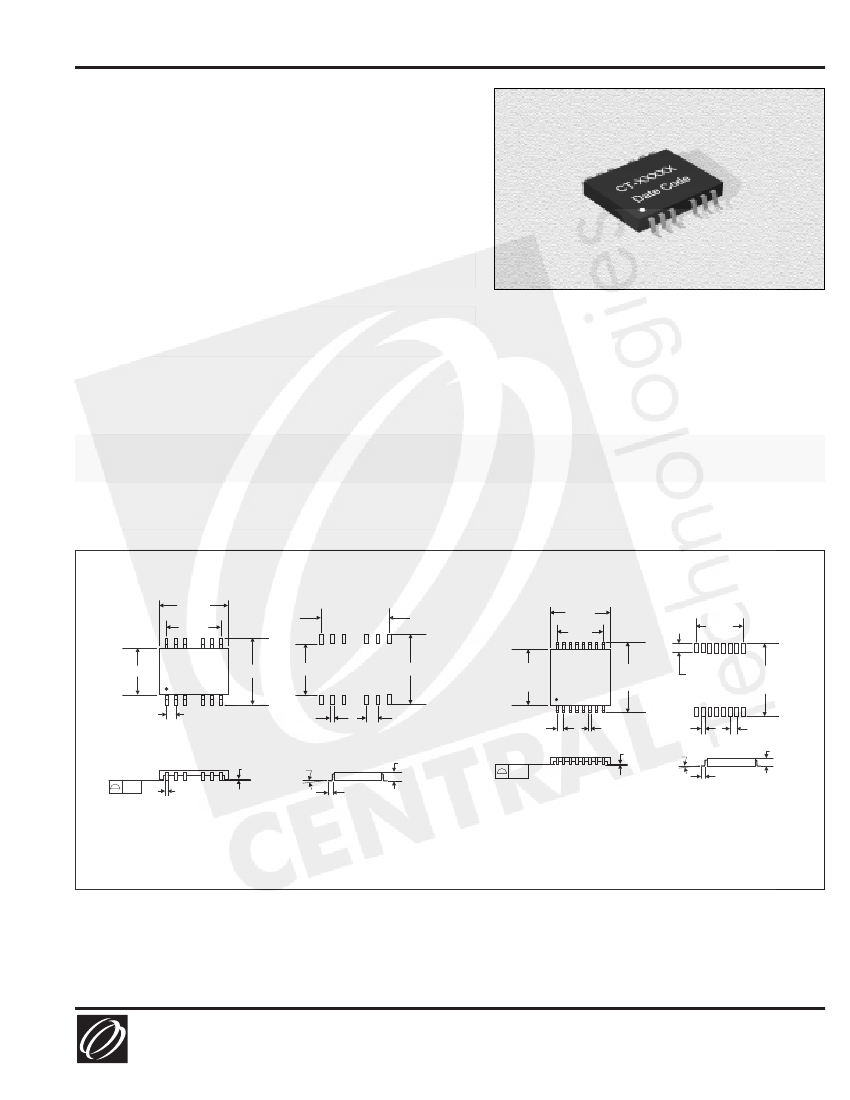

PHYSICAL DIMENSIONS
CT-69012
20.30
15.24
15.24
CT-H0009
14.18
8.89
8.89
13.40
CT-XXXXX
Date Code
2.54
17.40
14.86
17.91
14.18
CT-XXXXX
Date Code
17.1
1.4
14.99
0.76
2.54
1.27
2.40
1.5
0.48
0.25
0.76
0°~8°
0.9
1.27
2.21
0.20
0.1
12 Surfaces
0.48
0°~8°
0.1
16 Surfaces
Dimensions: mm
Tolerances:
±0.25
11.17.03
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2004 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
LAN Components
ctparts.com
10/100 Base For PCMCIA

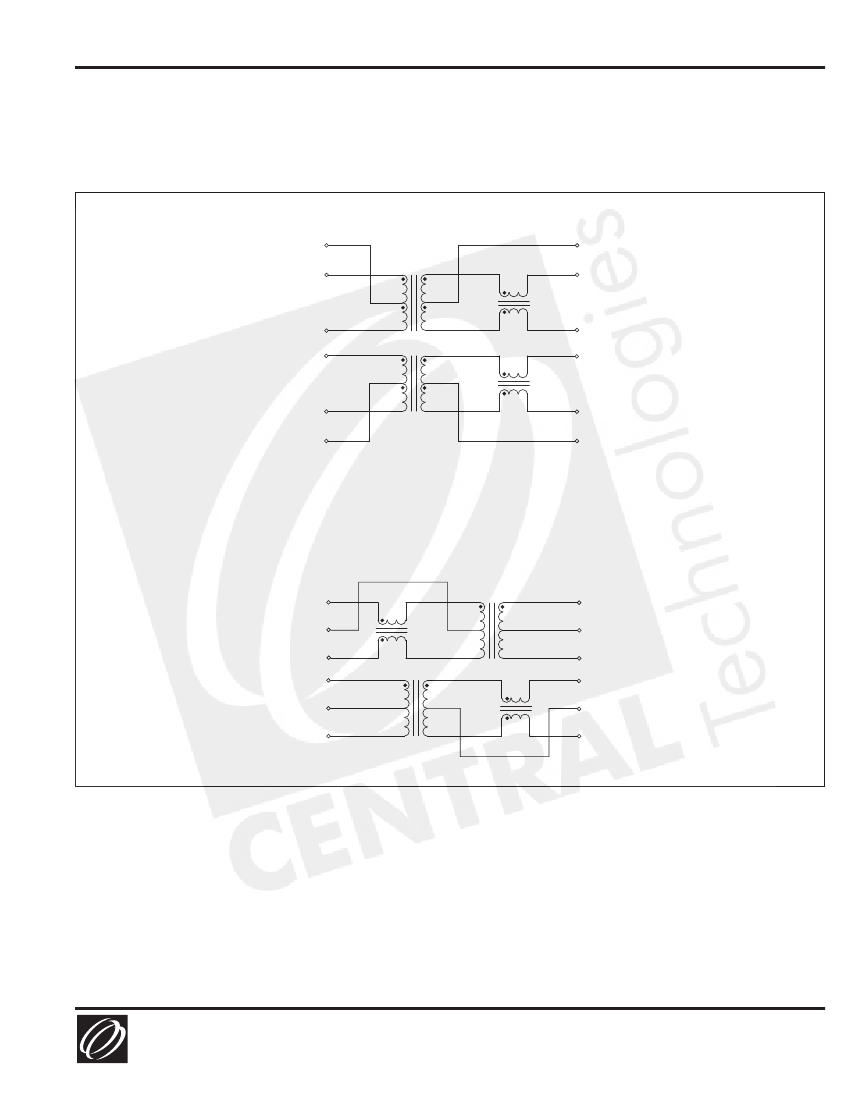

SCHEMATICS
CT-69012
CT 1
TD+ 2
14 CT
13 TX+
TD- 3
RD+ 5
12 TX-
10 RX+
RD- 6
CT 7
9 RX-
8 CT
CT-H0009
RX+ 1
RCT 3
RD- 2
TD+ 7
TCT 6
TD- 8
Transmit 1CT:1CT
Receive 1CT:1CT
16 RX+
14 RCT
15 RX-
10 TX+
11 TCT
9 TX-
11.17.03
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2004 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
