ELXQ421VSN181MP45S datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ELXQ421VSN181MP45S

ELXQ421VSN181MP45S: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 420V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size267KB，3 Pages; ManufacturerNIPPON CHEMI-CON; Websitehttp://www.chemi-con.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

ELXQ421VSN181MP45S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 420V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED

ELXQ421VSN181MP45S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2023940767
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	180 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.824863 mA
length	45 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	420 V
ripple current	980 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

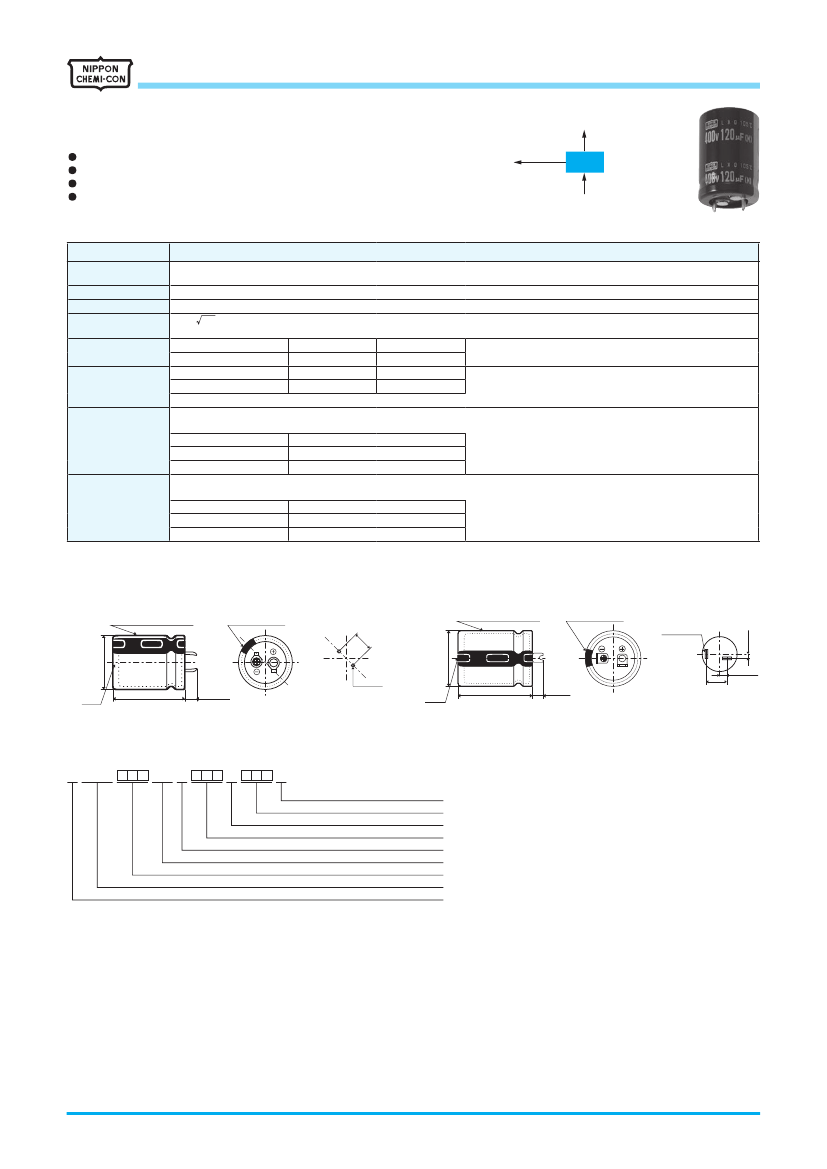

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS

Long life snap-ins, 105℃

LXQ

Items

Series

Downsized

LXS

LXM

Longer life

・Endurance

with ripple current : 5,000 hours at 105℃

・Downsized

and higher ripple version of LXG series

・Non

solvent resistant type

・RoHS2

Compliant

LXQ

Longer life

KMM

◆SPECIFICATIONS

Characteristics

-25 to +105℃

160 to 450V

±20%

(M)

I≦3 CV

Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)

Rated voltage (V

)

160 to 400V

420 & 450V

tanδ (Max.)

0.15

0.20

Rated voltage (V

)

160 to 400V

420 & 450V

Z(-25℃)/Z(+20℃)

(at 20℃, 120Hz)

(at 20℃ after 5 minutes)

(at 20℃, 120Hz)

ELXQ421VSN181MP45S Related Products

	ELXQ421VSN181MP45S	ELXQ451LIN181MA25S	ELXQ451VSN151MP40S	ELXQ451VSN221MR35S
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 420V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 180uF, Chassis Mount, CAN, LEAD FREE	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	2023940767	2023940787	2023940801	2023940812
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	180 µF	180 µF	150 µF	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm	35 mm	22 mm	30 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3
leakage current	0.824863 mA	0.8538149 mA	0.779422 mA	0.943927 mA
length	45 mm	25 mm	40 mm	35 mm
Installation features	THROUGH HOLE MOUNT	CHASSIS MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Snap-in	Snap-in	Snap-in	Snap-in
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	420 V	450 V	450 V	450 V
ripple current	980 mA	1100 mA	880 mA	1170 mA
surface mount	NO	NO	NO	NO
Delta tangent	0.2	0.2	0.2	0.2
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	SNAP-IN	LUG	SNAP-IN	SNAP-IN
Terminal pitch	10 mm	-	10 mm	10 mm
