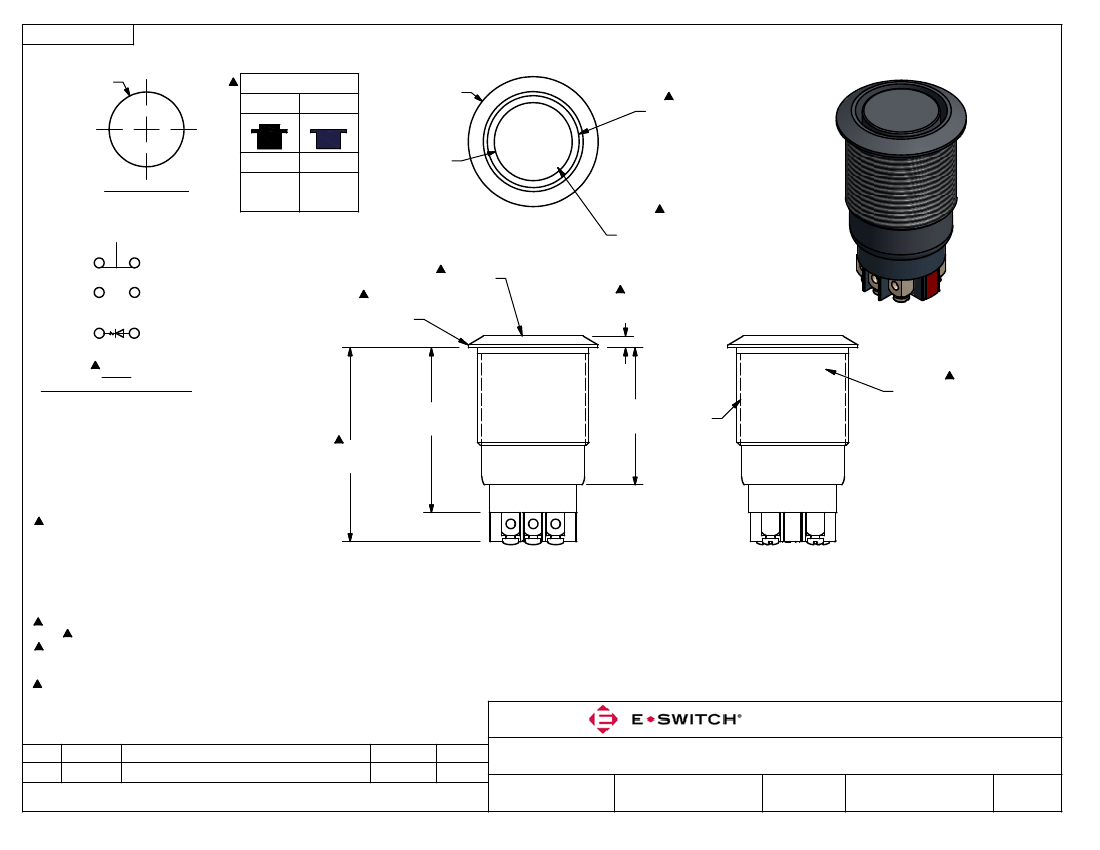

SHEET 1 OF 1
19.00
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
22.00
[.866 in]
RING ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-2
(ON)
3-4
13.20
[.520 in]
(ON) = MOMENTARY
ACTUATOR FINISH
BLACK
ANODIZED
FLAT ACTUATOR
1
4
_
2
3
+
BODY FINISH
BLACK
ANODIZED
2.00
[.079 in]
RED
SPDT
CONTACT CONFIGURATION
27.9
.5
[1.098
.020
in]
32.8
.5
NOTE:
[1.29
.02
in]
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 24V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: RED
17. 2002/95/EC (ROHS) COMPLIANT.
23.20
[.913 in] M19x1.0
NOTE 15
HARDWARE SUPPLIED
4
+
1
(+)
1
3
(-)
A
REV
21782
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
3/2/15
DATE
rc
BY
TITLE
SCALE
PV4F6Y011-315
1.5:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
3/2/2015
DR
rc
52-PV4F6Y011315
DWG
REV
A
