3D3D8G32YB2496I datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> 3D3D8G32YB2496I

Preview

3D3D8G32YB2496I: DescriptionDDR DRAM, 256MX32, CMOS, PBGA136, BGA-136; Categorystorage storage; File Size166KB，2 Pages; Manufacturer3D PLUS

Download Datasheet Parametric Compare View All

3D3D8G32YB2496I Overview

DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136

3D3D8G32YB2496I Parametric

Parameter Name	Attribute value
Objectid	1329860106
package instruction	FBGA,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	MULTI BANK PAGE BURST
Other features	ALSO OPERATES AT 1.5V; SELF REFRESH; SEATED HGT-NOM
JESD-30 code	R-PBGA-B136
length	14.8 mm
memory density	8589934592 bit
Memory IC Type	DDR DRAM
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	136
word count	268435456 words
character code	256000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256MX32
Package body material	PLASTIC/EPOXY
encapsulated code	FBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, FINE PITCH
Maximum seat height	3.3 mm
self refresh	YES
Maximum supply voltage (Vsup)	1.45 V
Minimum supply voltage (Vsup)	1.283 V
Nominal supply voltage (Vsup)	1.35 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
width	10.8 mm

Preview

Download Datasheet

View All

MEMORY MODULE

DDR3 SDRam 256Mx32-BGA

DDR3 Synchronous Dynamic Ram

3D3D8G32YB2496

8Gbit DDR3 SDRam organized as 256Mx32

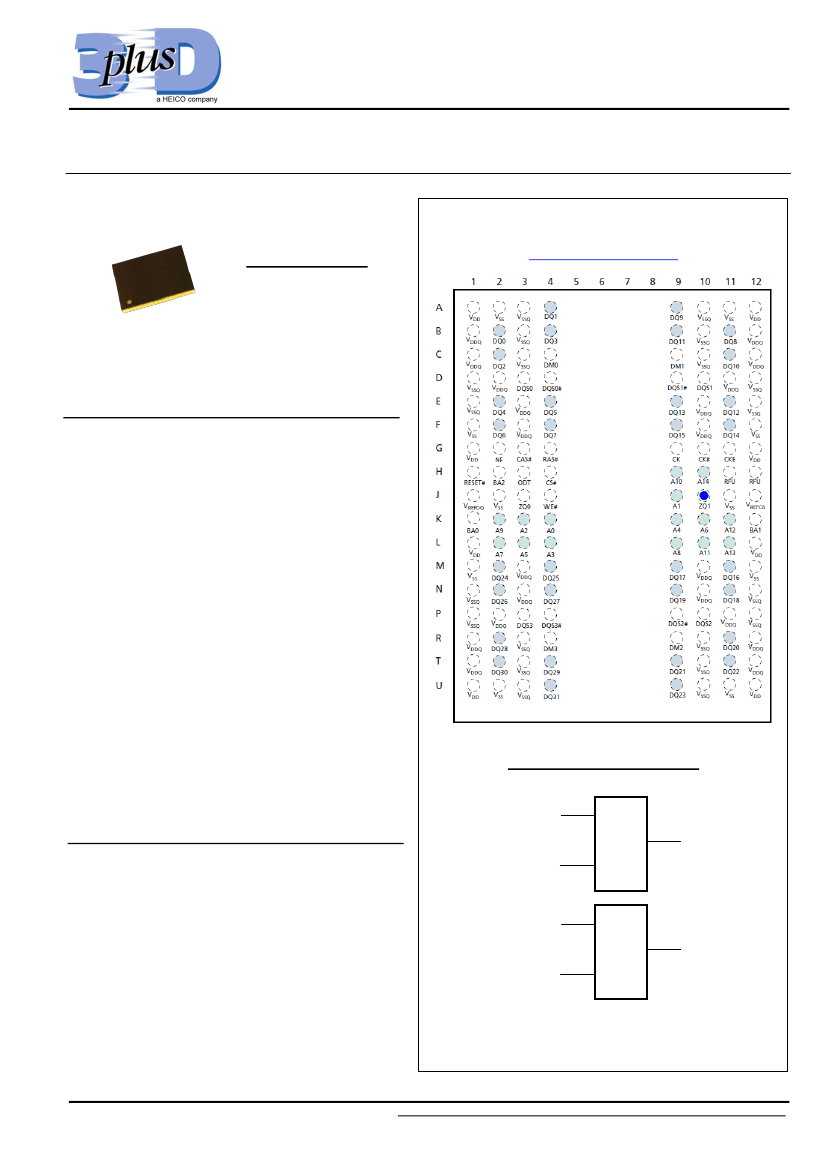

Pin Assignment (Top View)

Main applications:



Embedded Systems

Workstations

Servers

Super Computers

Test Systems

BGA 136 (Pitch : 0.80 mm)

Features and Benefits

-

JEDEC-standard ball-out

Combines two 4Gb x16 devices in one package

Vdd=VddQ = +1.35V, backward compatible to

1.5V operation

Differential bidirectional data strobe

8n-bit prefetch architecture

8 internal banks per memory

Nominal and dynamic on-die termination

Programmable CAS latency

Posted CAS additive latency

Fixed burst lengths of 8 and burst chp (BC) of 4

Selectable BC4 or BL8 on-the-fly

Self refresh mode

Write leveling

Multipurpose register

Output driver calibration

Clock rate available : 1066, 1333 and 1600 Mbps

Commercial, Industrial and Military temperature

range.

FUNCTIONAL Block Diagram

DM2

DQS2, DQS2#

DQ[23 :16]

DM0

DQS0, DQS0#

DQ[7 : 0]

DM1

DQS1, DQS1#

DQ[15 :8]

DM3

DQS3, DQS3#

DQ[31 : 24]

1

256Mx16

ZQ0

General description

3D Plus offers a new 8Gbit

DDR3 SDRAM

cube with a

compatible JEDEC standard footprint.

This product embeds 2 chips with a capacity of 4Gb

(256Mx16) each.

Our products are available at 1066, 1333 and 1600 Mbps in

Commercial, Industrial and Military temperature range.

Thanks to the high density patented technology the

memories are embedded in a small form factor device

without compromising electrical or thermal performance.

This device is ideal for high density memory applications

that require high speed transfer and compatibility with

standard servers and networking equipment.

DDR3 Memory Module

2

256Mx16

ZQ1

(All other signals are common to the devices)

PRELIMINARY

3D Plus SA reserves the right to cancel product or specifications without notice

3DFP-0496-REV 1 - AUGUST 2012

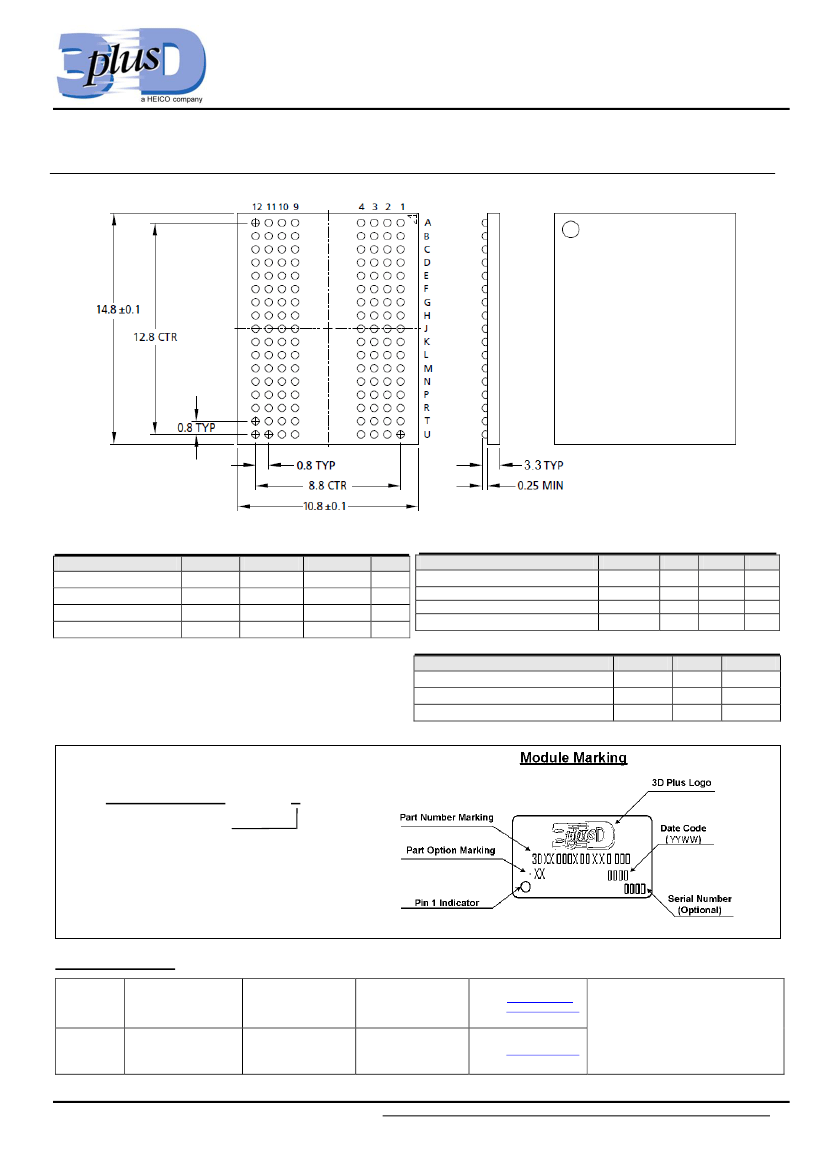

3D3D8G32YB2496I Related Products

	3D3D8G32YB2496I	3D3D8G32YB2496-C-H9	3D3D8G32YB2496-I-F8	3D3D8G32YB2496-I-H9	3D3D8G32YB2496-M-H9	3D3D8G32YB2496C	3D3D8G32YB2496CN-00	3D3D8G32YB2496IBH-00	3D3D8G32YB2496MS-00
Description	DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136	DRAM	DRAM	DRAM	DRAM	DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136	DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136	DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136	DDR DRAM, 256MX32, CMOS, PBGA136, BGA-136
Objectid	1329860106	114111909	114111907	114111910	114111911	1329860105	1842937402	1842937466	1842937404
package instruction	FBGA,	,	,	,	,	FBGA,	FBGA,	FBGA,	FBGA,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	MULTI BANK PAGE BURST	-	-	-	-	MULTI BANK PAGE BURST	MULTI BANK PAGE BURST	MULTI BANK PAGE BURST	MULTI BANK PAGE BURST
Other features	ALSO OPERATES AT 1.5V; SELF REFRESH; SEATED HGT-NOM	-	-	-	-	ALSO OPERATES AT 1.5V; SELF REFRESH; SEATED HGT-NOM	SELF REFRESH; SEATED HGT-NOM	SELF REFRESH; SEATED HGT-NOM	SELF REFRESH; SEATED HGT-NOM
JESD-30 code	R-PBGA-B136	-	-	-	-	R-PBGA-B136	R-PBGA-B136	R-PBGA-B136	R-PBGA-B136
length	14.8 mm	-	-	-	-	14.8 mm	14.8 mm	14.8 mm	14.8 mm
memory density	8589934592 bit	-	-	-	-	8589934592 bit	8589934592 bit	8589934592 bit	8589934592 bit
Memory IC Type	DDR DRAM	-	-	-	-	DDR DRAM	DDR DRAM	DDR DRAM	DDR DRAM
memory width	32	-	-	-	-	32	32	32	32
Number of functions	1	-	-	-	-	1	1	1	1
Number of ports	1	-	-	-	-	1	1	1	1
Number of terminals	136	-	-	-	-	136	136	136	136
word count	268435456 words	-	-	-	-	268435456 words	268435456 words	268435456 words	268435456 words
character code	256000000	-	-	-	-	256000000	256000000	256000000	256000000
Operating mode	SYNCHRONOUS	-	-	-	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	-	-	-	-	70 °C	70 °C	85 °C	125 °C
organize	256MX32	-	-	-	-	256MX32	256MX32	256MX32	256MX32
Package body material	PLASTIC/EPOXY	-	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	FBGA	-	-	-	-	FBGA	FBGA	FBGA	FBGA
Package shape	RECTANGULAR	-	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, FINE PITCH	-	-	-	-	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH
Maximum seat height	3.3 mm	-	-	-	-	3.3 mm	3.3 mm	3.3 mm	3.3 mm
self refresh	YES	-	-	-	-	YES	YES	YES	YES
Maximum supply voltage (Vsup)	1.45 V	-	-	-	-	1.45 V	1.45 V	1.45 V	1.45 V
Minimum supply voltage (Vsup)	1.283 V	-	-	-	-	1.283 V	1.283 V	1.283 V	1.283 V
Nominal supply voltage (Vsup)	1.35 V	-	-	-	-	1.35 V	1.35 V	1.35 V	1.35 V
surface mount	YES	-	-	-	-	YES	YES	YES	YES
technology	CMOS	-	-	-	-	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	-	-	-	-	COMMERCIAL	COMMERCIAL	INDUSTRIAL	MILITARY
Terminal form	BALL	-	-	-	-	BALL	BALL	BALL	BALL
Terminal pitch	0.8 mm	-	-	-	-	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	BOTTOM	-	-	-	-	BOTTOM	BOTTOM	BOTTOM	BOTTOM
width	10.8 mm	-	-	-	-	10.8 mm	10.8 mm	10.8 mm	10.8 mm
