Printed Circuit Board Connectors
High Performance
– These connectors feature gold-plated
TwistPin contacts for best performance. PC tails are .020 inch
diameter. Specify nickel-plated shells or cadmium plated shells for
best availability.
Solder-Dipped
– Terminals are coated with Sn60/Pb40 tin-lead
solder for best solderability. Optional gold-plated terminals are
available for RoHS compliance.
Rear Mountable
– Can be installed through panels up to .125 inch
thick. Specify rear panel mount jackposts.
Micro-D MWDM-BR
Right Angle Thru-Hole
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
THREADED
INSERT
Micro-D PCB
Sample Part Number
Series
MWDM
Glenair Micro-D
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
Shell Material and Finish
Insulator Material
Contact layout
Contact Type
Termination Type
Jackpost Option
Threaded Insert Option
Terminal length (Inches)
Gold-Plated
Terminal Mod Code
P
- Pin
S
- Socket
P
- Jackpost
BR
- Board Right Angle
Omit
for None
(See Table I)
T
- Threaded Insert In Board Mount Hole
No Designator
Thru-Hole
For use with Glenair jackposts only. Order hardware
separately. Install with threadlocking compound.
© 2013 Glenair, Inc.

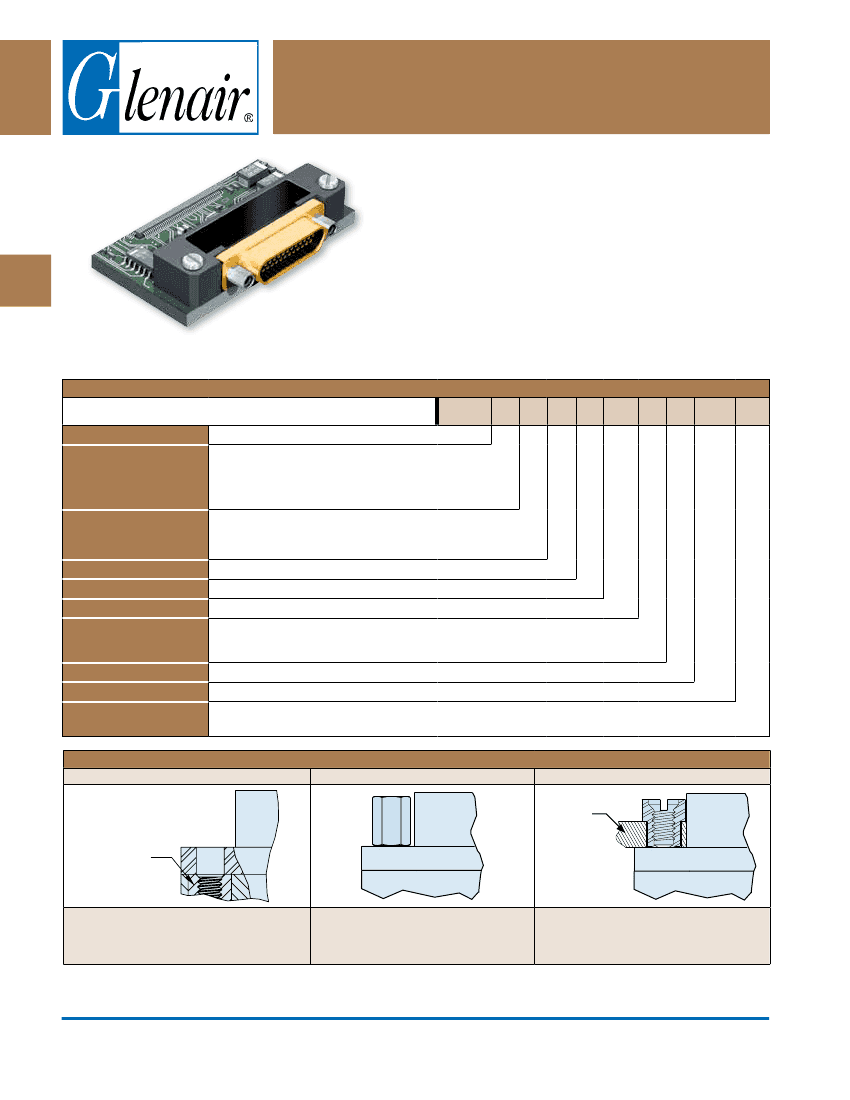

How To Order Micro-D BR Style Board Mount Connectors
MWDM
Stainless Steel Shell
3
- Passivated
2
l
-15
P
BR
R3
T
-.110
513
l
- LCP or PPS
LCP - 30% Glass-filled liquid crystal polymer
PPS - 40% Glass-filled polyphenylene sulfide
9, 15, 21, 25, 31, 37, 51, 100
(See Table II)
Printed Circu
Connect
Jackposts for Rear Panel Mounting
R1
- .032” Panel
R2
- .047” Panel
R3
- .062” Panel
R4
- .093” Panel
R5
- .125” Panel
R6
- .080" Panel
Omit - for Thru-Hole
.080, .110, .125, .140, .150, .172, .190, .250
Length in Inches ± .015 (0.38) (See Table II)
These connectors are solder-dipped in 60/40 tin-lead solder.
To delete the solder dip and change to gold-plated terminals, add code
513
Table I: Jackpost Options
P
Panel
R1 Thru R6
Standard Jackpost
Factory installed, not intended for removal.
Jackpost for Rear Panel Mounting
Shipped loosely installed. Install with permanent
threadlocking compund.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-10
E-Mail: sales@glenair.com
Printed Circuit Board Connectors
Table II: Dimensions
A
F
B
C
D
.020 (0.5) ± .002 (0.1
)
F
E
A
B
Tail Length
± .015 (0.38)
C
D
E
F
G
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
H
J
G
K
2 X PCB MTNG HOLES
9-51 CONTACTS .096 ± .005 (2.43 ± 0.13)
100 CONTACTS .125 ± .005 (23.18 ± 0.13)
uit Board
tors
A Max.
Layout
9P
9S
15P
15S
21P
21S
In.
1.390
1.390
1.540
1.540
1.690
1.690
1.790
1.790
2.040
2.040
2.340
2.340
1.875
1.875
2.780
2.780
mm.
35.31
35.31
39.12
39.12
42.93
42.93
45.47
45.47
51.82
51.82
59.44
59.44
47.63
47.63
70.60
70.60
B
In.
mm.
±.003 ± 0.08
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.215
1.215
1.800
1.800
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
30.86
30.86
45.72
45.72
C Max.
In.
.333
.400
.483
.551
.633
.701
.733
.801
.883
.951
1.033
1.101
.983
1.051
1.383
1.451
mm.
8.46
10.16
12.27
14.00
16.08
17.81
18.62
20.35
22.43
24.16
26.24
27.96
24.97
26.70
35.13
36.86
D Max.
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.228
.296
.270
.333
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
5.79
7.52
6.86
8.46
E Max.
In.
mm.
F
In.
mm.
±.007 ± 0.18
29.21
29.21
33.02
33.02
36.83
36.83
39.37
39.37
45.72
45.72
53.34
53.34
40.64
40.64
63.50
63.50
G Max.
In.
.465
.465
.465
.465
.465
.465
.465
.465
.465
.465
.465
.465
.565
.565
.765
.765
mm.
11.81
11.81
11.81
11.81
11.81
11.81
11.81
11.81
11.81
11.81
11.81
11.81
14.35
14.35
19.43
19.43
H
J
K
In.
mm.
In.
mm.
In.
mm.
±.003 ±0.08 ±.015 ±0.38 ±.010 ±0.25
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.225
.225
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
5.72
5.72
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
25P
25S
31P
31S
37P
37S
51P
51S
100P
100S
.310 7.87 1.150
.310 7.87 1.150
.310 7.87 1.300
.310 7.87 1.300
.310 7.87 1.450
.310 7.87 1.450
.310 7.87 1.550
.310 7.87 1.550
.310 7.87 1.800
.310 7.87 1.800
.310 7.87 2.100
.310 7.87 2.100
.351 8.92 1.600
.351 8.92 1.600
.394 10.01 2.500
.394 10.01 2.500
H
J
K
L
M
N
P
Q
INDEX
Performance Specifications
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Connector Shell
Insulator, Tray
Interfacial Seal
Pin Contact
Socket Contact
PCB Terminals
Hardware
Encapsulant
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
Materials and Finishes
Aluminum Alloy 6061 or Stainless Steel, 300 Series,
passivated. See Ordering Info for Plating Options
Liquid Crystal Polymer (LCP)/
Polyphenylene Sulfide (PPS)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Copper Alloy, Gold Over Nickel Plating
Gold Plated Copper Alloy, Solder Dipped
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-11
E-Mail: sales@glenair.com
Micro-D PCB
Micro-D MWDM-BR
Right Angle Thru-Hole
Printed Circuit Board Connectors
Micro-D MWDM-BR
Right Angle Thru-Hole
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
Micro-D PCB
1.150 (29.21)
.150 (3.81)
9
8
4
3

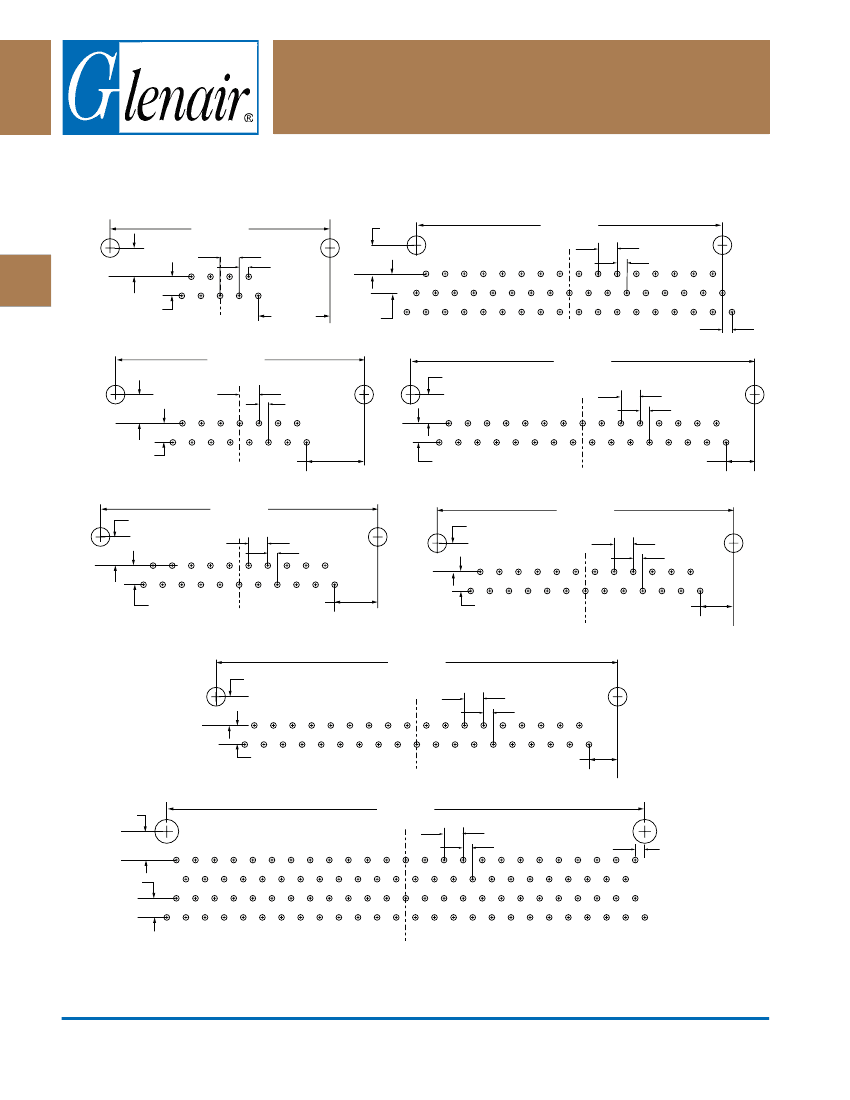

MICRO-D BR Board Mount Connector PCB layouts – Pin Connectors
Patterns shown are for connector mounting side of PC board. 9 Thru 51 Contacts .096 (2.44) Diameter Mounting Holes, 100 Pin .125 (3.18) Diameter
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
7
2
6
1
35
51
34
17
50
33
16
49
32
15
48
31
14
47
30
13
46
29
12
45
28
11
44
27
10
9
43
26
8
42
25
7
41
24
6
1.600 (40.64)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
40
23
5
39
22
4
38
21
3
37
20
2
36
19
1
C
L
.100 (2.54)
TYP
5
.375 (9.53)
.100 (2.54)
TYP
18
9 PIN
1.300 (33.02)
C
L
.150 (3.81)
15
14
7
6
13
5
12
4
11
3
51 PIN
1.800 (45.72)
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
10
2
9
1
16
31
15
30
14
29
13
28
12
27
11
26
10
25
9
.050 (1.27)
C
L
24
8
23
7
22
6
21
5
.100 (2.54) TYP
.050 (1.27) TYP
20
4
19
3
18
2
17
1
.100 (2.54)
TYP
8
.300 (7.62)
.100 (2.54)
TYP
.150 (3.81)
15 PIN
.150 (3.81)
1.450(36.8)
C
L
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
16
6
5
15
4
14
3
13
2
12
1
13
25
12
24
11
23
10
22
9
21
8
31 PIN
1.550 (39.37)
C
L
20
7
19
6
18
5
17
4
.100 (2.54) TYP
.050 (1.27) TYP
16
3
15
2
14
1
21
11
10
20
9
19
8
18
7
17
.100 (2.54)
TYP
.225 (5.72)
.100 (2.54)
TYP
.175 (4.45)
21 PIN
2.100 (53.34)
.150 (3.81)
C
L
37
19
18
36
17
35
16
34
15
33
14
32
13
31
12
30
11
29
10
28
9
27
8
26
7
25
6
25 PIN
.100 (2.54) TYP
.050 (1.27) TYP
24
5
23
4
22
3
21
2
20
1
.100 (2.54)
TYP
.150 (3.81)
37 PIN
.150 (3.81)
2.500 (63.50)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
100
99
74
50
25
24
49
23
98
73
48
22
97
72
47
21
96
71
46
20
95
70
45
19
94
69
44
18
93
68
43
17
92
67
42
16
91
66
41
15
90
65
40
14
89
64
39
13
88
63
38
12
87
62
37
11
86
61
36
10
85
60
35
9
84
59
34
8
83
58
33
7
82
57
32
6
81
56
31
5
80
55
30
4
79
54
29
3
.050
78
53
28
2
77
52
27
1
76
.100 (2.54)
TYP
51
26
75
100 PIN
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-12
E-Mail: sales@glenair.com
Printed Circuit Board Connectors

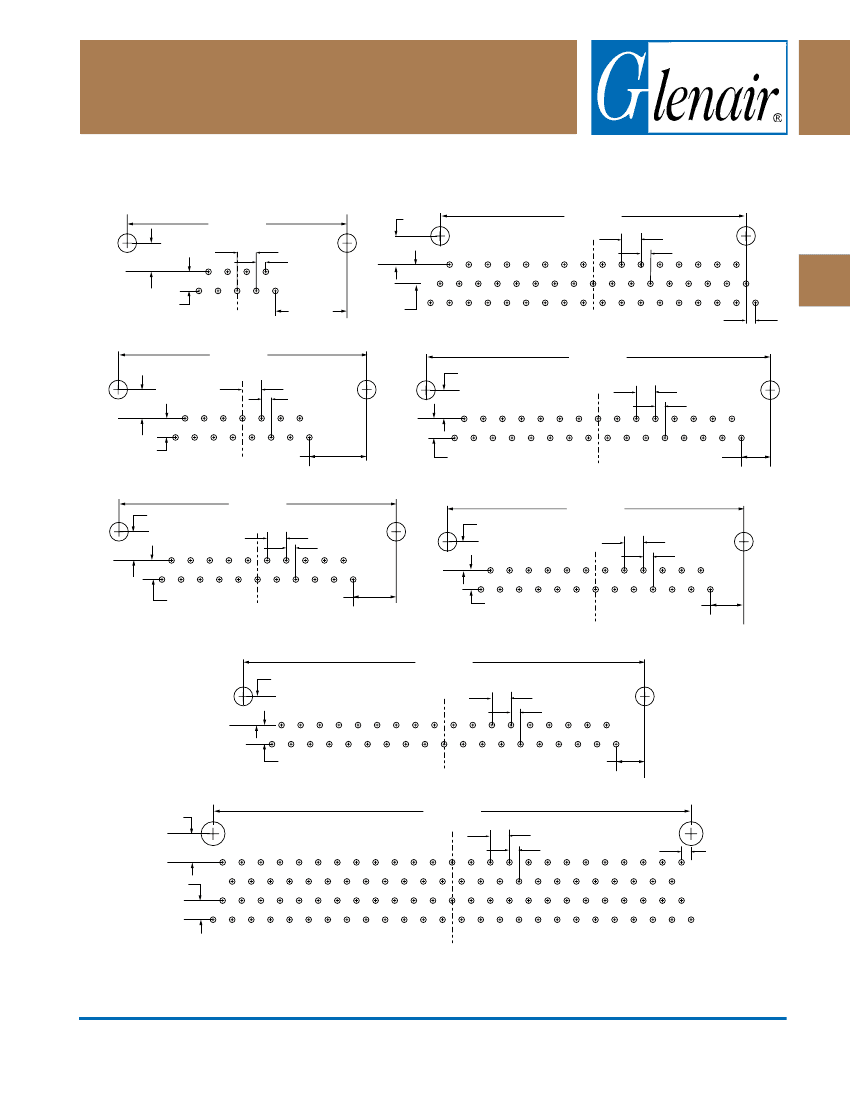

MICRO-D BR Board Mount Connector PCB layouts – Socket Connectors
Patterns shown are for connector mounting side of PC board. 9 Thru 51 Contacts .096 (2.44) Diameter Mounting Holes, 100 Pin .125 (3.18) Diameter
1.150 (29.21)
.150 (3.81)
6
7
2
3
A
B
C
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
1.600 (40.64)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
36
19
20
2
3
37
21
4
38
22
5
39
23
6
40
24
7
41
25
8
42
26
9
43
27
10
44
28
11
45
29
12
46
30
13
47
31
14
48
32
15
49
33
16
50
34
17
51
35
18
C
L
8
4
9
5
.100 (2.54)
TYP
1
.375 (9.53)
.100 (2.54)
TYP
1
9 SOCKET
1.300 (33.02)
C
L
.150 (3.81)
9
10
2
3
11
4
12
5
13
6
51 SOCKET
1.800 (45.72)
.150 (3.81)
.050 (1.27)
D
E
F
G
H
J
K
L
M
N
.100 (2.54) TYP
.050 (1.27) TYP
14
7
15
8
1
17
2
18
3
19
4
20
5
21
6
22
7
23
C
L
24
8
9
25
10
26
11
27
12
.100 (2.54) TYP
.050 (1.27) TYP
28
13
29
14
30
15
31
16
.100 (2.54)
TYP
1
.300 (7.62)
15 SOCKET
.150 (3.81)
1.450(36.8)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
17
6
7
18
8
19
9
20
10
21
11
.100 (2.54)
TYP
.150 (3.81)
31 SOCKET
1.550 (39.37)
.150 (3.81)
C
L
14
1
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
.100 (2.54) TYP
.050 (1.27) TYP
23
11
24
12
25
13
12
1
2
13
3
14
4
15
5
16
.100 (2.54)
TYP
.225 (5.72)
.100 (2.54)
TYP
.175 (4.45)
21 SOCKET
2.100 (53.34)
.150 (3.81)
C
L
20
1
2
21
3
22
4
23
5
24
6
25
7
26
8
27
9
28
10
29
11
30
12
31
13
32
14
25 SOCKET
.100 (2.54) TYP
.050 (1.27) TYP
33
15
34
16
35
17
36
18
37
19
.100 (2.54)
TYP
.150 (3.81)
37 SOCKET
.150 (3.81)
2.500 (63.50)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
.050
96
71
46
20
21
47
22
72
48
23
97
73
49
24
98
74
50
25
99
100
75
51
26
90
65
91
66
41
15
16
42
17
67
43
18
92
68
44
19
93
69
45
94
70
95
76
77
52
53
28
2
3
78
54
29
4
79
55
30
5
80
56
31
6
81
57
32
7
82
58
33
8
83
59
34
9
84
60
35
10
85
61
36
11
86
62
37
12
87
63
38
13
88
64
39
14
89
P
Q
Printed in U.S.A.
.100 (2.54)
TYP
27
1
40
100 SOCKET
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-13
E-Mail: sales@glenair.com
INDEX
Micro-D PCB
Micro-D MWDM-BR
Right Angle Thru-Hole
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
