SHEET 1 OF 1
n
22.00
[.866 in]
n
25.00
[.984 in]
n
18.00
[.709 in]

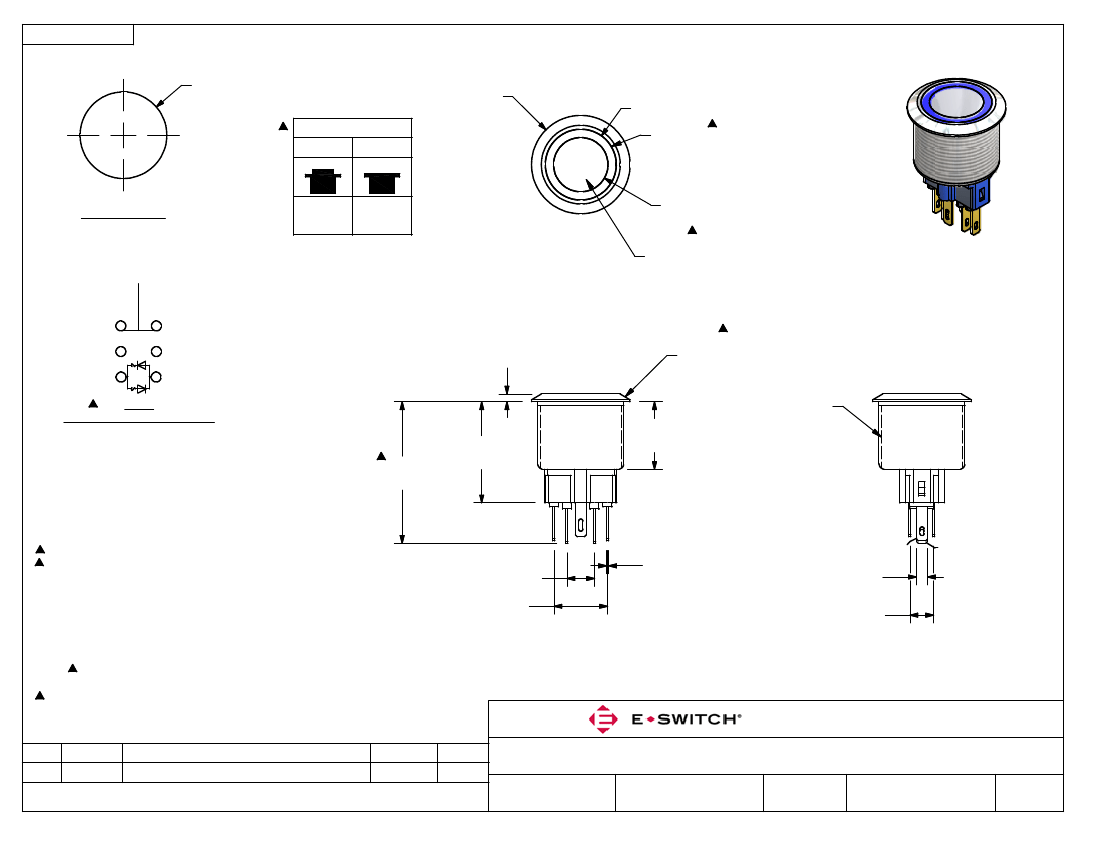

SWITCH FUNCTION
POS. 1
POS. 2
RING ILLUMINATION
PANEL CUTOUT
MAX. PANEL THICKNESS 8mm
1-2 ON
3-4 OFF
1-2 (OFF)
3-4 (ON)
n
13.80
[.543 in]
( ) = MOMENTARY
ACTUATOR COLOR:
STAINLESS STEEL
MACHINE FINISH
1
3
(-)
2
4
(+)
2.00
[.079 in]
BODY COLOR:
STAINLESS STEEL
MACHINE FINISH
DPST
CONTACT CONFIGURATION
25.70
`
.50
[1.012
`
.020
in]
17.20
[.677 in]
M22x1.0
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = ± 0.4
X.XX = ± 0.25
3. TERMINAL NOS. FOR REF. ONLY
4. FUNCTION: DPST
5. RATING: 2A @ 48VDC
6. ILLUMINATION VOLTAGE: 24V
7. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
8. INSULATION RESISTANCE: 1,000MΩ @ 500VDC
9. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE
10. ELECTRICAL LIFE: 50,000 CYCLES
11. OPERATING TEMPERATURE: -20°C TO 70°C
12. INGRESS PROTECTION: IP65
13. DENOTES CRITICAL PARAMETER
13. 2002/95/EC (ROHS) COMPLIANT
14. ILLUMINATION COLOR: BLUE (FORWARD), BLUE (REVERSE)
15. HARDWARE INCLUDED (NOT SHOWN) HEX NUT AND O-RING
36.00
`
.50
[1.417
`
.020
in]
3
1
(+)
2
4
7.00
[.276 in]
13.60
[.535 in]
.50
[.020 in]
6 PLACES
(+)
4
(-)
2
2.80
[.110 in]
6 PLACES
6.00
[.236 in]
A
REV
20863
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
11/5/12
DATE
EBP
BY
TITLE
PV7F2Y0SS-345
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
11/5/2012
EBP
52-PV7F2Y0SS345
A
