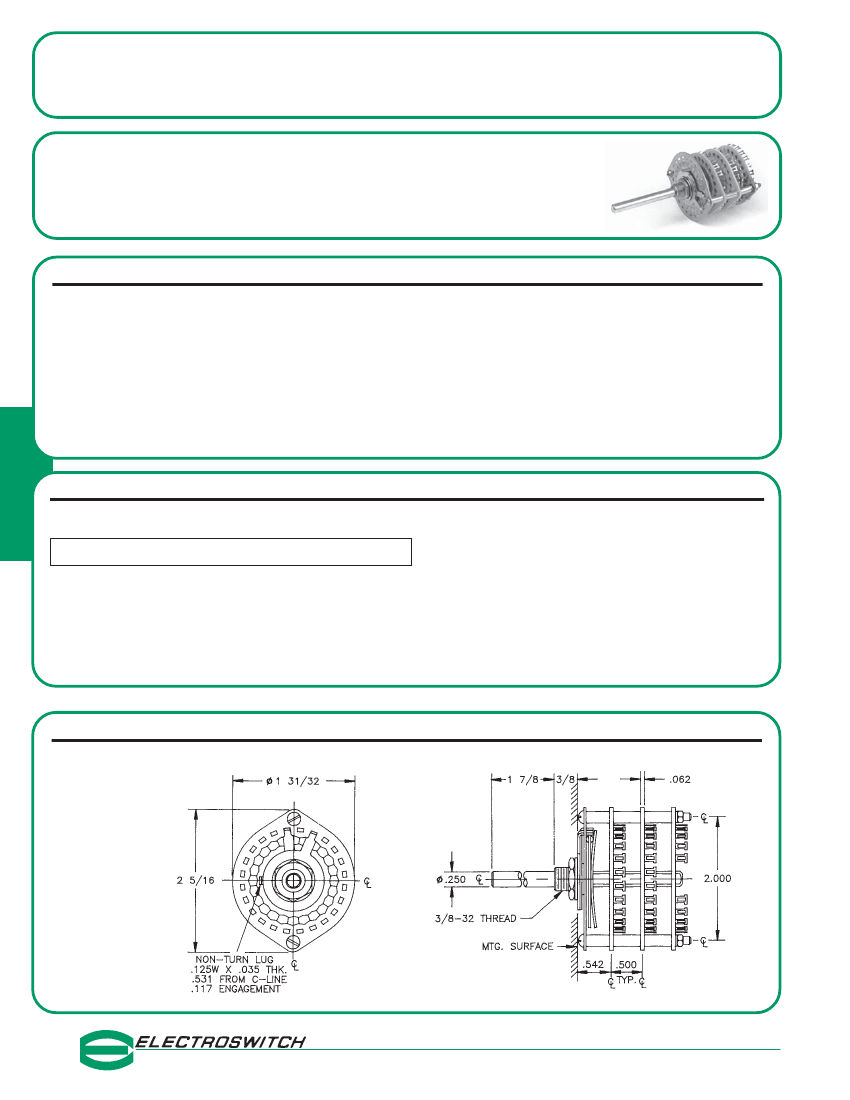

D9 - SERIES
2 5/16" DIAMETER
SPECIFICATIONS AND ORDERING INFORMATION
1.5 AMPS @ 28 VDC
The D9 Series has a 15° index with a maximum of 24 positions.
Indexing is provided by a dual-ball hill and valley design. Standard
features include solder lug terminals, adjustable stops and glass
epoxy insulation.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
1.5 amps @ 28 VDC; 0.25 amp @ 115 VAC.
Current Carrying Capacity:
9 amps.
Dielectric Strength:
1,000 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 5 milliohms.
Insulation Resistance:
In excess of 750,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Clips and Rotors:
Brass with silver plate as standard.
Insulation:
Glass epoxy.
Index:
Dual-ball, hill and valley design.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 15° standard.
Index Stops:
Adjustable standard, fixed or continuous.
Stop Strength:
25 in. lbs. minimum.
D
STANDARD PART NUMBER
GLASS EPOXY INSULATION
SWITCHES - 15° INDEXING
ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.
ACTIVE
POLES/
NO. OF
POLES POSITIONS SECTION SECTIONS
01
02
03
04
05
06
07
08
02-23
02-23
02-23
02-23
02-23
02-23
02-23
02-23
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
SHORTING
D9G0123S
D9G0223S
D9G0323S
D9G0423S
D9G0523S
D9G0623S
D9G0723S
D9G0823S
NON-
SHORTING
D9G0123N
D9G0223N
D9G0323N
D9G0423N
D9G0523N
D9G0623N
D9G0723N
D9G0823N
FIG.
*
DU
DU
DU
DU
DU
DU
DU
DU
* FIGURES ARE SHOWN ON PAGE 57.

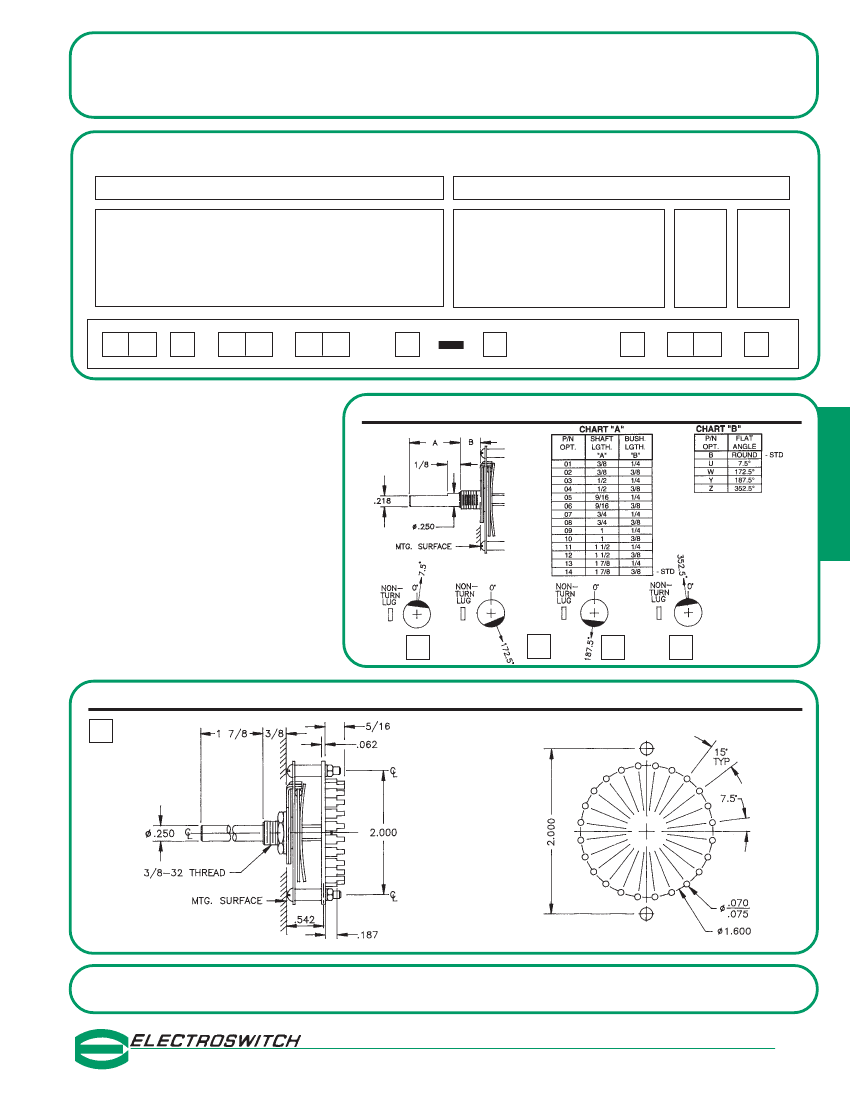

DIMENSIONS
STANDARD CONSTRUCTION
D9G
- GLASS EPOXY
CONSTRUCTION
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
34
ADDITIONAL OPTIONS AND ORDERING INFORMATION
D9 - SERIES
INDEX
ANGLE
STOP
TYPE
A - ADJ.
F - FIXED
C - CONT.
SEE
CHART
“A”
SEE
CHART
“B”
SHAFT/
BUSHING
SHAFT
FLAT
How to Order Additional Options:
2 DIGIT
SERIES
D9
INSULATION
TYPE
G - GLASS
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
24 - MAX @ 15°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
TERMINAL
TYPE
L - SOLDER LUG
R - REAR P.C.
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
D
9
G
(SPECIFY)
(SPECIFY)
(SPECIFY)
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
D
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
U
PRINTED CIRCUIT BOARD OPTIONS
W
Y
Z
R
P.C. BOARD MOUNTING PATTERN
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
35
