ATC HVR Series Resistors
Features:
• EIA 0402 Case Size
• Power Rating: 125 mW
• Operating Temperature:
-40°C to +125°C
• 100% Laser Trimming for
Tight Tolerances

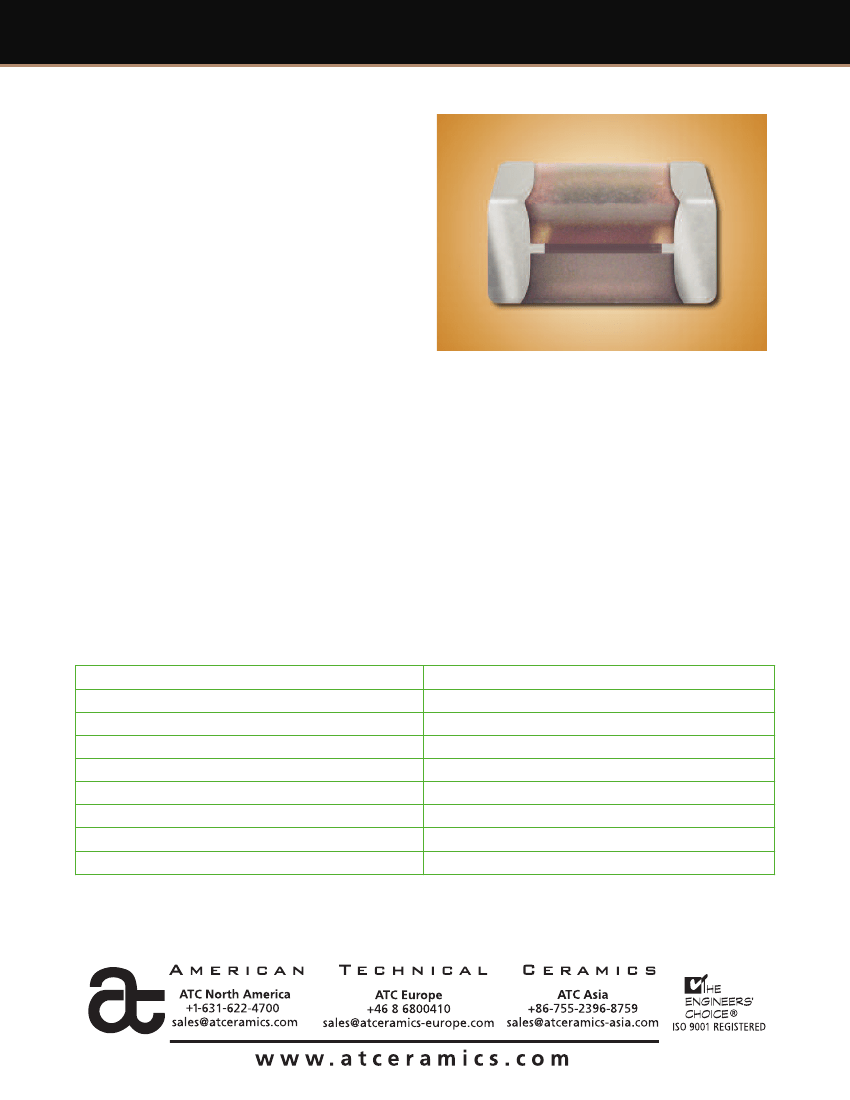

ATC // AVX Thin Film Technologies is pleased to introduce
the HVR Series next generation of surface mount High
Value Resistors. This product was designed with our pro-
prietary Glass Sandwich Flexiterm® Technology, (GSFT).
The Flexiterm® is a surface mountable automotive qual-
ified termination that adds an extra margin against
damage due to flexture during installation.
The HVR Series has been designed with high quality
selected materials that yield excellent performance.
This product is ideal for use in applications requir-
ing surface mountable small outline EIA resistors.
Applications:
• Multi Chip Module (MCM)
• Bias Networks
• Test and Measurement Equipment
• Aerospace
• Medical
• Automotive
Specifications
Resistor
Outline
Package
Maxiumum Voltage
Resistance Value Range
Termination
Power Rating
Operating Temperature Range
Tolerances
Detail
EIA 0402
Glass wafer sandwich
1 KV
From 2.2 MΩ to 20 MΩ
Flexiterm® (Ag/Epoxy), plated
125 mW
-40°C to +125°C
1%, 5%
ATC # 001-1110
Rev A, 5/12
AT C H V R S E R I E S R E S I S T I V E P R O D U C T S
Resistor Material Properties
Resistor Material (SiCr): Properties
Sheet Resistance
(Ohms per Square)
300 to 1300
TCR ppm/°C
±50, ±100
COVER GLASS
FLEX TERMINATION (Ag EPOXY)
PLATED WITH Ni / Sn

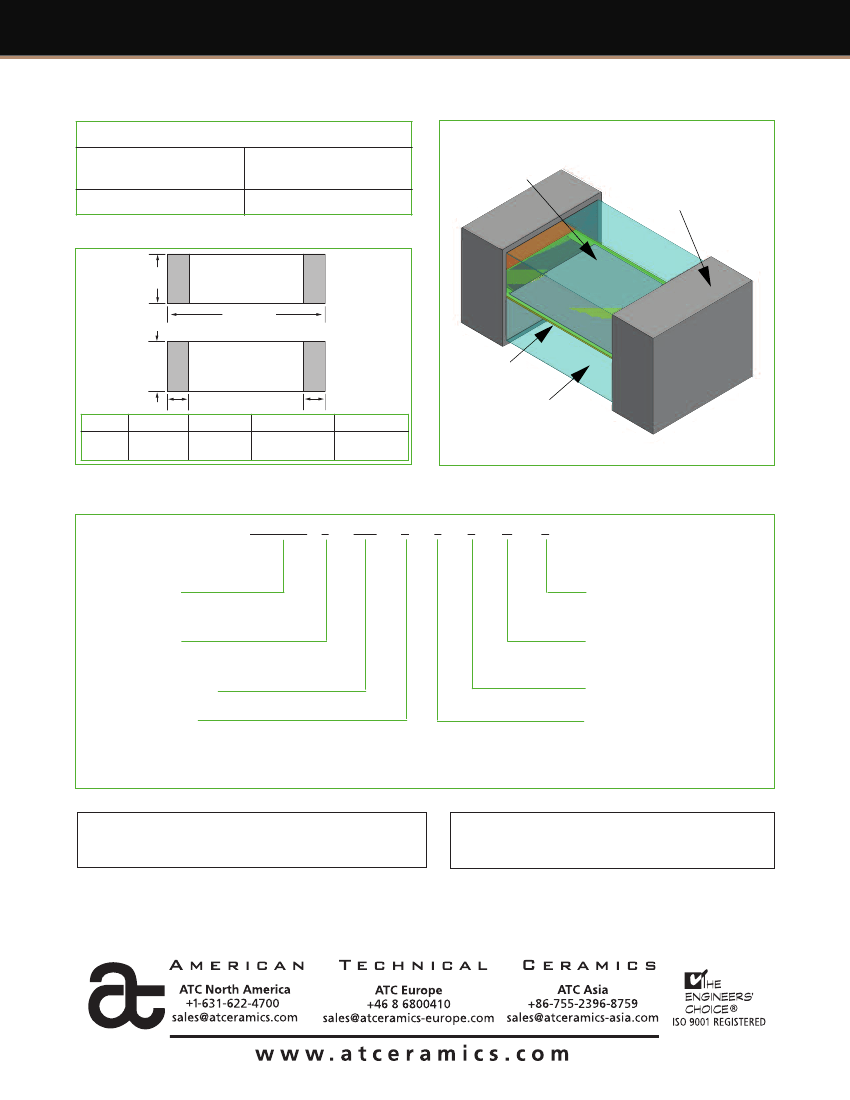

Mechanical Dimensions
W
L
T
EPOXY
t
t
GLASS SUBSTRATE
Size (EIA)
0402
Length (L)
Width (W)
.039 ±.004 .020 ±.004
(1.00 ±0.10) (0.50 ±0.10)
Thickness (T)
.020 ±.004
(0.50 ±0.10)
Terminal (t)
.010 ±.006
(0.25 ±0.15)
inches (mm)
ATC Part Number Code
ATC HVR
L
220
4
F
T
D
T
Series
Packaging: T = Tape & Reel
Temperature Coefficient
of Resistance (TCR - ppm/°C)
D = ±50, E = ±100
Termination: T = NiSn Plated
Tolerance
F = 1%, J = 5%
Case Size
Resistance Value (Ω)
3 significant digits
R = decimal point
Multiplier
The above part number refers to a HVR Series (case size L), 2.2 M-Ohms, F tolerance (1%), NiSn Plated, with a TCR of ±50 ppm/ºC,
with Tape and Reel Packaging.
ATC accepts orders for our parts using designations
with
or
without
the “ATC” prefix. Both
methods of defining the part number are equivalent, i.e., part numbers referenced with the
“ATC” prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are
free to use either in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at +1-631-622-4700.
Consult factory for additional performance data.
